5 Mounting / Installation
5.1 Required space
● Upon insertion of the detector, the detector base is stressed by compression,
tension and torsion. The fixing must thus be designed accordingly.
● Detector bases must be placed flat on the ceiling.
● Avoid mounting on steps, concrete ribs, etc.
● Install the detector base directly on the recessed box, or together with a base
attachment, when the supply lead is surface-mounted and the cable diameter is
more than 6 mm.
● There must be at least 50 cm below and at least 2 cm of free space to the
sides of the detector, so that the detector can be removed or tested with the
detector exchanger and tester.
● Contorted detector bases complicate or even impede the insertion of the
detectors with the detector exchanger.

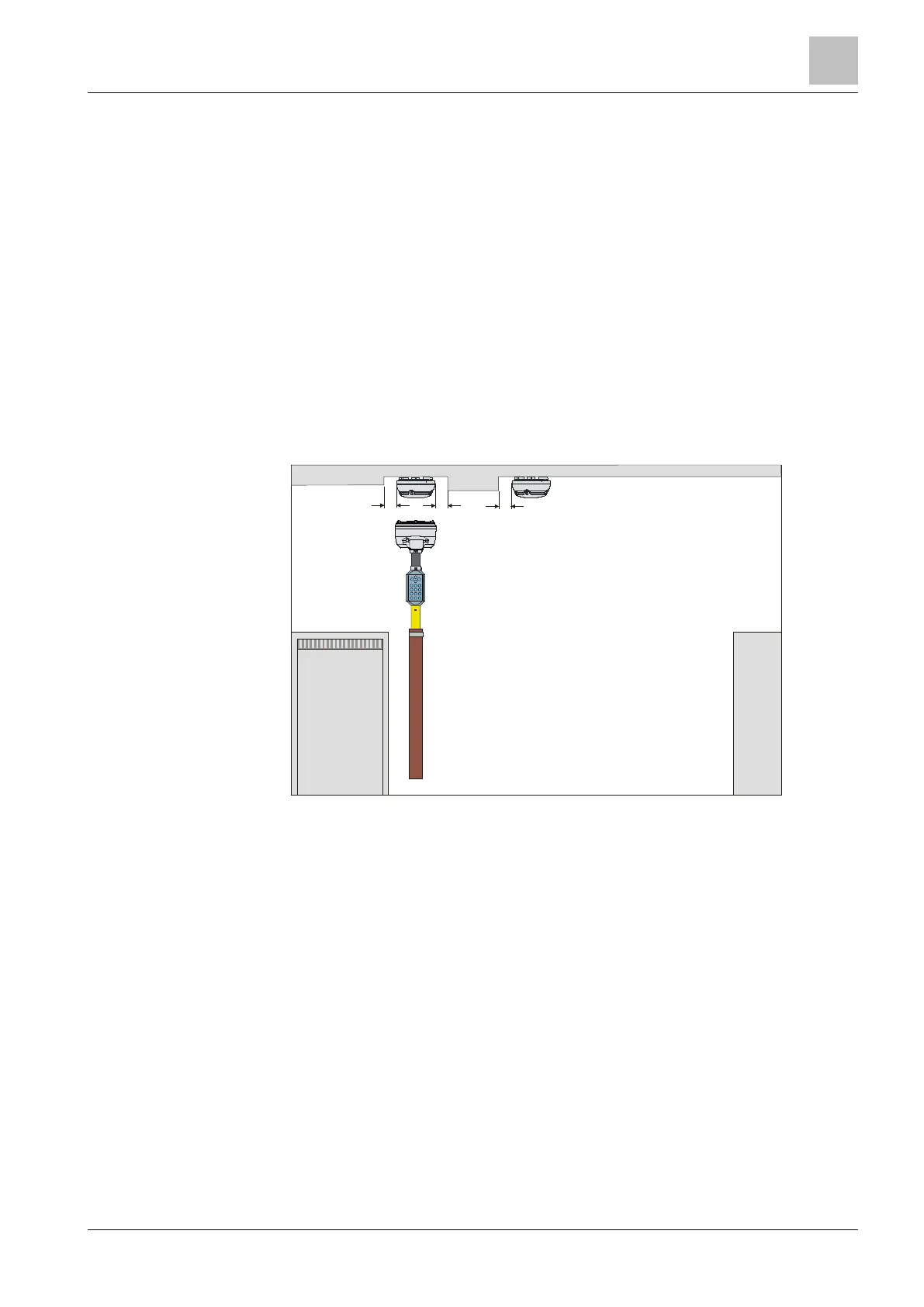

Minimum spacing when installing detector bases
