5.2 Collective and addressable detector base
FDB201/221
● Route the recess-mounted cable or surface-mounted cable with an outer
diameter of max. 6 mm directly into the detector base.
● Ensure that the cables are flat on the bottom of the detector base. This way,
they do not pose an obstruction when inserting the detector.

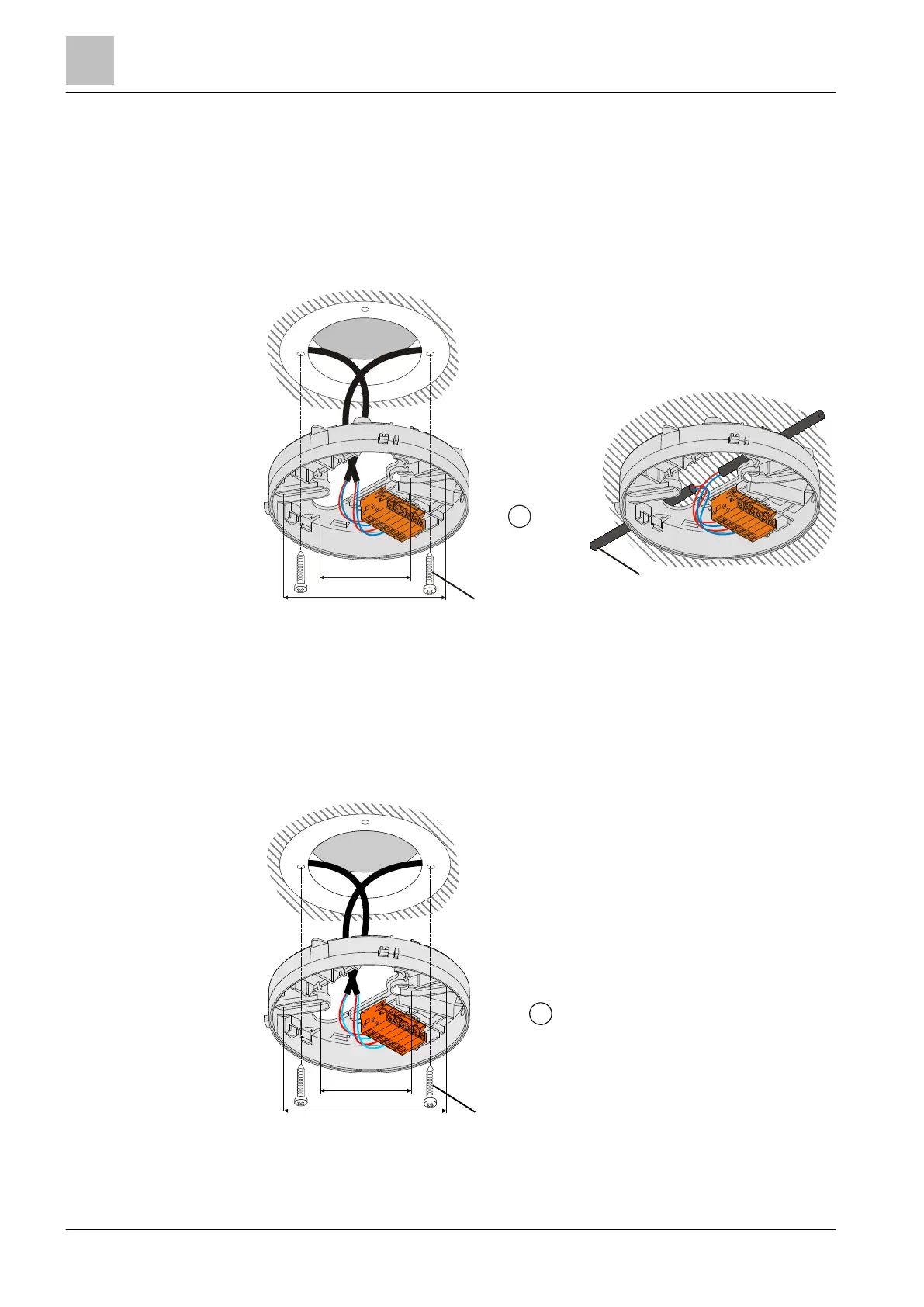

Mounting of detector bases FDB201/FDB201-AA and FDB221/FDB221-AA
1 Detector base
5.3 Flat detector base FDB202/222
● The cables are routed recess-mounted through detector base FDB202/222.
● The cables must be placed flat on the bottom of the detector base so that they
do not hamper insertion of the detector.
Mounting of detector base FDB202/FDB222
1 Detector base
FDB201/FDB221
FDB201-AA/
FDB221-AA
max. 4mmØ
max. 6mmØ
min. 46
max. 79
1
FDB202/FDB222
max. 4mmØ
min. 46
max. 79
1
