5.7 Base attachment FDB291
● For cable diameters larger than 6 mm, the base attachment FDB291 is
required.
● The required cable entries must be broken out on the base attachment
FDB291.

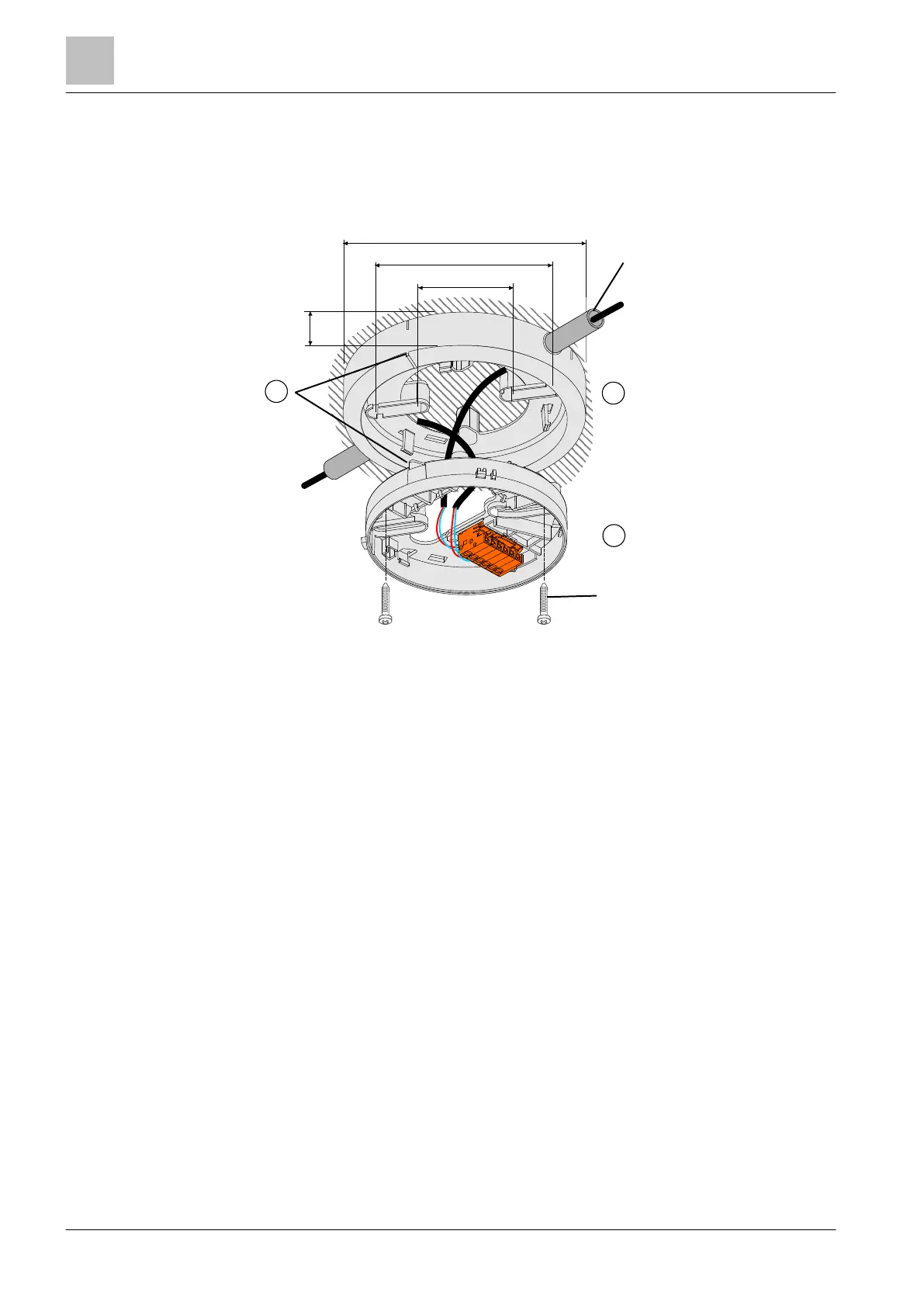

Mounting of detector base on base attachment FDB291
1 Identification 3 Detector base
2 Base attachment
119
25
max. 90
min. 46
max. Ø 4mm
FDB291
max. Ø 21mm
FDB2x1
FDB2x1-AA
FDB2x2
