5.15 Designation plate FDBZ291
To provide the detector with a location address, the address is inscribed on the
designation plate FDBZ291 and placed on the detector base or base attachment.

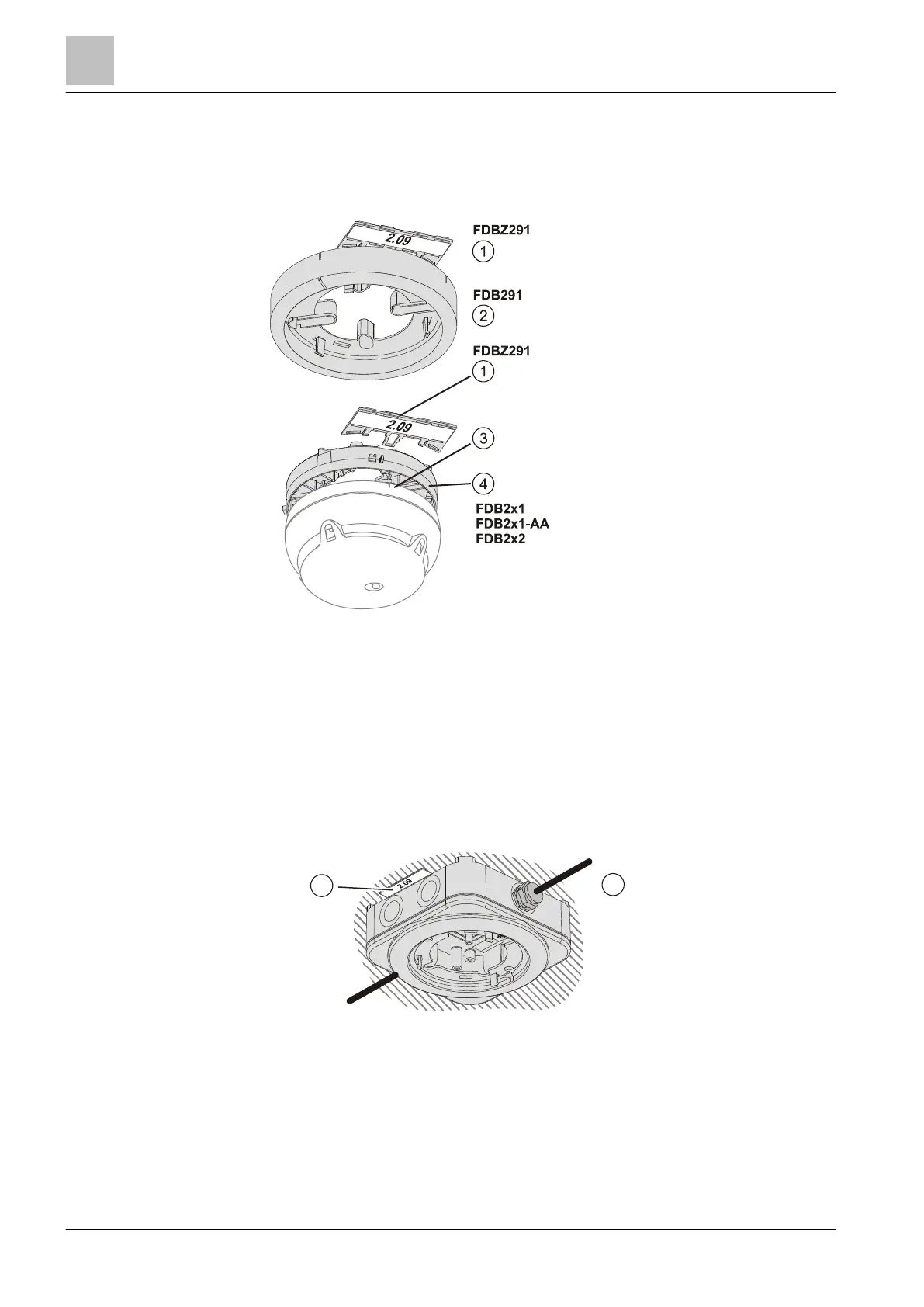

Mounting of designation plate FDBZ291
1 Designation plate FDBZ291 3 Identification
2 Base attachment FDB291 4 Detector base
5.16 Designation plate DBZ1193A
To identify a detector on a base attachment humid, the designation plate
DBZ1193A is labeled and placed on the base attachment humid FDB293 or base
attachment wet FDB295.
Mounting of designation plate DBZ1193A
1 Designation plate DBZ1193A 2 Base attachment humid FDB293 or
Base attachment wet FDB295
