IPC477 overview

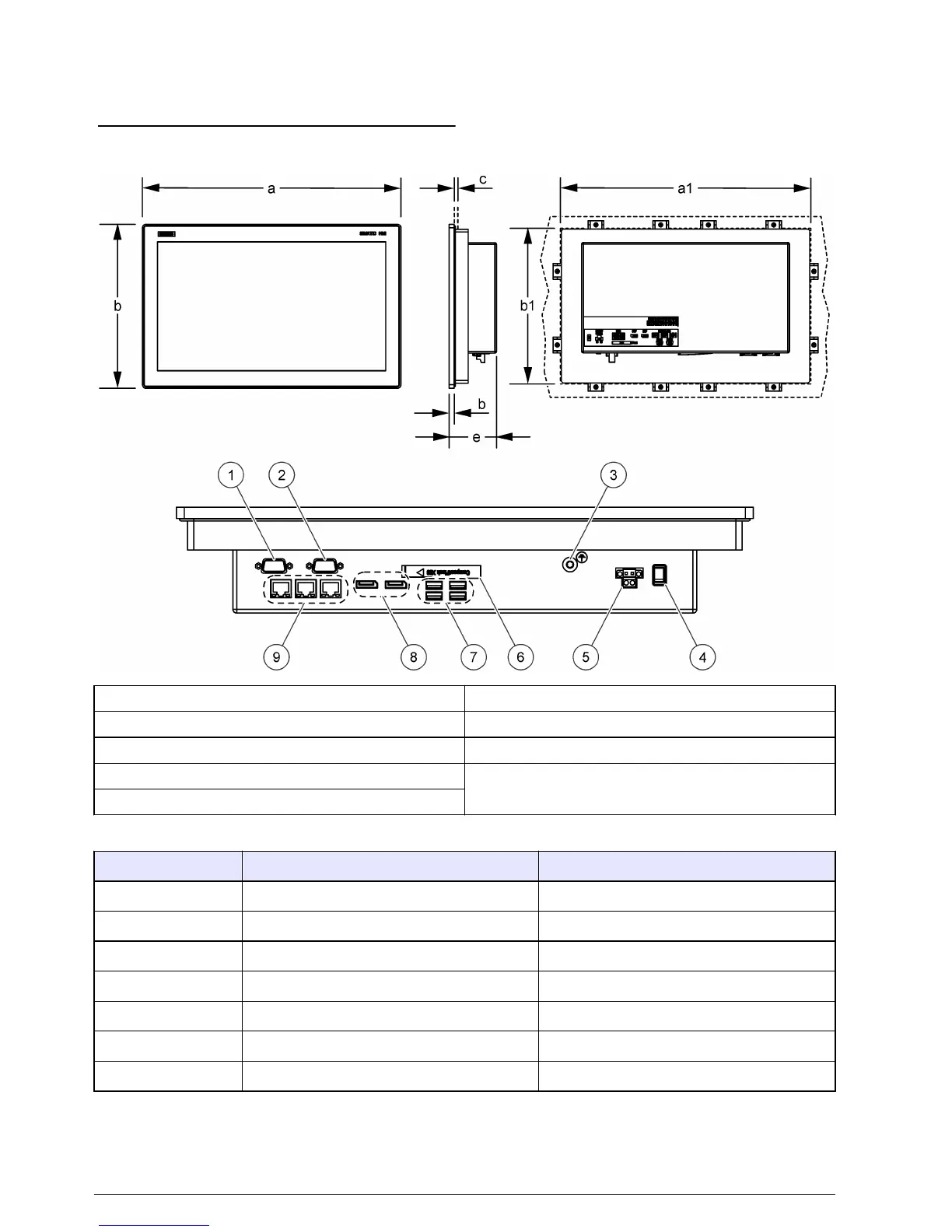

Figure 2 shows the IPC477 XX" overview and connectors. Refer to Table 1 for the dimensions and
cut out dimensions for the IPC477 XX".
Figure 2 IPC477 dimensions and connectors
1 COM2 serial connector (optional) 6 CFast card slot with cover
2 COM1 serial connector (optional) 7 USB connector (4x)
3 Protective earth connector 8 Display connector (2x)
4 On / Off switch 9 RJ45 Ethernet connector (3x)
5 Power supply, 24 VDC
Table 1 IPC477 XX" dimensions
Dimension IPC477 15" Multi-Touch IPC477 19" Multi-Touch
a 398 mm (15.66 in.) 477 mm (18.78 in.)
b 257 mm (10.11 in.) 294 mm (11.57 in.)
c 2–6 mm (0.08–0.24 in.) 2–6 mm (0.08–0.24 in.)
d 6.2 mm (0.24 in.) 6.2 mm (0.24 in.)
e 84.9 mm (3.34 in.) 84.9 mm (3.34 in.)
a1 (cut out) 382 mm (15.0 in.) 448 mm (17.6 in.)
b1 (cut out) 241 mm (9.5 in.) 278 mm (11.0 in.)
