Siemens IPC427 - IPC477 Mounting

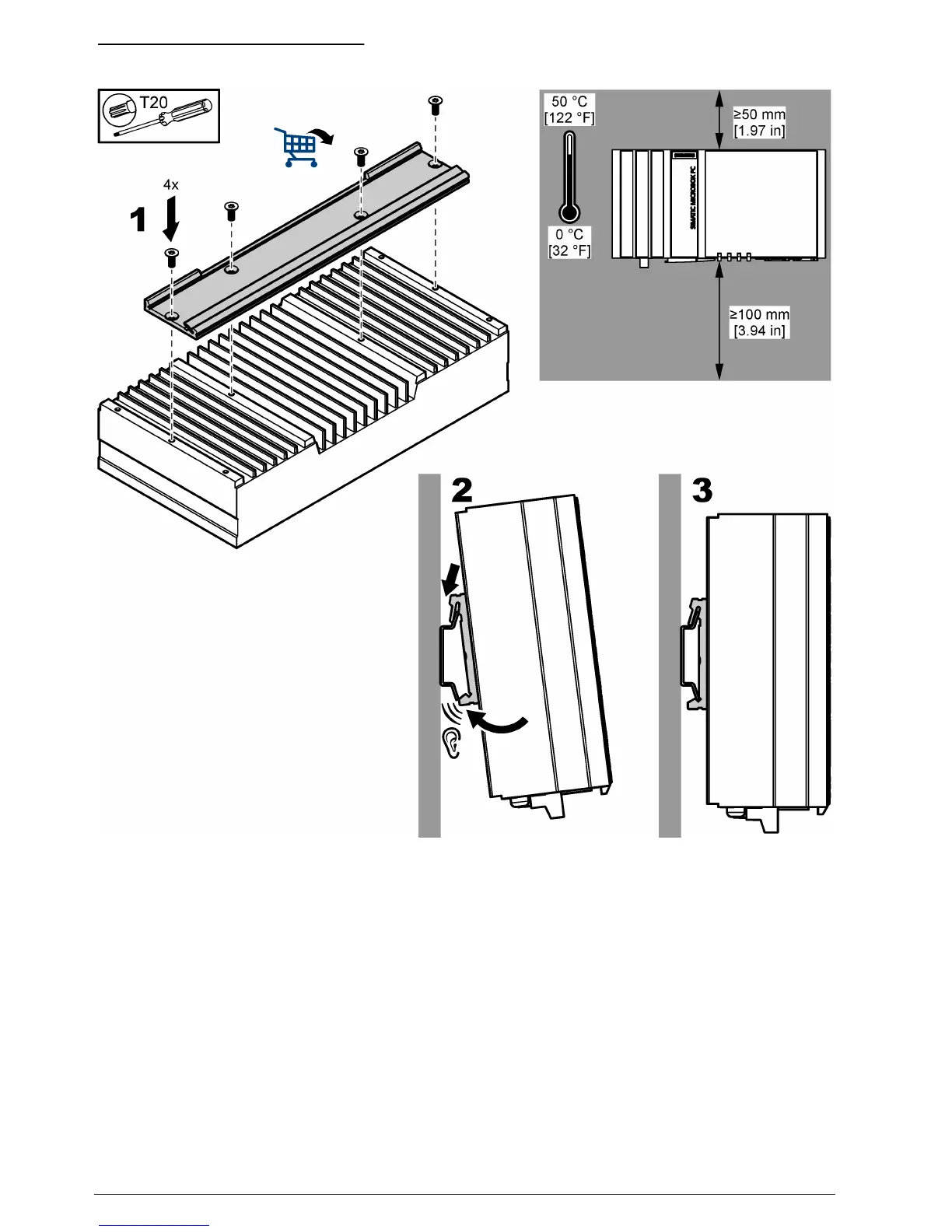

Figure 3 Installation on a DIN rail
IPC477 mounting
Make an opening in the control cabinet. For the correct cut out dimensions, refer to Table 1
on page 6. To install the IPC477 XX" in the control cabinet, refer to the illustrated steps that follow
and Figure 4.
8
English
