en Installation instructions
40
2.

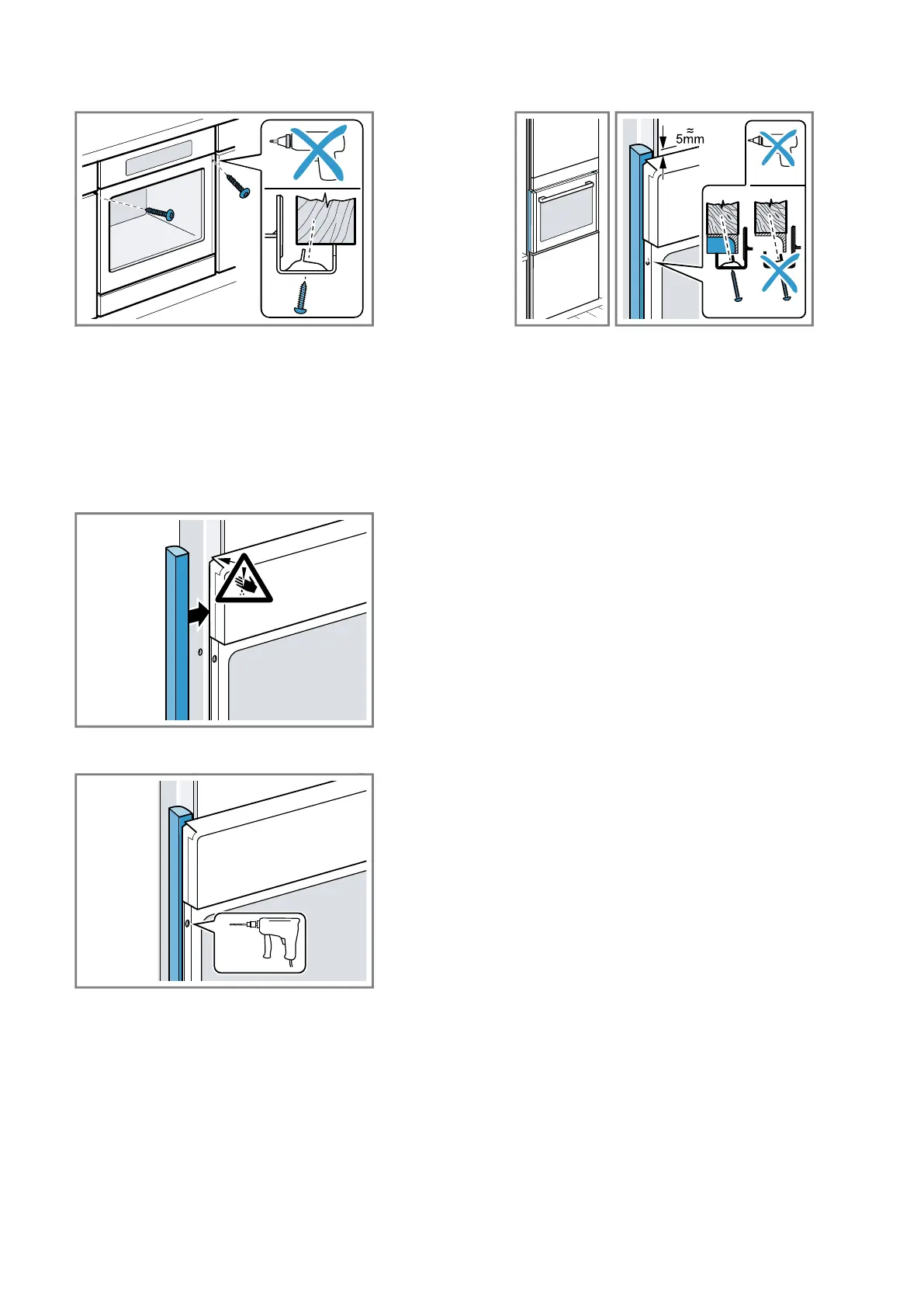

Screw the appliance into place.
Note:The gap between the worktop and the appliance
must not be closed by additional battens.
Thermal insulation strips must not be fitted to the side
panels of the surround unit.
28.10 For handleless kitchens with vertical
bar handle strips:
1.
Attach a suitable filling piece in order to cover any
sharp edges and to guarantee a safe installation.
2.
Pre-drill aluminium profiles to establish a screw con-
nection.
3.
Secure the appliance using a suitable screw.
28.11 Removing the appliance
1.
Disconnect the appliance from the power supply.
2.
Undo the fastening screws.
3.
Lift the appliance slightly and pull it out completely.
