Siemens LC97BCP50 User Manual

en Installation instructions
12
INSTALLATION INSTRUCTIONS
Instal l ation i nst r uct i ons Installation instructions

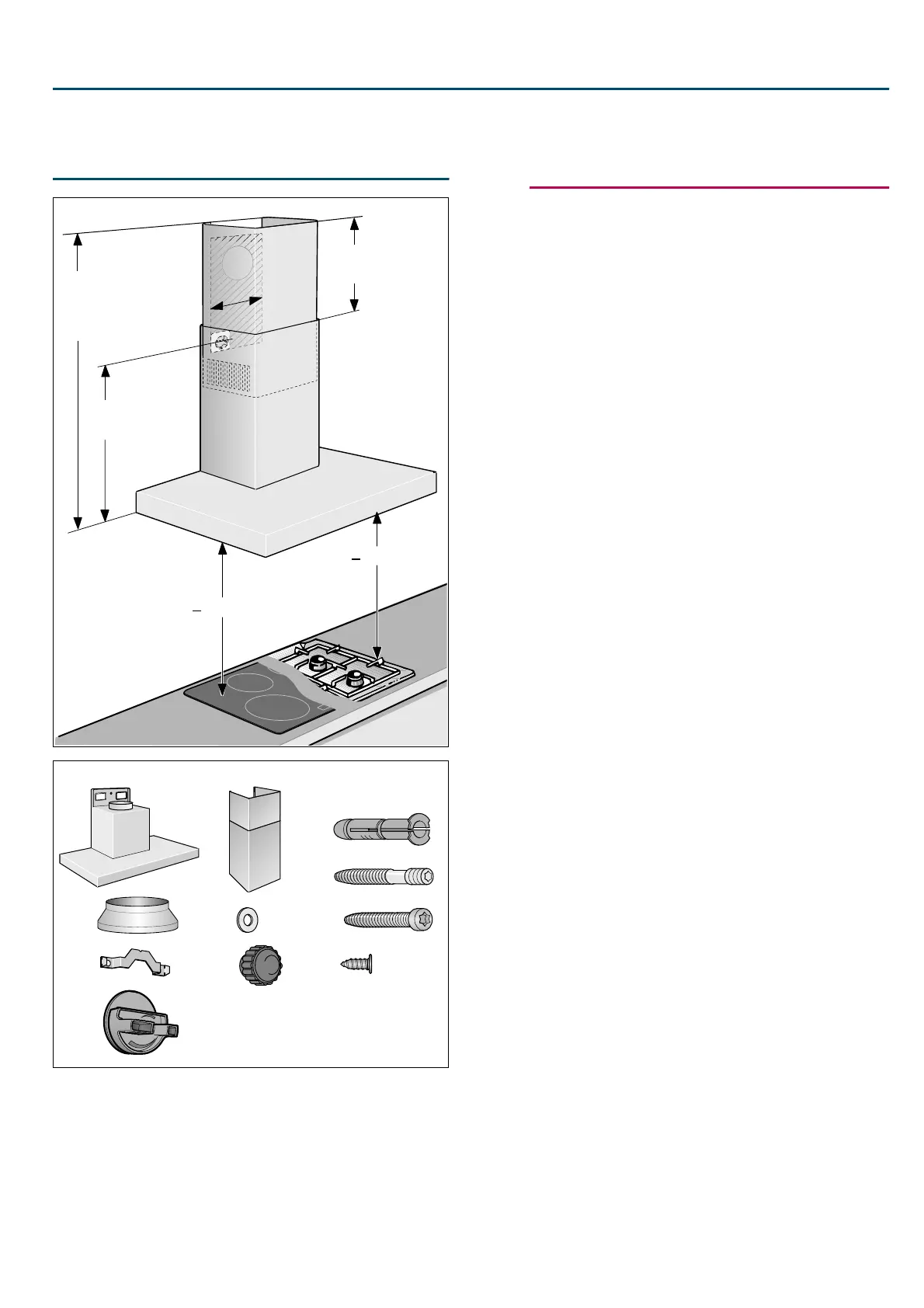

■ This appliance is installed on the wall.
■ Check the position of the screws using the enclosed
template.
■ Follow the enclosed installation instructions for
additional special accessories (e.g. for circulating-air
mode).
■ The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
(Important safety
information
Impor t ant saf et y informat i on Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
The surfaces of the appliance are easily
damaged. Avoid damaging them during
installation.
The width of the extractor hood must
correspond at least with the width of the hob.
For the installation, observe the currently valid
building regulations and the regulations of the
local electricity and gas suppliers.
:Warning – Risk of fire!
■ Fatty deposits in the grease filter may catch
fire. The specified safety clearances must
be complied with in order to prevent a build-
up of heat. Refer to the information
provided for your cooker. If gas and electric
hobs are being operated together, the
largest specified clearance applies.
Risk of fire!
■ Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
When conveying the exhaust air, official and
legal regulations (e.g. state building
regulations) must be followed.
PLQ
PP
PD[
PP
PLQ
PP
PP
PLQ
PP
PP
PP
!
!
[
[
[
[
[
[
[
[
[

Siemens LC97BCP50 Specifications

General

Noise level	55 dB
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	43 dB
Maximum extraction power	690 m³/h
Maximum recirculating power	380 m³/h
Noise level (intensive speed)	66 dB
Fluid dynamic efficiency class	A
Noise level (recirculation mode)	70 dB
Grease filtering efficiency class	B
Type	Wall-mounted
Cord length	1.3 m
Control type	Touch
Product color	Stainless steel
Built-in display	No
Exhaust connection diameter	150 mm
Bulb type	LED
Bulb power	1.5 W
Illuminance	373 lx
Number of bulbs	3 bulb(s)
Current	10 A
Motor power	140 W
Connected load	145 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	30 kWh
Number of filters	1 pc(s)
Grease filter type	Aluminum

Weight and Dimensions

Depth	500 mm
Width	898 mm
Height	628 mm
Weight	18400 g
Height (max)	1139 mm
Height (min)	809 mm
Height without chimney	46 mm
