Example: Setup client with HMI-Advanced
1. Select the menu "Configuration" and "Function keys".

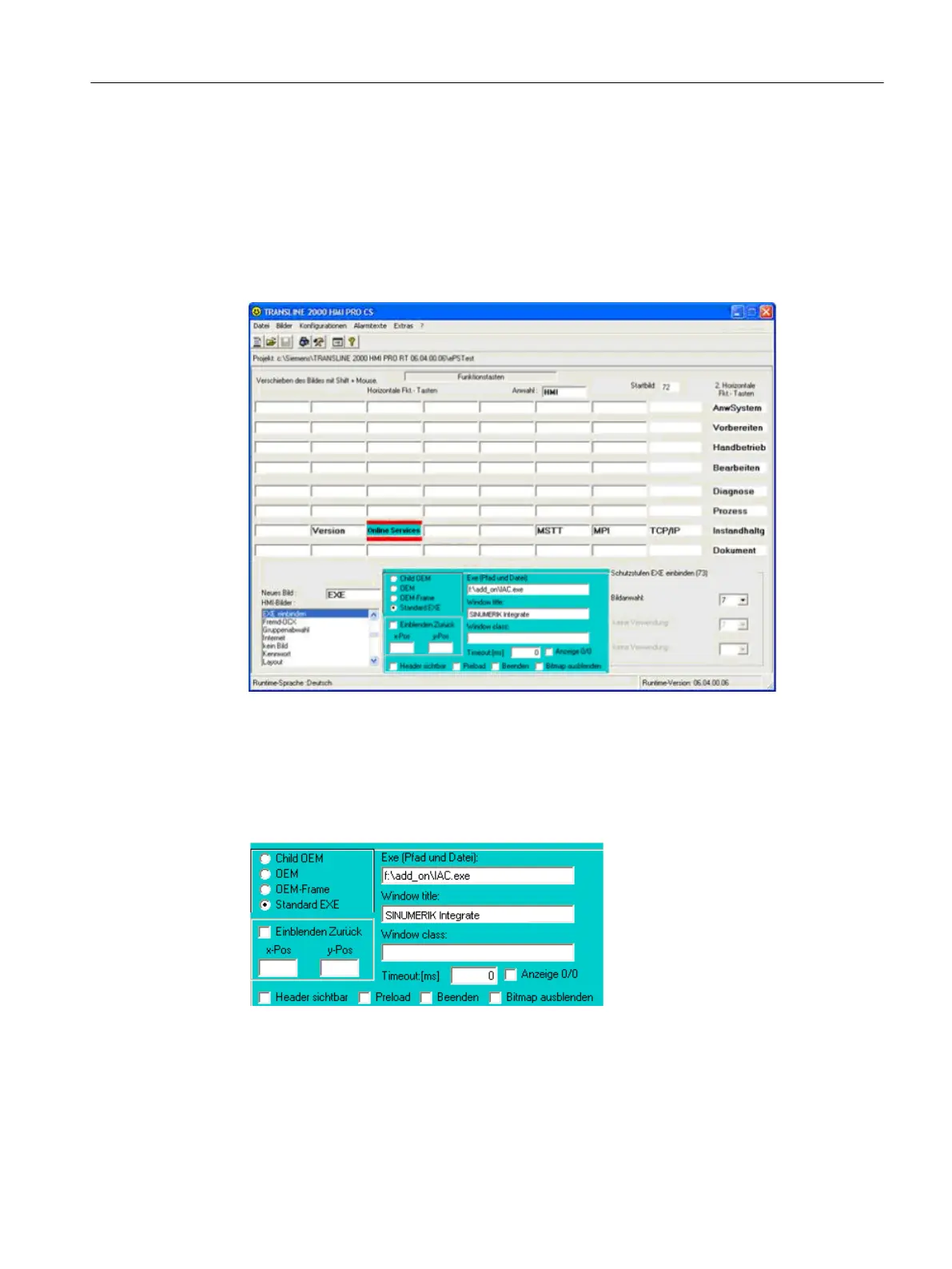

The following window is opened.
– Under "New image", enter the softkey name, e.g. "EXE".
– Define the softkey position using the <Shift> key + right mouse click.
– In the selection list "HMI images", select the function "Integrate EXE.".
2. Make the other settings as follows:
– In the option field, select "Standard EXE".
– In the text field "Exe (path and file):" enter the following directory:
"f:\add_on\IAC.exe"
– In the text field "Windows title:" enter the title: "SINUMERIK Integrate"
Installing SINUMERIK Integrate
7.2 SINUMERIK Integrate with HMI-Advanced
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
Installation Manual, 12/2019, A5E44672080B AE 167
