Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Smart Infrastructure Handling 2019-04-09
· If the actuator is forced to travel beyond its end positions, overload protection
responds.
· Observe information given in chapter 4.2.1 Positioning signal and flow
characteristic selection, page 31.
Before making the function check, the following preconditions must be satisfied:
· "Environmental conditions" specified in chapter "Technical data" (page 45).
· Actuator is mechanically connected to a Siemens valve.
· Actuator is in “Automatic” mode (page 42).
· Actuator and, if required, accessories are correctly fitted and connected. Also
refer to chapter
·
· Connection terminals” (page 48) .
· Power is applied.
Calibration is required with modulating actuators and SA..61.. before the function
check.
Before making the calibration, the following preconditions must be satisfied:
· A description of the calibration function is given in chapter 4.2.3 Calibration
(page 32).

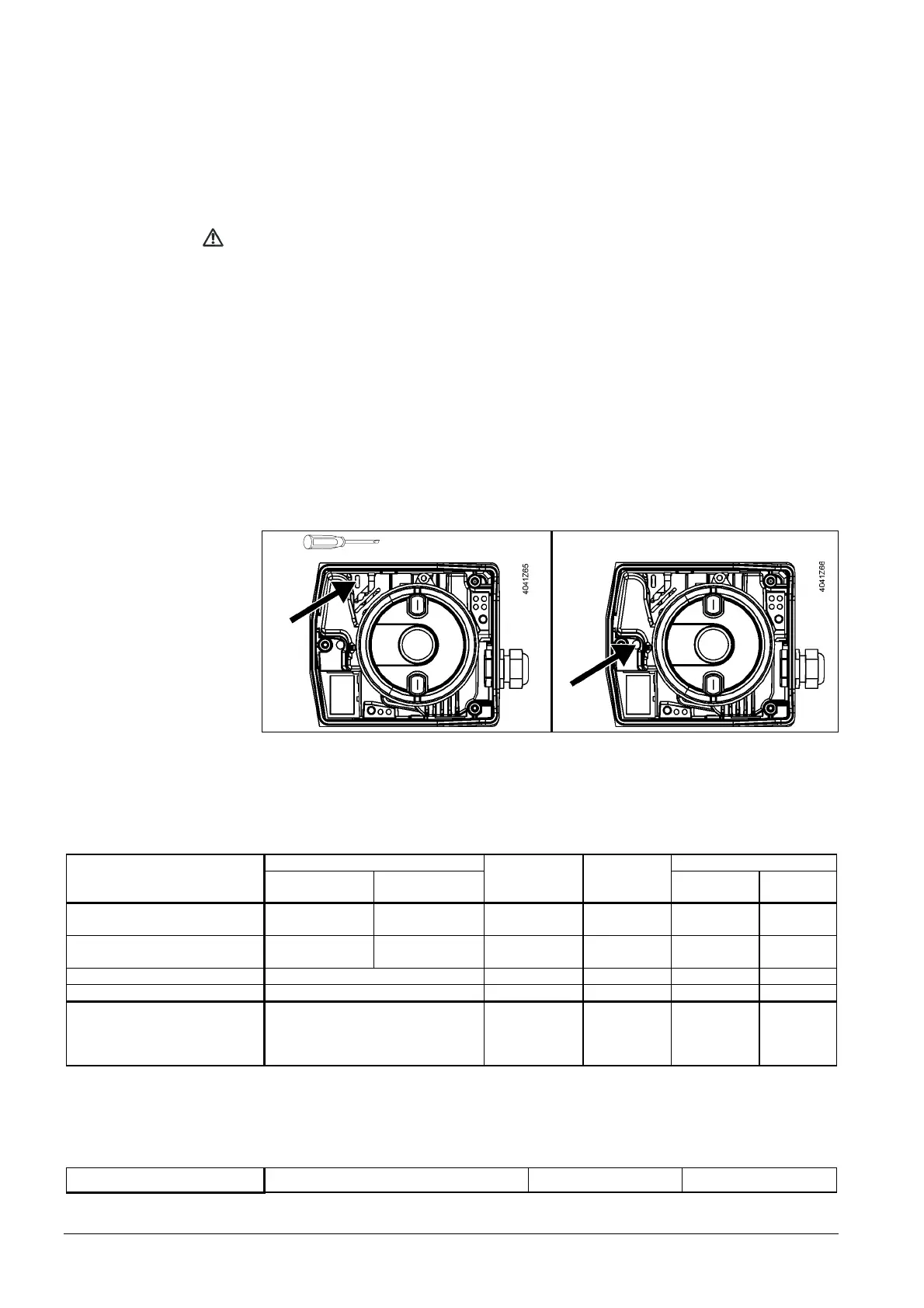

· Housing cover is removed (see “Special notes on mounting”, page 16).
1
Bridge contact
2
Check LED (page 43)
If required, calibration can be repeated any number of times.
Make the function check for modulating actuators after the calibration with a point
test according to the following table:
Connection terminals
Stroke actuator
Control path
valve AàAB
Bypass
valveur
BàAB
Position feedback U
log
2)
lin
2)
log
2)
lin
2)
Y
6 V
13.6 mA
Actuator’s stem
extends (30%)
Actuator’s stem
extends (60%)
Opening Closing 2.95 V 6 V
Y
5 V
12 mA
Actuator’s stem
extends (23%)
Antriebsstössel
fährt ein (50%)
Closing Opening 2.3 V 5 V
Z connected G Actuator’s stem extends Opening Closing 10 V 10 V
Z connected to G0 Actuator’s stem retracts Closing Opening 0 V 0 V
Only SAS61.33, SAS61.33U,
SAS61.53, SAT61.51
No voltage at G and G0
(fail safe function triggers)
1)
Actuator’s stem retracts (until the
end position is reached)
Schliesst Öffnet - -
1)
Closing action is always completed first, also when power returns.
2)
SAS61.. Factory setting log; SAT61.. factory setting lin
Make the function check for 3-position actuators according to the following table:
Connection terminals Stroke actuator Control path valve Bypass valve
Electrically
SA..61..
General notes on
calibration
SA..31.. and SA..81..
