Siemens MT SAS Series User Manual

8 / 60
Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Smart Infrastructure Engineering 2019-04-09
2 Engineering
2.1 Product description

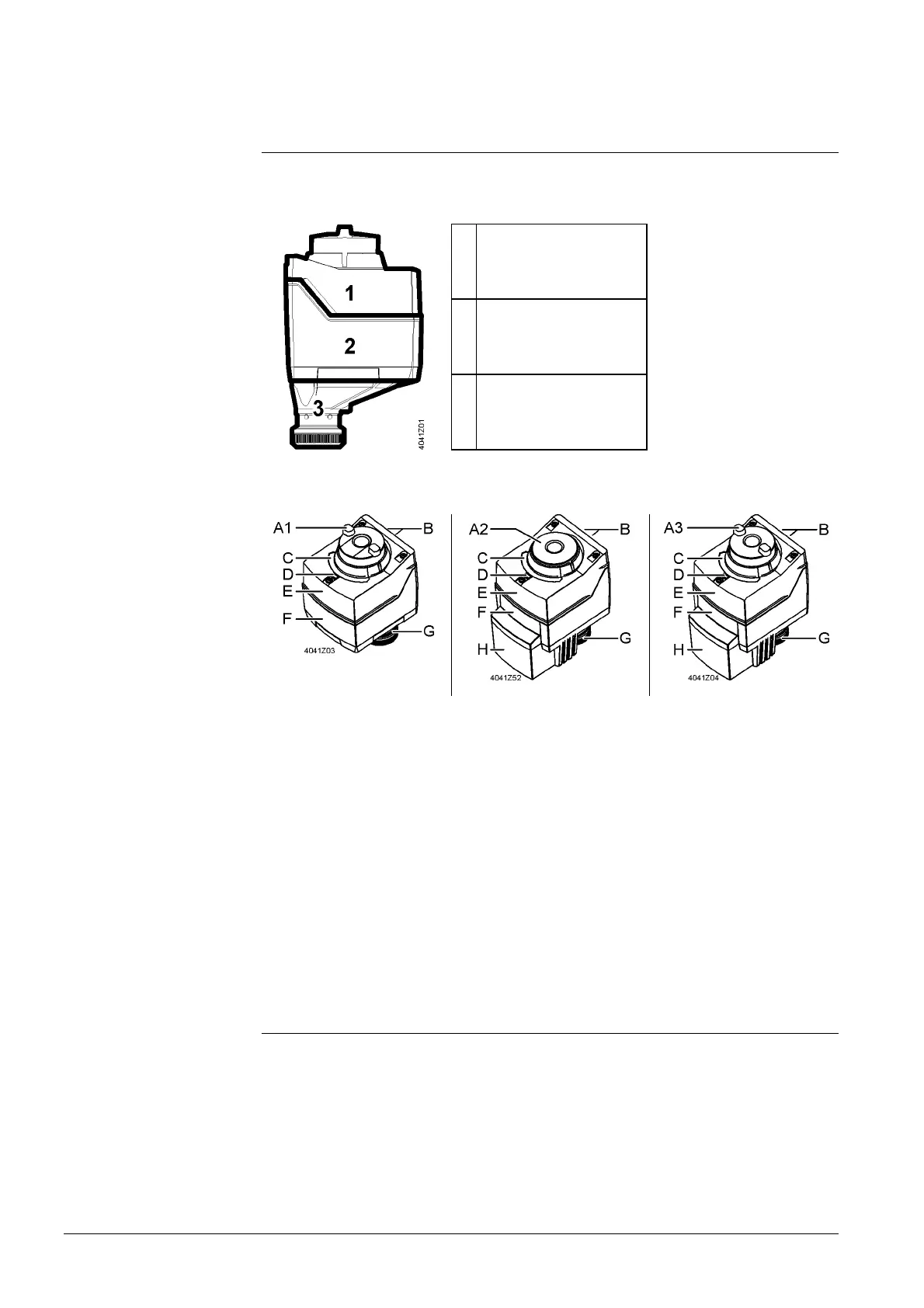

The line of small actuators is comprised of stroke actuators SAS.. and SAT..
1
User interface
Electrical connections
2
Power transmission and
preparation
Print
Motor
3
Yoke (for assembly of
actuator and seat, slipper
valve)
SAS.., SAT..
SAS.. / SAT.. SAS..5.. / SAT..5.. SAS..33..
A1 Manual adjuster (with slide switch)
A2 Dummy cover (without manual adjuster)
A3 Manual adjuster (without slide switch)
B Cable glands (M16 / M20)
C Position indication
D Status indication (SA..61.., 0…10 V)
E Housing cover
F Housing
G Valve stem coupling
H Housing of spring return
See Section 3.2.2 Commissioning Modbus RTU
2.2 Use
For use in connection with Siemens 2-port or 3-port valves, as control or shutoff
valves for HVAC plants.
Mechanical design
Components
Network functions
SAS.. / SAT..
