Connecting
7.5 DRIVE CLiQ components
NCU 7x0.2
Manual, 02/2011, 6FC5397-0AP20-0BA0
53
Position of plug connectors
B
A
8
1

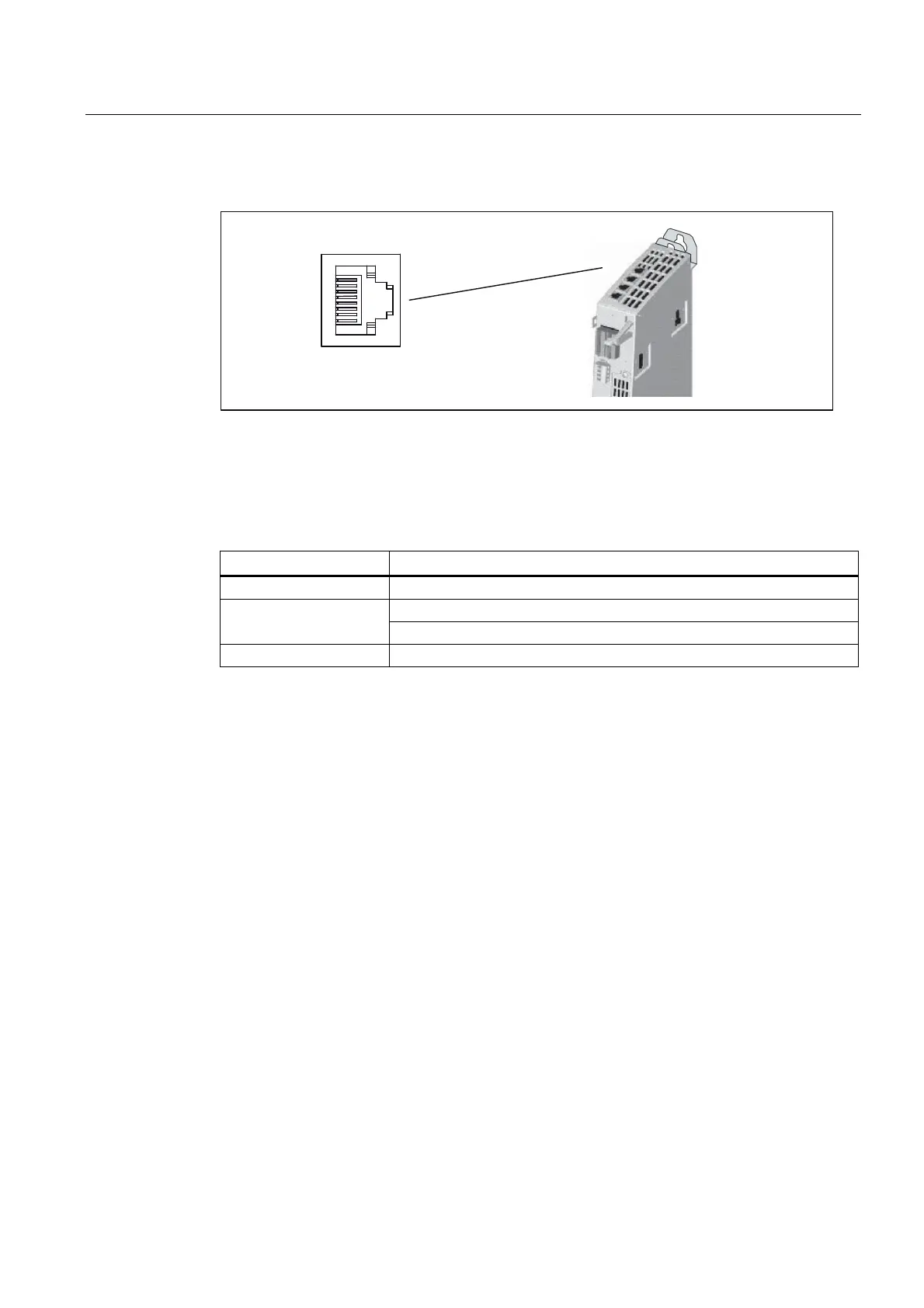

Figure 7-4 DRIVE-CLiQ interface
Cable specifications
Table 7- 7 Cable specifications for X100 - X103 or X100 – X105
Characteristic Version
Connector type RJ45 socket
DRIVE-CLiQ standard (inside the control cabinet) Cable type
MOTION CONNECT (outside the control cabinet)
Max. cable length 70 m
