Siemens NCU 7 0.2 Series User Manual

Connectable components
9.2 COM01.2 RS 232C (V.24) module
NCU 7x0.2
Manual, 02/2011, 6FC5397-0AP20-0BA0
97
9.2.2 Installation/Mounting
CAUTION
Option boards should only be inserted and removed when the control unit and option board
are at zero current.
CAUTION
Option boards may only be operated by qualified personnel. The ESD notices must be
observed.
Installing the COM01.2 RS 232C (V.24) module
A COM01.2 option board is installed in the option slot of the control unit.
8QVFUHZDQGUHPRYHWKH
SURWHFWLYHFRYHU
)L[LQJVFUHZV
01P
,QVHUWDQGPRXQWWKHRSWLRQ
ERDUG
7RU[7

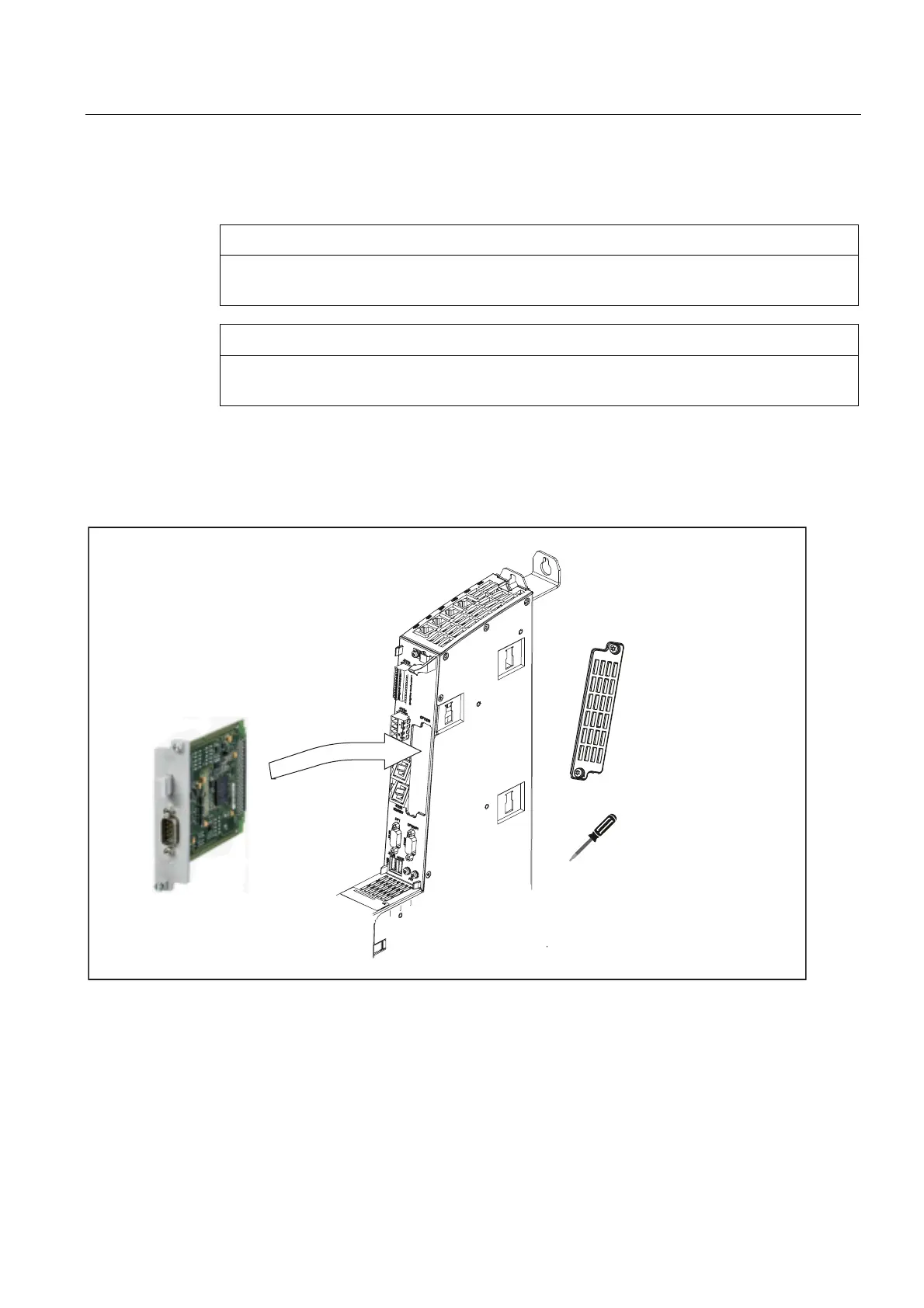

Figure 9-7 Installing COM01.2
The cable outlet is at the top.
