15-5
Manual OP5, OP15
( ) J31069-D0840-U001-A2-7618
15.3 Connecting a Configuration Computer
Connect a configuration computer – for example, a programming unit – tem-
porarily to the OP interfaces which are shown in figure 15-3 and which are
used only to download configuration data. Standard cables are available for
the connections shown in the figure (refer to the ST80.1 catalog).
IF1
V.24
TTY passive
TTY passive
V.24
TTY/V.24 converter
COM1/2
(25-pin)
COM1
(25-pin)
COM2
(9-pin)
PC
PU 7xx
OP
OP5
OP15

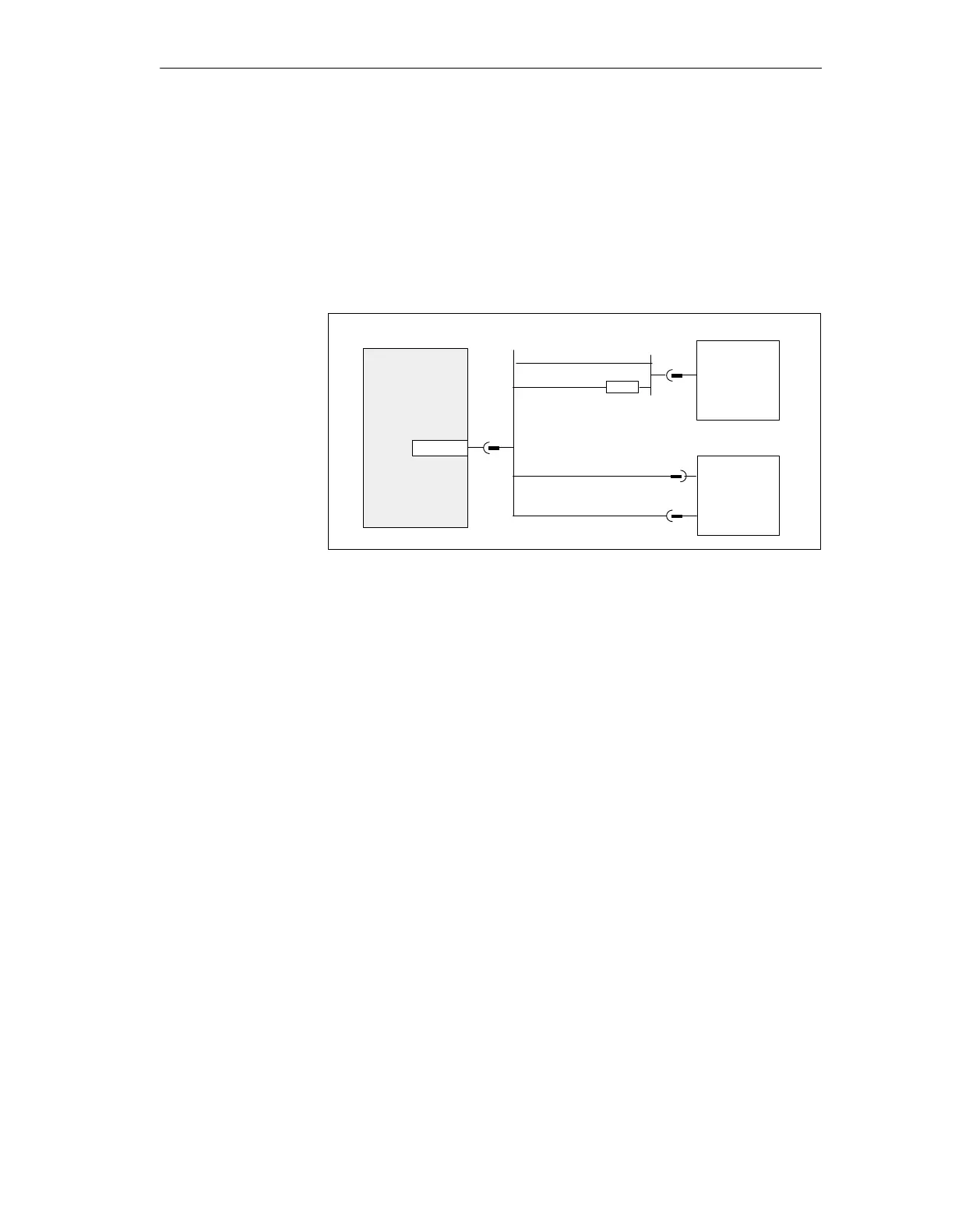

Figure 15-3 Connection Configuration Scheme for a Configuration Computer
