Siemens OP5 - Commissioning

16-1
Manual OP5, OP15
( ) J31069-D0840-U001-A2-7618
Commissioning
Figure 16-1 shows the most important steps for initial startup, restart and nor-
mal operation of the OP. The commissioning guide which follows explains
the different steps that have to be taken to commission the OP.
OP
Download configuration data to OP
COM1/2 IF1
Set Download mode by means of the
standard screen
System  OPMode  Download
Switch on OP power supply
Initial startup
Neither configuration nor
firmware on the OP.
Restart
The OP already has a config-
uration but is required to
work with a modified or new
configuration.
Normal operation
The OP is operated
with the loaded
configuration.
Message level
ProTool/
Lite

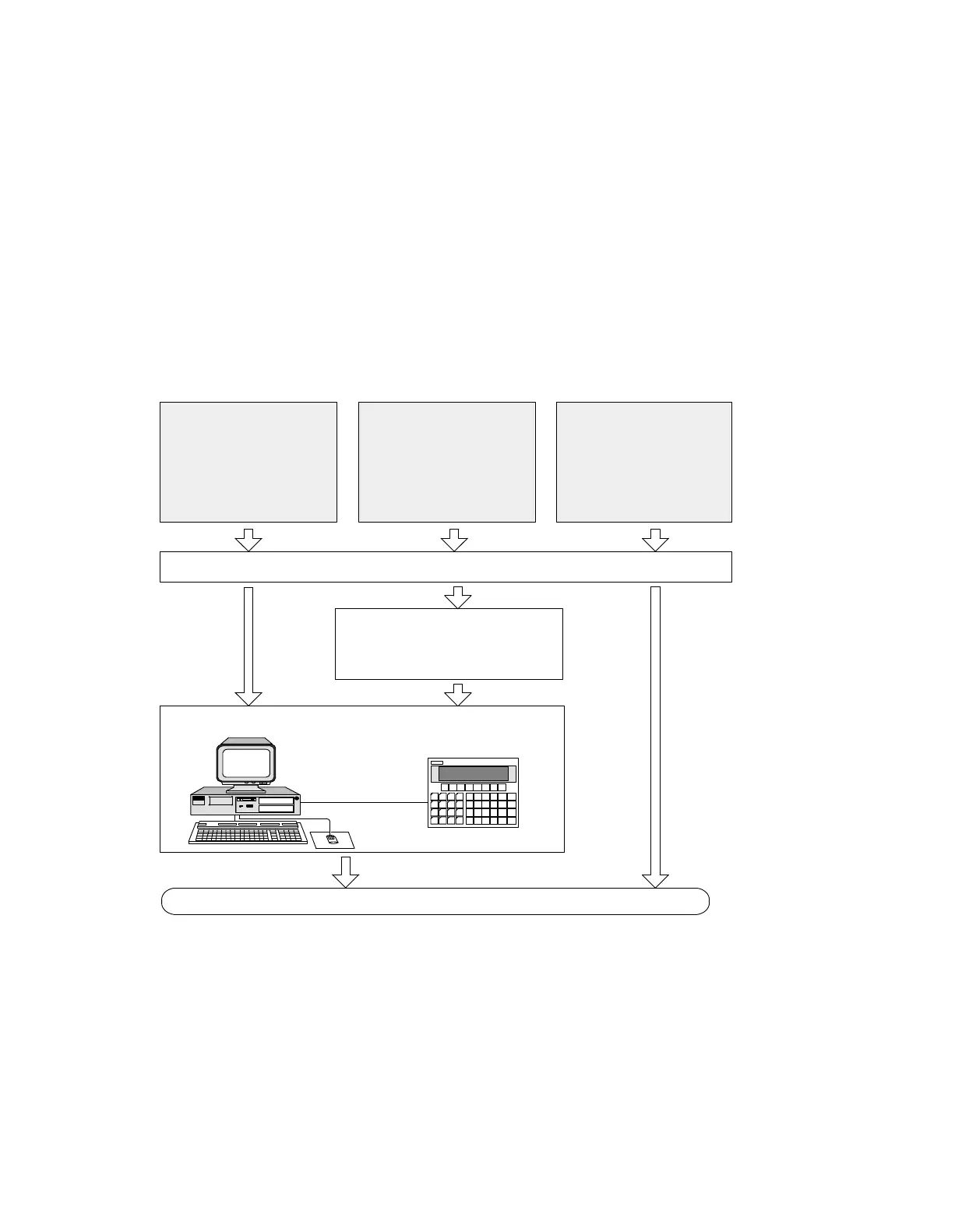

Figure 16-1 Diagram of Commissioning
Diagrammatic
representation
