Wiring, continued
GDE34x
100 to 240 Vac Power Supply, Two-Position
Floating Control
Each wire has the standard symbol printed on it. See
Table 5.

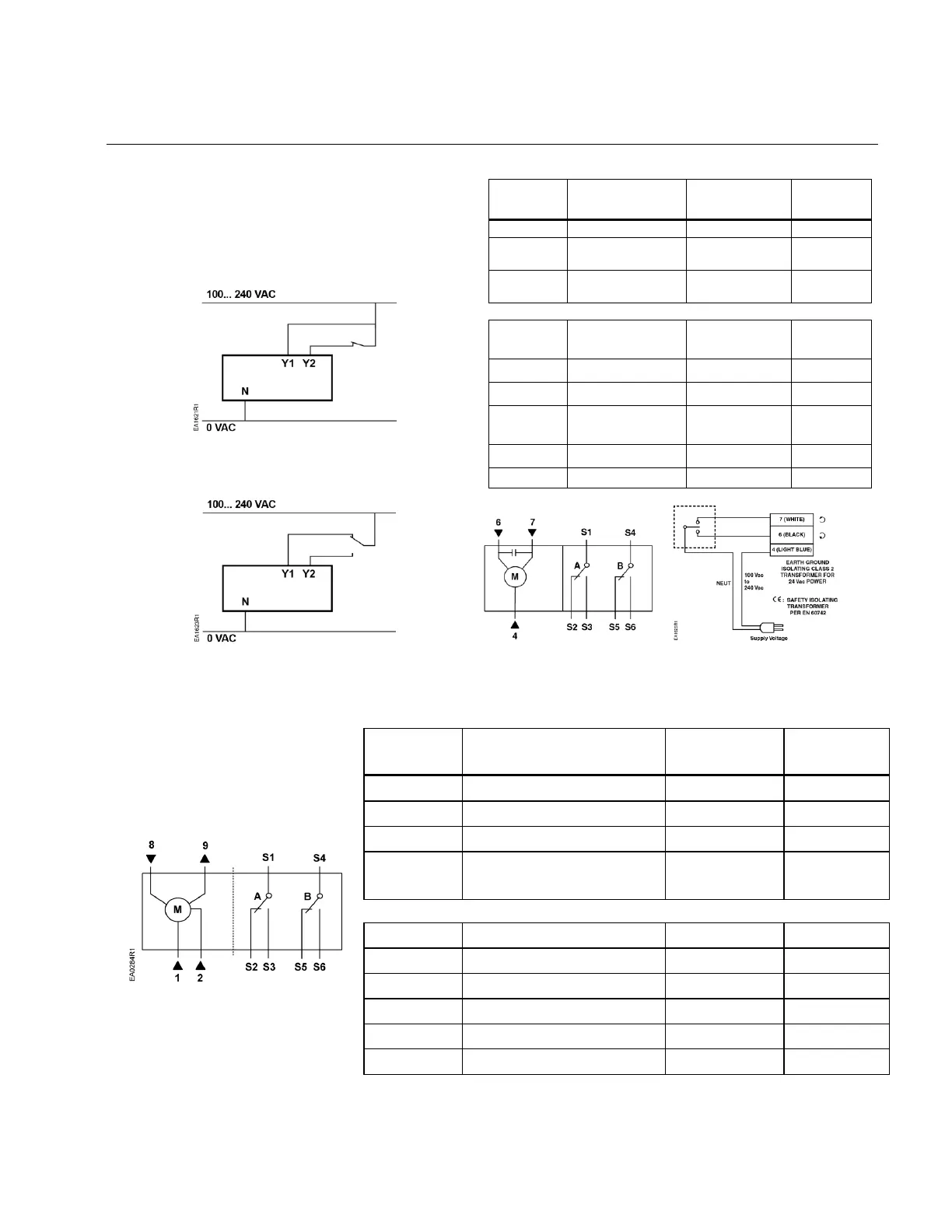

Figure 25. 2-Position, SPST
(Single-Pole, Single-Throw).
Figure 26. 2-Position, SPDT
(Single-Pole, Double-Throw).
Table 5. Two-Position, Floating Control, 100 to 240 Vac.
Standard
Symbol
Function
Terminal
Designation
Color
4
Supply (SP)
N
Light Blue
6
Control signal
clockwise
Y1
Black
7
Control signal
counterclockwise
Y2
White
Factory-installed Options
S1
Switch A
Common
Q11
Gray/Red
S2
Switch A – NC
Q12
Gray/Blue
S3
Switch A – NO
Q14
Gray/Pink
S4
Switch B –
Common
Q21
Black/Red
S5
Switch B – NC
Q22
Black/Blue
S6
Switch B – NO
Q24
Black/Pink
Figure 27. GDE34x Figure 28. Floating Control
Wiring Diagram 100 to 240 Vac.
Table 6. Modulating Control, 24 Vac/dc.
GDE 16x
24 Vac/dc Power Supply, 0(2)
to 10V Modulating Control
Standard
Symbol
Function
Terminal
Designation
Color
1
Supply (SP)
G
Red
2
Neutral (SN)
G0
Black
Figure 29. GDE16x Wiring Diagram.
8
0(2) to 10V input signal
Y
Gray
9
Output for 0(2) to 10 Vdc
position indication
U
Pink
Factory-installed Options
S1
Switch A Common
Q11
Gray/Red
S2
Switch A - NC
Q12
Gray/Blue
S3
Switch A - NO
Q14
Gray/Pink
S4
Switch B - Common
Q21
Black/Red
S5
Switch B - NC
Q22
Black/Blue
S6
Switch B - NO
Q24
Black/Pink
