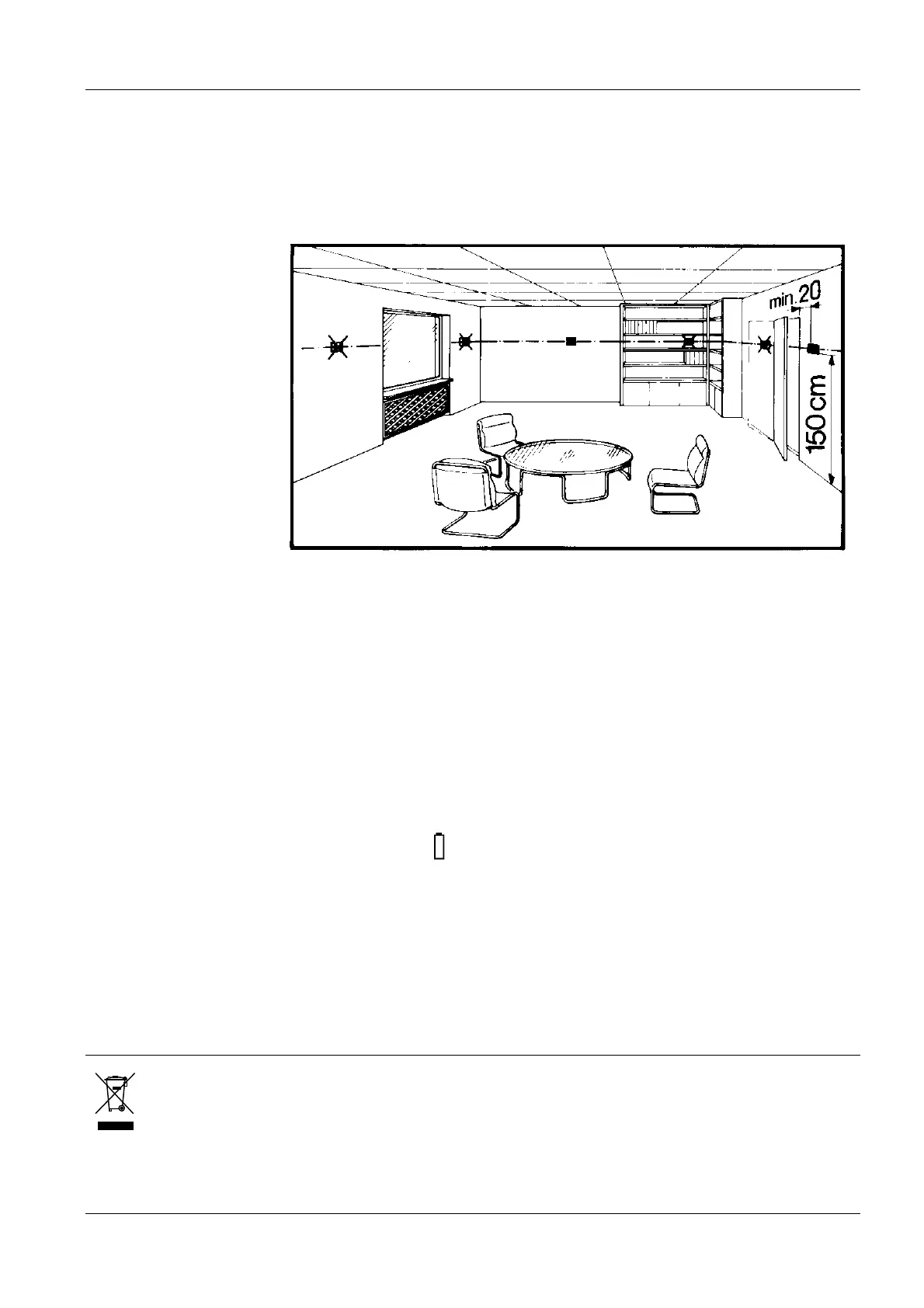

7/12
Siem ens Room temperature controllers CE1N3072en
Building Technologies 2014-04-04
Notes
Mount the room temperature controller in a location where the air temperature can be
measured as accurately as possible without being adversely affected by direct solar
radiation or other sources of heat or cooling.
The controller is delivered with a fold-out stand and may be used as a "mobile" device
(Note: Pay attention to mounting location).
Mounting height is approximately 1.5 m above the floor.
The unit can be fitted to a recessed conduit box.
Fix the baseplate prior to mounting the controller. The receiver does not require any
baseplate. Connect the electrical connections, fit and secure the receiver in compliance
with local regulations (also refer to the separate mounting instructions).
Mount the controller on a flat wall.
If there are thermostatic radiator valves in the reference room, set them to their fully
open position.
For commissioning please refer to the Operating Instruction CE1B3072xx
Controller and receiver are maintenance-free except for the controller battery.
If the battery symbol
appears, the batteries are almost empty and must be
replaced.
Simultaneously press the TEST and LEARN buttons on the rear side of the controller to
reset it (reset function).
Simultaneously press the OVERRIDE and LEARN buttons to reset the receiver (reset
function).
All individual settings are reset to the default values.
Disposal
The devices are considered electronics devices for disposal in term of European
Directive 2012/19/EU and may not be disposed of as domestic waste.
· Dispose of the device via the channels provided for this purpose
· Comply with all local and currently applicable laws and regulations.
· Dispose of empty batteries at designated collection points.
Mounting, installation
and commissioning
Maintenance
Change of batteries
Reset
