Siemens RDE100 Series User Manual

Functions
• Room temperature control via built-in sensor or external input
• Selection of operating mode with operating mode touchkey
• Setting auto time switch (individual day, 7 day or 5-2 day)
• Display of current room temperature or setpoint in °C or °F
• Touchkey lock (manually)
• Setpoint lock
• Periodic pump run
• Reloading factory settings for commissioning and control parameters
• One multifunctional input (RDE100.1 only) freely selectable for:
Floor Heating temperature limitation function
Operating mode switchover contact (keycard, window contact, etc.)
Temperature control

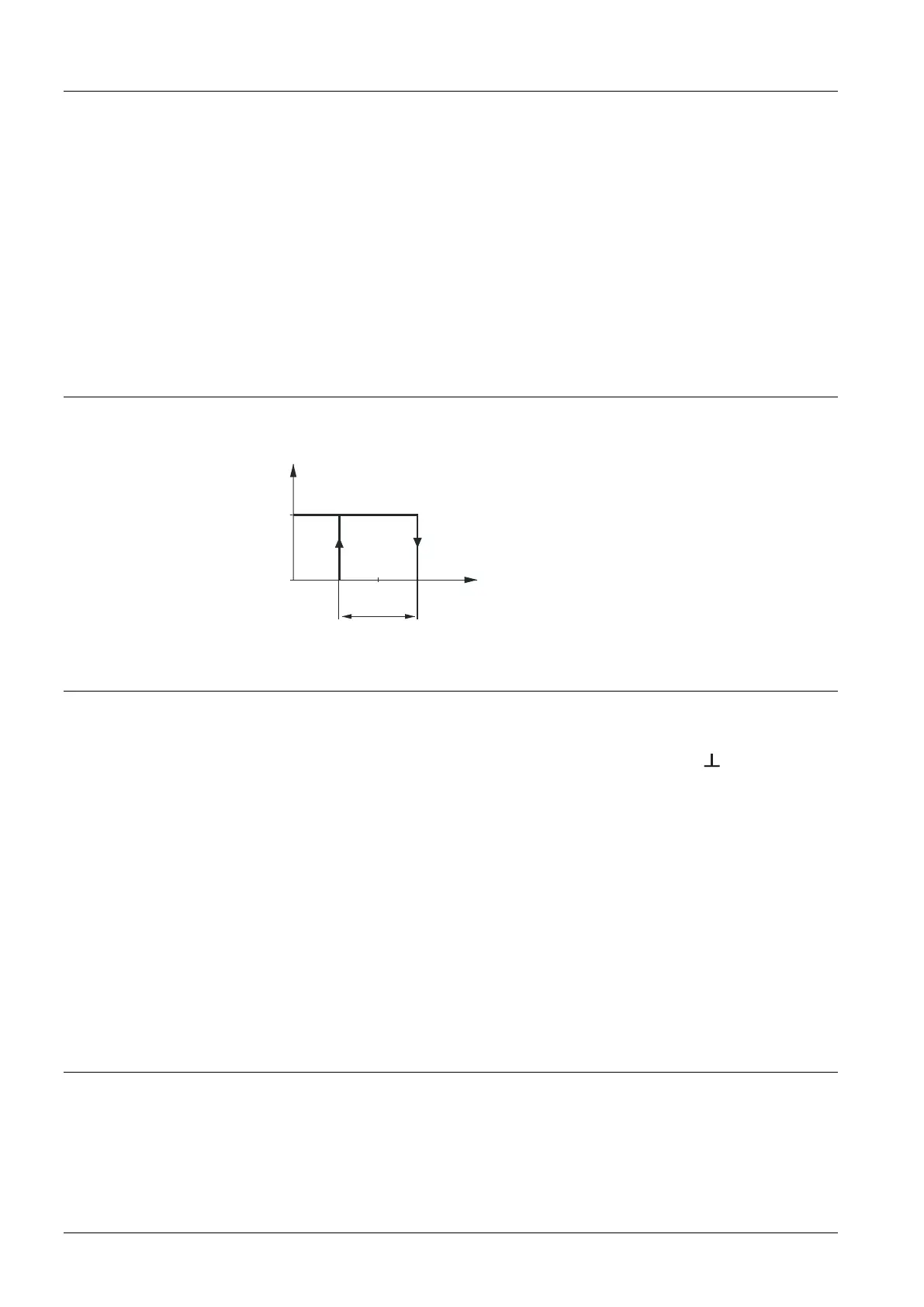

The RDE100.. acquires the room temperature with its built-in sensor and maintains
the setpoint by delivering control commands. The switching differential is 1 K.
Q14
T[°C]
ON
OFF
W
SD
1422D01
T
Room temperature
SD
Switching differential
W
Room temperature setpoint
Q14
Output signal for heating
Floor heating limitation function (RDE100.1 only)
The factory setting for this function is Off (disabled) and must be set to "On" if floor
heating is used.
The external floor temperature sensor is connected to input X1,
and acquires
the floor temperature. If the floor temperature exceeds the parameterized
temperature limit xx ºC (P14 = 1, P15 = 1, P16 = xx ºC), the heating valve is fully
closed until the floor temperature returns to a level below the parameterized limit.
Typical application is rooms (dry floor).
If the application does not require floor heating temperature limitation but instead
uses the external sensor as a source for both room temperature display and
control, the parameters will have to be set as follows: P14 = 1, P15 = 0. A typical
application is the bathroom (wet floor) where a constant floor temperature is
required.
It is not recommended to have only an internal built-in room sensor for floor
heating since there is a potential risk of overheating.
Operating mode switchover function
This function allows keycard application, please refer to the section “Operating
notes, Economy mode”.
2 / 14
Siemens RDE100.. Room thermostat with Auto Timer, Option External Input CB1N1422en
Building Technologies 2016-03-10
