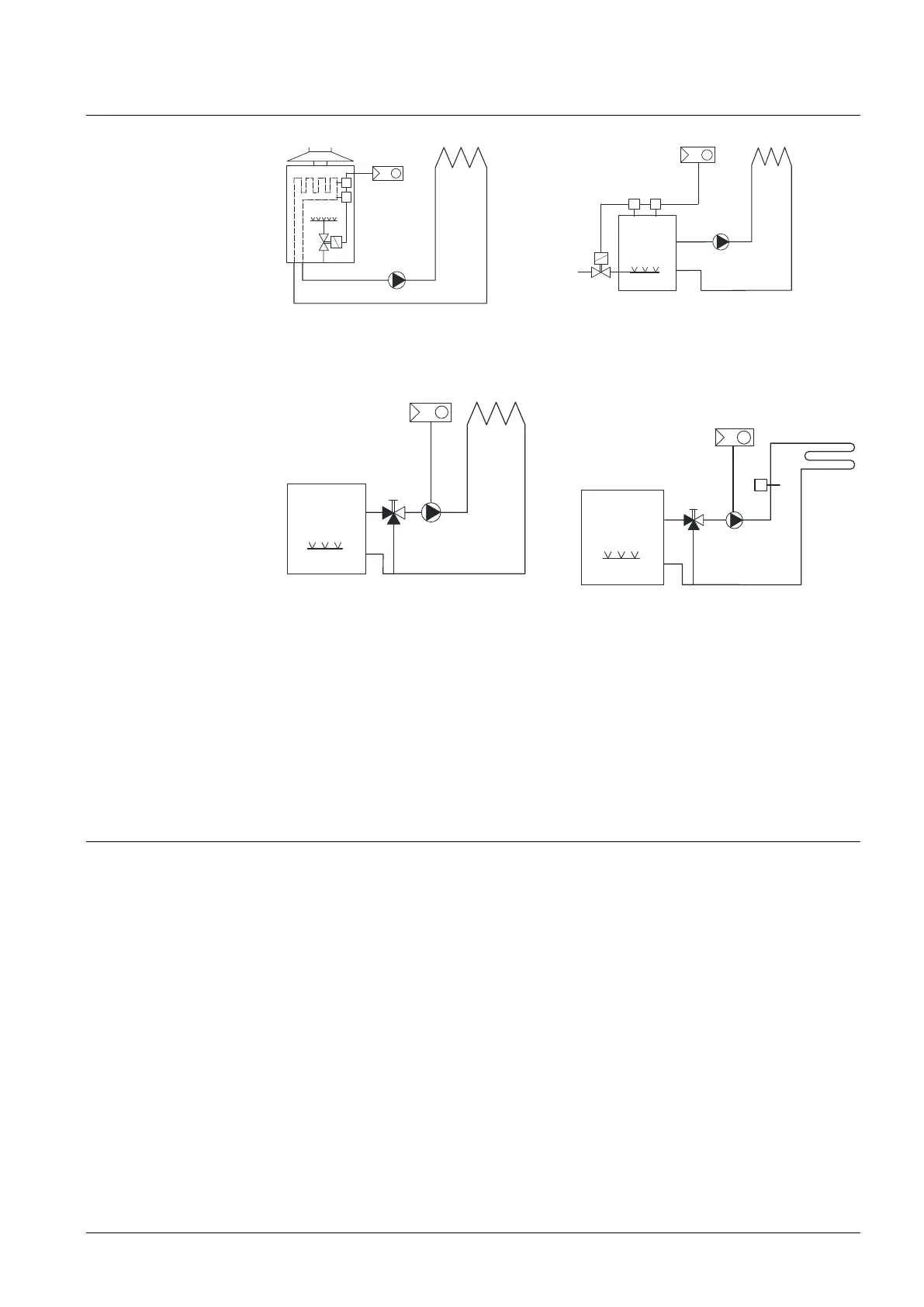

Application examples
Room thermostat with direct control of a
gas-fired wall-hung boiler
Room thermostat with direct control of a
gas-fired floor-standing boiler
Room thermostat with direct control of a
heating circuit pump (precontrol by
manual mixing valve)
Room thermostat with direct control of
hydronic floor heating system
F1 Thermal reset limit thermostat
F2 Safety limit thermostat
M1 Circulating pump
N1 RDE100.. room thermostat
Y1 Mixing 3-port valve with manual
adjustment
Remarks
Heating:
Because of the unavoidable self heating effects of the electrical current, any loads
of more than 3 Amperes connected to the unit can influence the control behavior
and temperature accuracy in a negative way.
13 / 14
Siemens RDE100.. Room thermostat with Auto Timer, Option External Input CB1N1422en
Building Technologies 2016-03-10
