Transport
Climatic conditions
Temperature
Humidity
Mechanical conditions
As per
IEC 60721-3-2
Class 2K3
-
25…60 °C
<95% r.h.
Class 2M2
Storage
Climatic conditions
Temperature
Humidity
As per
IEC 60721-3-1
Class 1K3
-
25…60 °C
<95% r.h.
EU Conformity (CE)
CE1T1420xx *)
RCM conformity
CE1T1420en_C1*)
Safety class
II as per EN 60730-1, EN 60730-2-9
Pollution class
II as per EN 60730-1
Degree of protection of housing
IP30 as per EN 60529
The product environmental declaration CE1E1420xx
*)
contains data on environ-
mentally compatible product design and assessments (RoHS
compliance,
materials composition, packaging, environmental benefit, disposal).
Based on EU Regulation 813/2013
(Eco design directive) and 811/213 (Labeling
directive) concerning space heaters, combination heaters,
the following classes
apply:
-
Application with On/Off operation of a heater Class I value 1.0%
Connection terminals for
Solid wires or prepared stranded wires
2 x 1.5 mm
2
or 1 x 2.5 mm
2
(Min. 0.5 mm
2
)
Weight
0.166 kg
Color of housing front
RAL9003
*) The documents can be downloaded from http://siemens.com/bt/download.

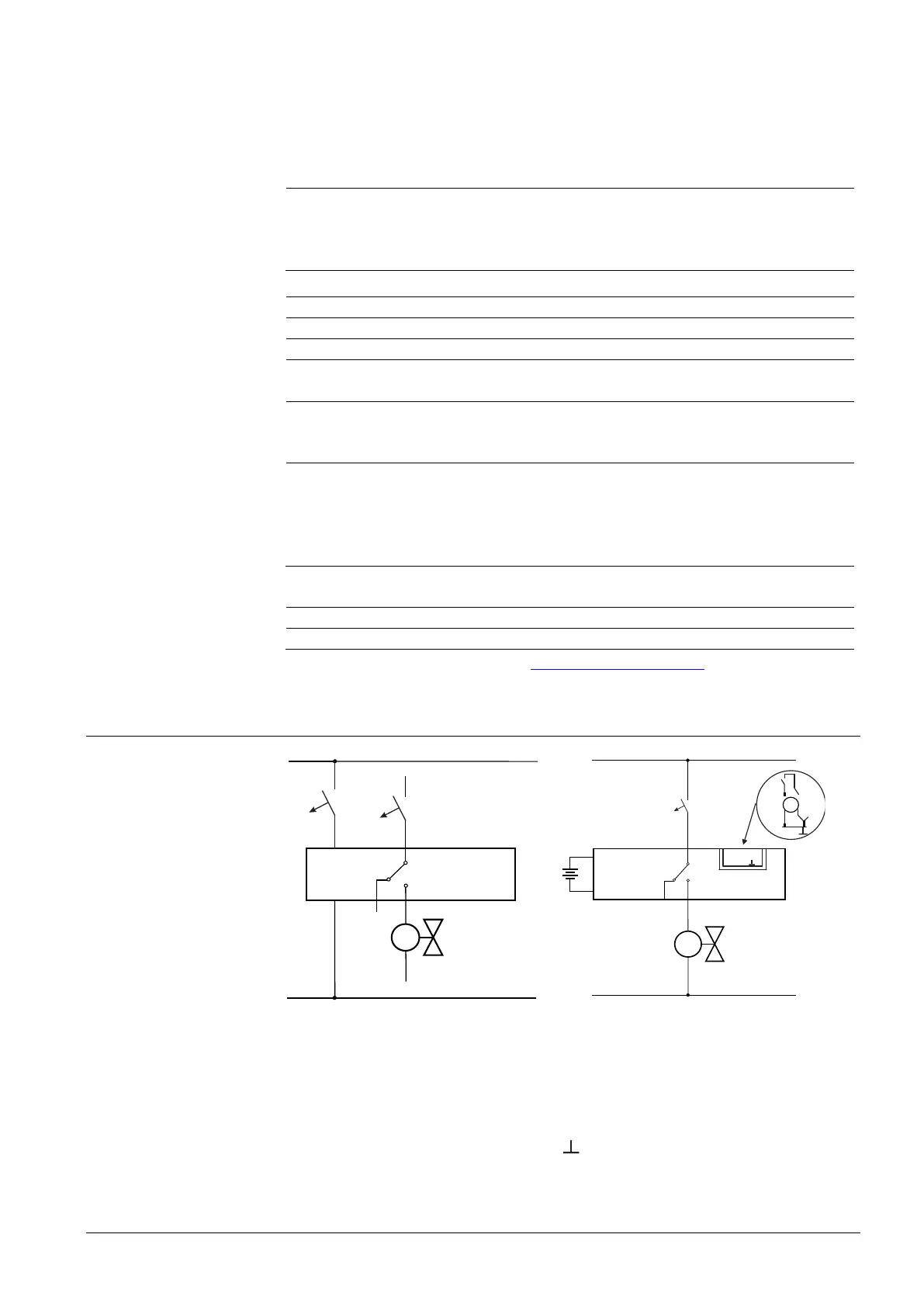

Connection diagrams
L
N
Y1
1422A01
N1
Q14
Q11
Q12
Lx
5(2) A
Max.
Nx
10 A
10 A
Lx
Nx
1422A02
N1
Q14
Q11
3V
Q12
Y1
5(2) A
Max.
X1
T
X1
S1
B1
10 A
RDE100
RDE100.1
N1 Room thermostat
Y1 Valve actuator
L Live, AC 230 V
N Neutral conductor, AC 230 V
Lx Live, AC 24 ... 230 V
Q11, Q12 NC contact (for NO valves)
Q11, Q14 NO contact (for NC valves)
Nx Neutral conductor, AC 24...230 V
X1 External input signal
Measuring neutral for external input
B1 Temperature sensor (Floor
temperature limit)
Norms and standards
Environmental
compatibility
General
Eco design and labeling
directives
11 / 14
Siemens RDE100.. Room thermostat with Auto Timer, Option External Input CB1N1422en
Building Technologies 2016-03-10
