8/8
Siemens Room temperature controllers CE1N3036en
Building Technologies 13.10.2008
control of a gas-fired wall-hung boiler control of a gas-fired floor-standing boiler
T
N1
Y1
2222S03
M1

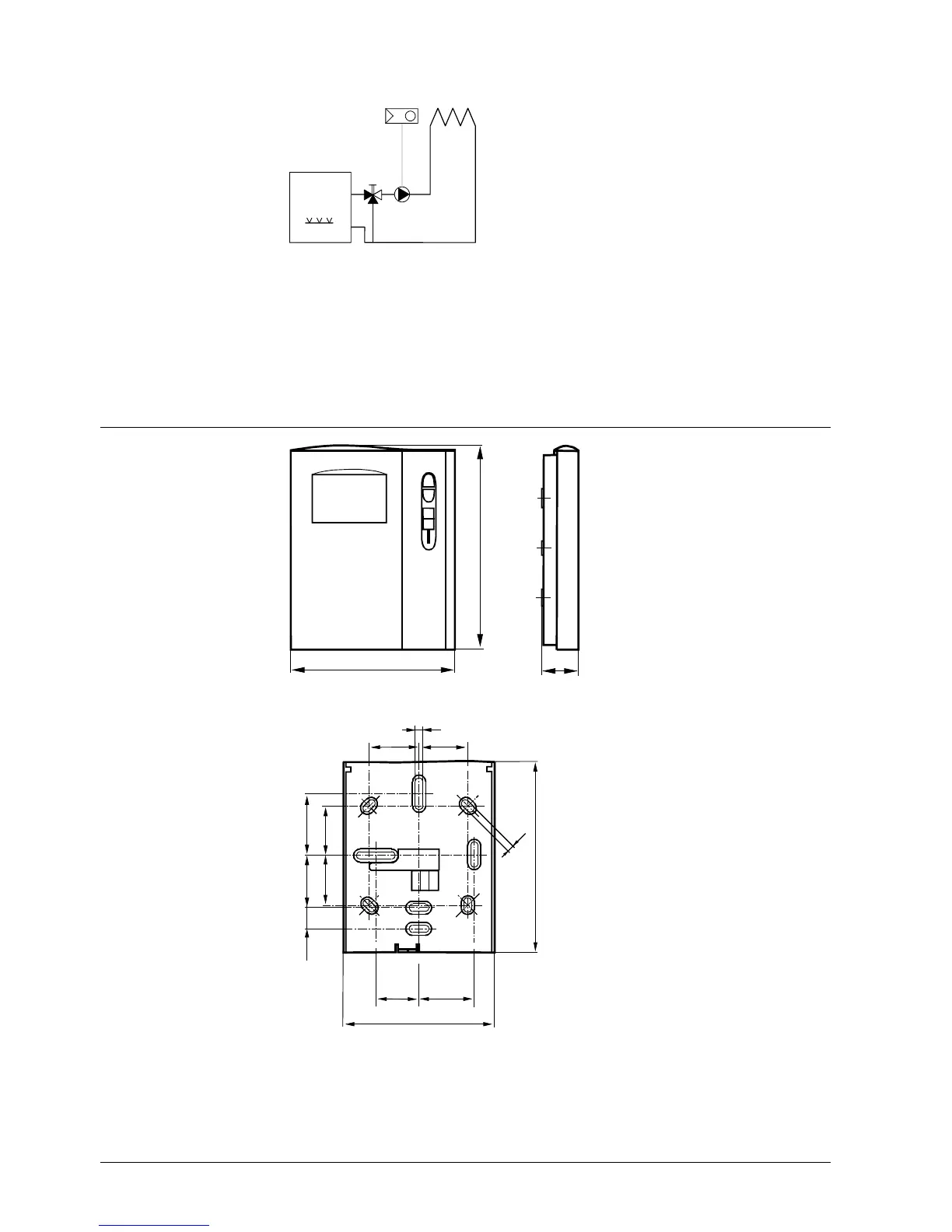

Room temperature controller with direct
control of a heating circuit pump (precontrol
by manual mixing valve)
F1 Thermal reset limit thermostat
F2 Safety limit thermostat
M1 Circulating pump
N1 RDE20.1 room temperatures controller
Y1 3-port valve with manual adjustment
Y2 Magnetic valve
Dimensions
96
119
23,8
3035M01
89,45
4
3035M02
28 28
28
28
26
30
3530
11,8
112,3
4
Controller
Baseplate
© 2003 - 2008 Siemens Building Technologies AG Subject to change
