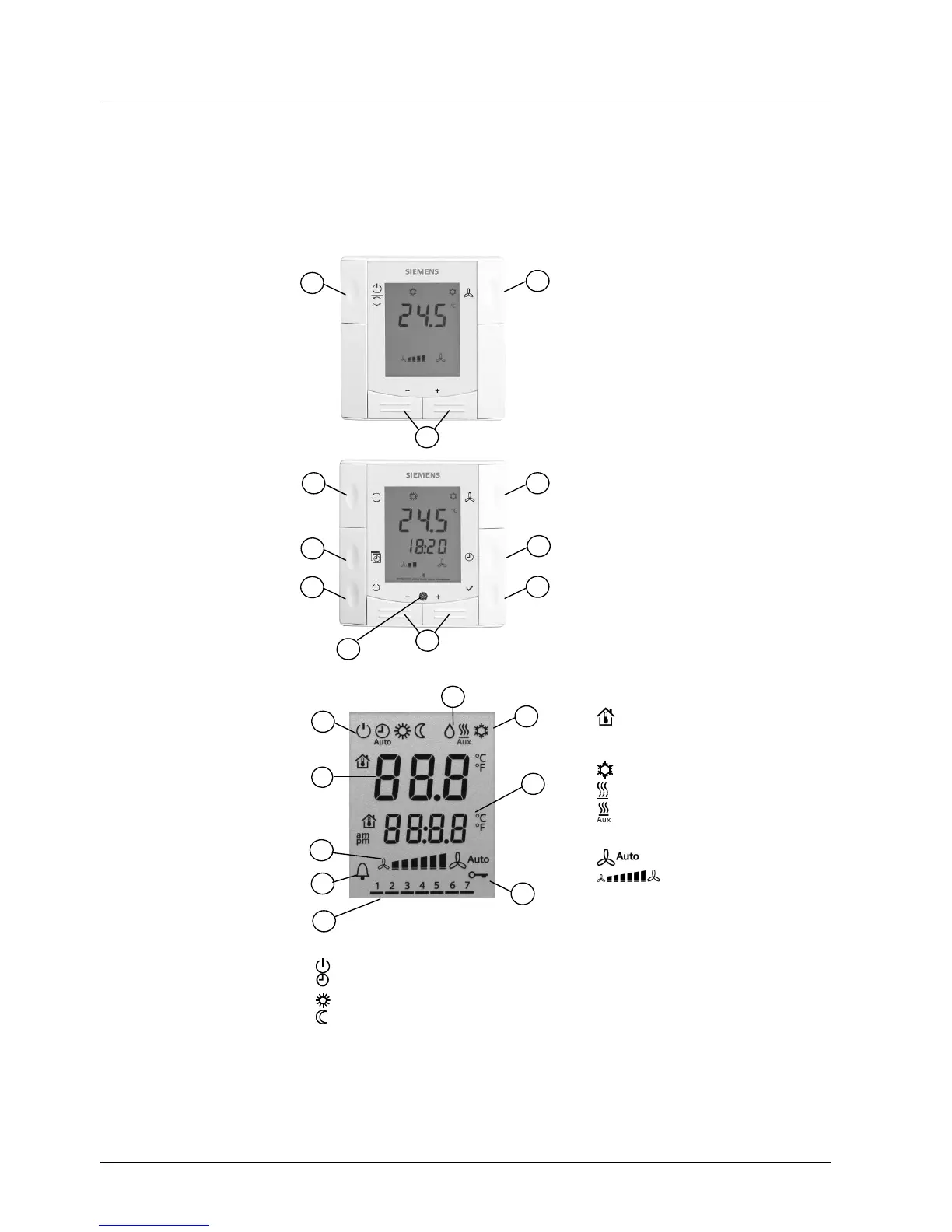

Mechanical design
The thermostat consists of 2 parts:
· Front panel accommodating the electronics, operating elements and built-in room
temperature sensor.
· Mounting base with the power electronics.
The rear of the mounting base contains the screw terminals Slide the front panel in the
mounting base and snap on.
1. Operating mode selector / Protection
2. Change fan operation
3. Adjust setpoint and control parameters
1. Change operating mode selector
2. Change fan operation
3. Adjust setpoint, control parameters and time
of day
4. Auto Timer program
5. Protection
6. Set time of day and weekday
7. Confirm
8. Infrared receiver
1. Operating mode
Protection
AUTO
Auto Timer mode *
Comfort
Economy
2. Display room temperature, setpoints and
control parameters.
Symbol used to display the current room
temperature
3. Heating/cooling mode
Cooling mode
Heating mode,
Electrical heater active
4. Fan mode
Auto fan active
Fan speed low, medium, high
5. Additional user information (RDF3xx) or
current time of day (RDF400 / RDF600T)
6. Weekday 1..7 (1 = Monday/7 = Sunday)*
7. Key lock active
8. Condensation in room
(dewpoint sensor active)
9. Indicate fault or reminder
* only on RDF400… / RDF600T
Operation and settings
RDF300…/RDF340…
RDF600
RDF400…
RDF600T
Display
2
1
3
21
5
8
6
3
4
7
1
2
3
4
5
6
9
7
8
