Siemens RDG100KN - Heating or Cooling and Radiator; Floor Heating; Heating and Cooling; Heating and Cooling and Electric Heater; 2-Stage Heating or Cooling

4 / 14
Siemens RDG100KN Room thermostat with KNX communications CE1N3191en
Building Technologies 01 Jun 2010

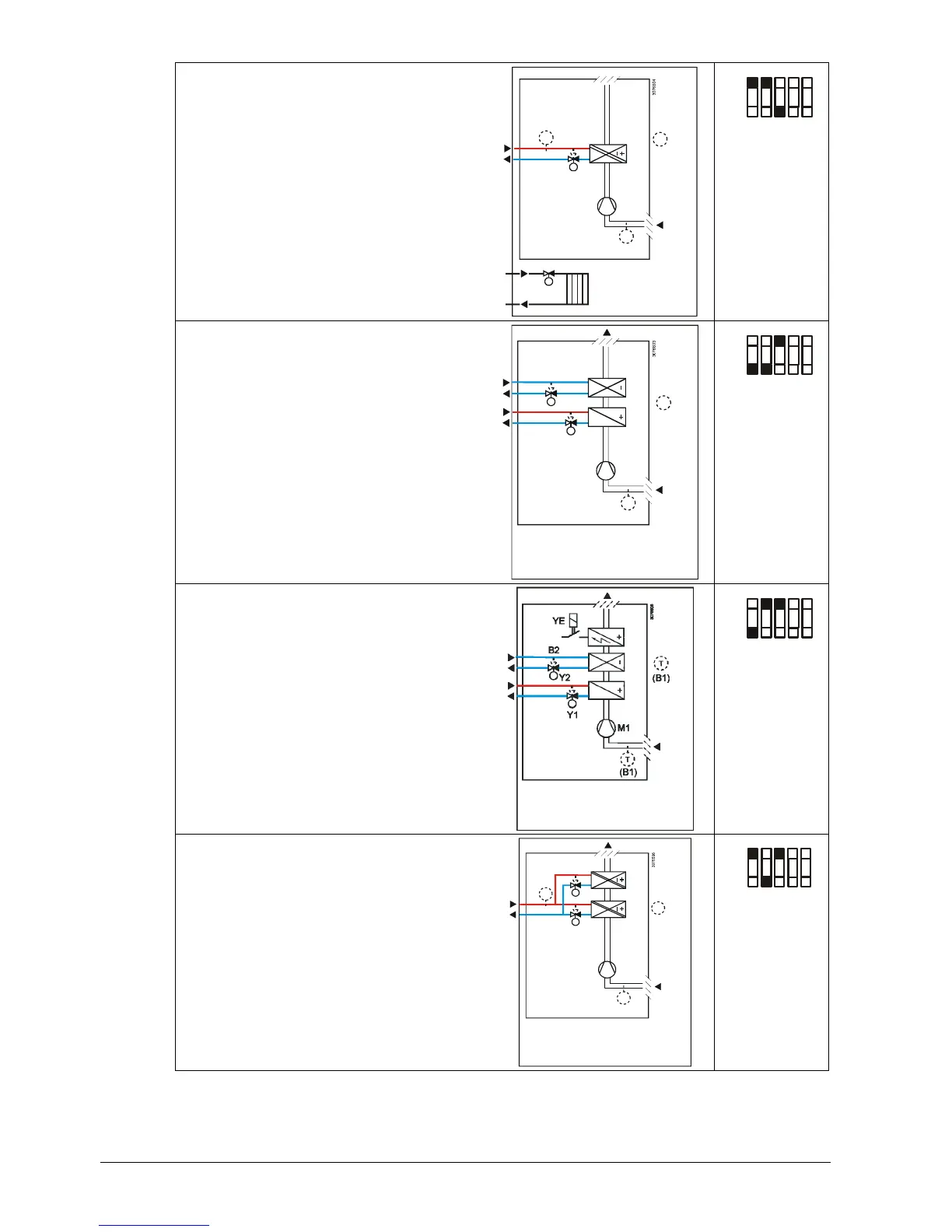

Heating or cooling and radiator / floor
heating
 2-pipe fan coil unit and radiator
 Chilled / heated ceiling and radiator
(B1)
M1
Y1
T
B2
T
T
(B1)
YR
1 2 3 4 5
ON
OFF
Heating and cooling
 4-pipe fan coil unit
 Chilled ceiling and radiator
T
Y2
Y1
M1
(B1)
T
(B1)
1 2 3 4 5
ON
OFF
Heating and cooling and electric heater
 4-pipe fan coil unit and electric heater
1 2 3 4 5
ON
OFF
2-stage heating or cooling
 2-stage fan coil unit
 2-stage chilled / heated ceiling
Y1
M1
T
B2
T
(B1)
T
(B1)
Y2
1 2 3 4 5
ON
OFF
Use P46 / P47 to change output from ON/OFF (factory setting) to PWM
Use DIP switches 4 and 5 to change output from ON/OFF to 3-position
Note
