Siemens RDG100KN - Display

7 / 14
Siemens RDG100KN Room thermostat with KNX communications CE1N3191en
Building Technologies 01 Jun 2010

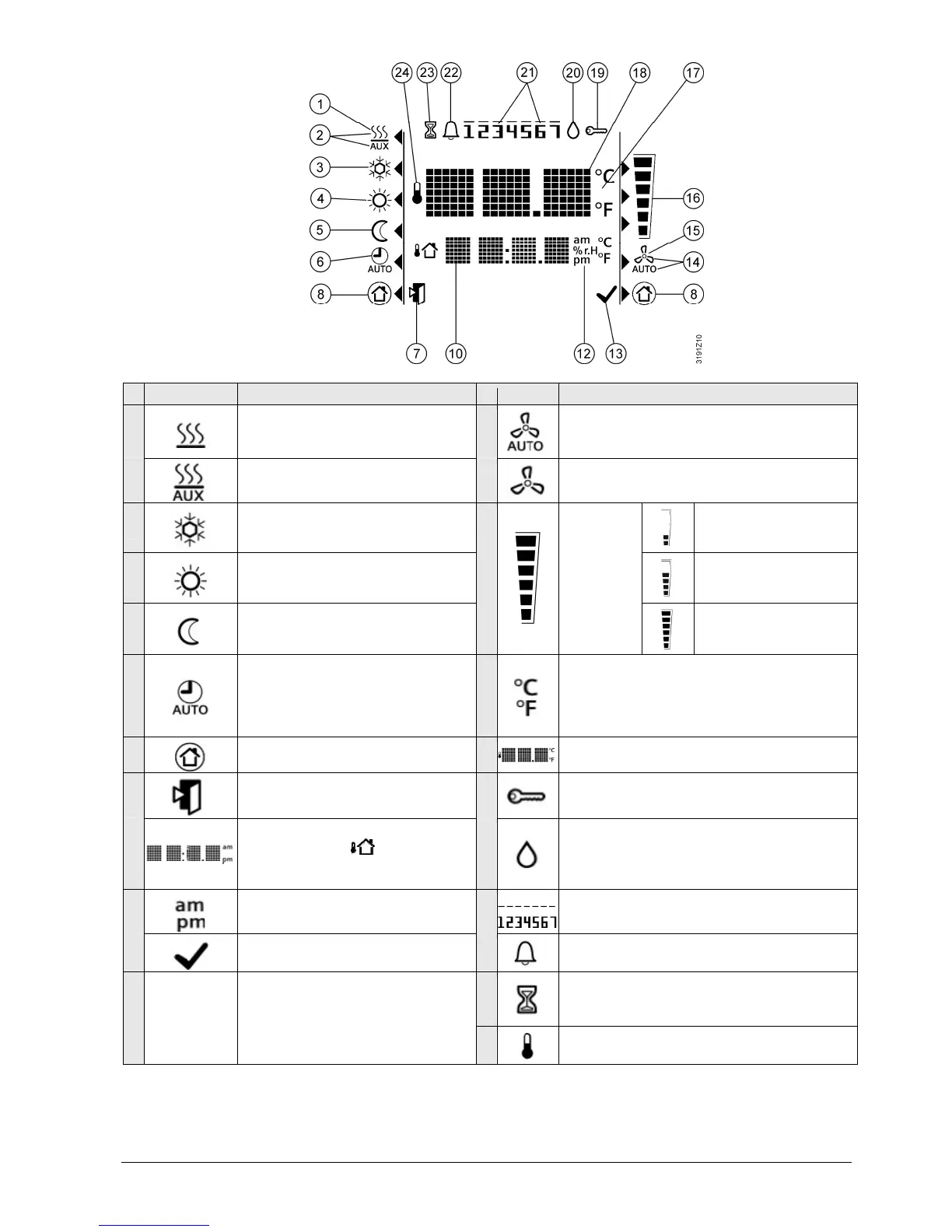

# Symbol Description # Symbol Description
1
Heating mode
14
Automatic fan
2
Heating mode,
electric heater active
15
Manual fan
3
Cooling mode
Fan speed 1
4
Comfort Fan speed 2
5
Economy
16
Fan speed
Fan speed 3
6
Auto Timer mode according to
schedule (via KNX)
17
Degrees Celsius
Degrees Fahrenheit
8
Protection mode
18 Digits for room temperature and setpoint display
9
Escape 19
Button lock
10
Additional user information, like out-
door temperature
or time of day
from KNX bus. Selectable via
parameters
20
Condensation in room (dewpoint sensor active)
12
Morning: 12-hour format
Afternoon: 12-hour format
21
Weekday 1…7 from KNX bus
1 = Monday / 7 = Sunday
13
Confirmation of parameters 22 Fault
23
Temporary timer function; visible when
operating mode is temporarily extended
(extended presence or absence)
24
Indicates that room temperature is displayed
Display
