Siemens RDH100 User Manual

8/10
Siemens Room temperature controllers CE1N3070en
Building Technologies 20.11.2007
Application examples
T
T
F1
F2
N2
M1
Y2
2255S01
N1
T
F1
F2
N2
M1
Y2
2255S02
T T
T
N1

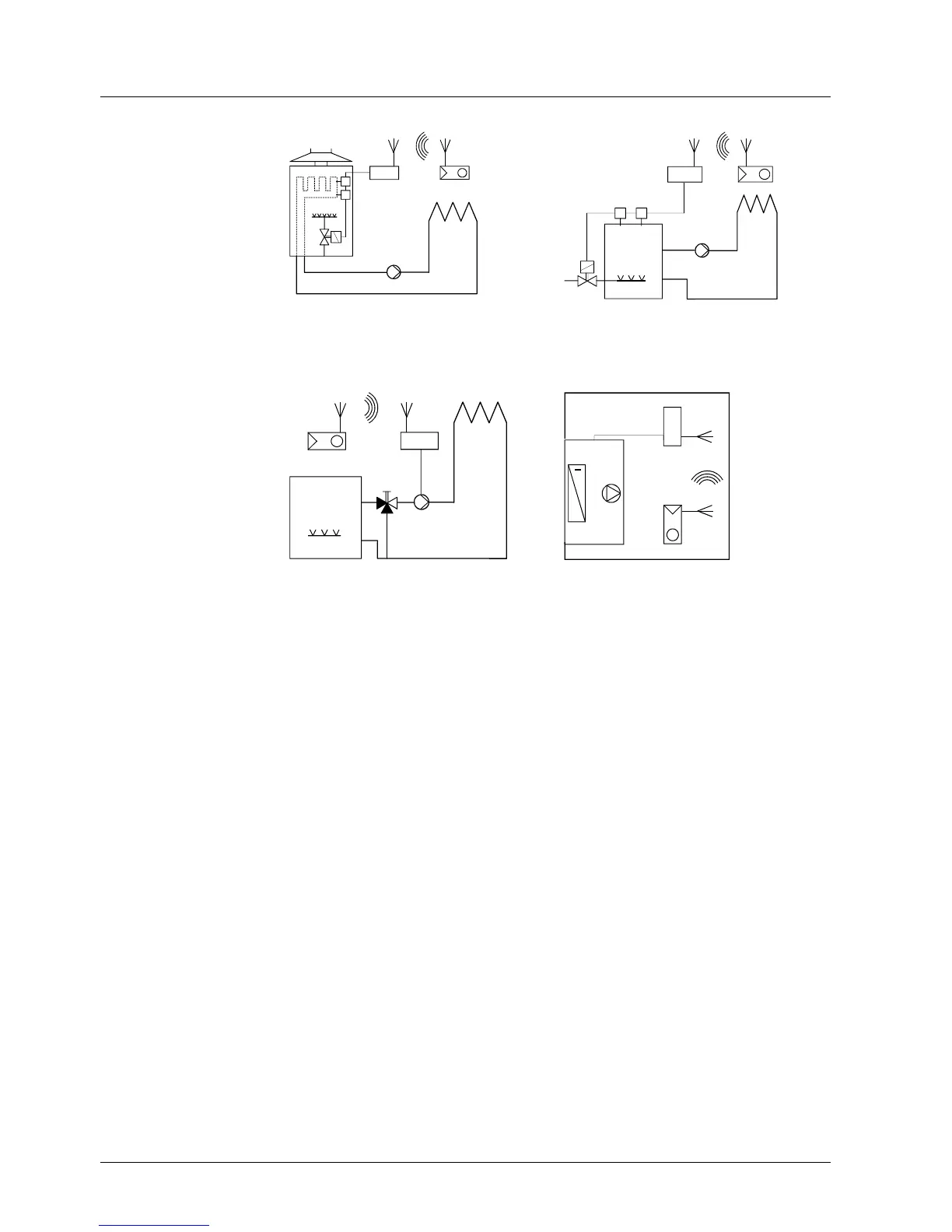

Wireless room temperature controller with
receiver control of a gas-fired wall-hung
boiler
Wireless room temperature controller with
receiver control of atmospheric gas burner
Y1
2252S04
M1
N2
T
N1
T
N1
2255S05
E1
N2
Wireless room temperature controller with
receiver control of a heating circuit pump
(precontrol by manual mixing valve)
Wireless room temperature controller with
receiver control of cooling equipment
F1 Thermal reset limit thermostat
F2 Safety limit thermostat
M1 Circulating pump
E1 Cooling equipment
N1 Room temperature controller RDH10RF
N2 Receiver RCR10/433
Y1 3-port valve with manual adjustment
Y2 Magnetic valve

Siemens RDH100 Specifications

General

Temperature control range	5 °C to 30 °C
Display	LCD
Mounting type	Wall-mounted
Type	Room Thermostat
Switching Voltage	230 V AC
Protection Class	IP30
Accuracy	±0.5 °C
Power supply	2 x AA 1.5 V
Control Mode	On/Off
