Mechanical design

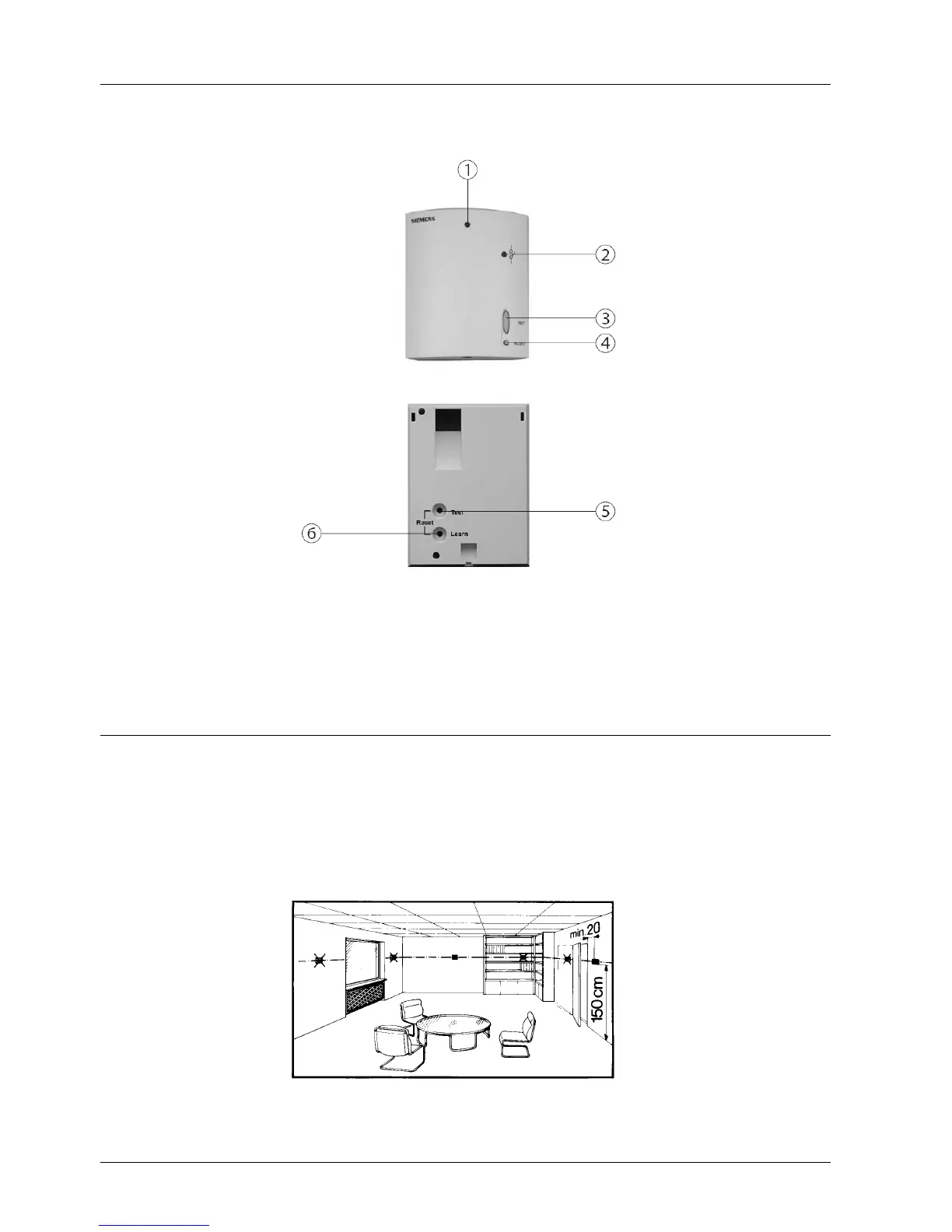

The RCR10/433 receiver is located in a plastic housing with LEDs and buttons.
1 LED signal indicator
2 LED relay indicator
3 SET button
4 RESET button
5 Test button
6 Learn button
Notes
Mount the room temperature controller in a location where the air temperature can be
acquired as accurately as possible without getting adversely affected by direct solar
radiation or other heat or refrigeration sources.
The controller can also be used in a portable manner. It features a fold-out stand allow-
ing it to be placed on a horizontal surface such as a bedside table.
Mounting height is about 1.5 m above the floor.
The unit can be fitted to a recessed conduit box.
Key

Siemens RDH100 Specifications

General

Temperature control range	5 °C to 30 °C
Display	LCD
Mounting type	Wall-mounted
Type	Room Thermostat
Switching Voltage	230 V AC
Protection Class	IP30
Accuracy	±0.5 °C
Power supply	2 x AA 1.5 V
Control Mode	On/Off
