Siemens REV100 - Type Summary; Mechanical Design; Display and Operating Elements

2/8
Siemens Building Technologies Room temperature controller REV100 CE1N2211en
Landis & Staefa Division 16.05.2000
7\SHVXPPDU\
Room temperature controller with 24-hour time switch 5(9
When ordering, please give type reference according to "Type summary".
The unit is supplied complete with batteries.
0HFKDQLFDOGHVLJQ
Plastic casing with a large display which also serves as a touch screen. A hinged bat-
tery compartment cover facilitates the straightforward exchange of the two 1.5 V alka-
line batteries type AA. The base can be removed and fitted to all commercially available
recessed conduit boxes or directly on the wall, to be wired before the control- ler is
fitted. The casing accommodates the electronics with a ',3switch and a relay with a
potential-free N.O. contact. The connection terminals are integrated in the base.
2211D11
5
1
2
6
3
4
7
Temperature values and symbols
Normal temperature
Economy temperature
Standby with frost protection
Time of day or switching time
Change batteries
Bumer in operation
Remote control active
Locking of display active
Holiday program active
Increasing ,decreasing values
24-hour operation with one heating period
24-hour operation with two heating periods
Continuously normal temperature
Continuously economy temperature
Standby with frost protection
For the switching times 1 to 4
For switching manually from normal to economy temperature, or vice
versa
Opening for locking the display or for the reset
2UGHULQJDQG
GHOLYHU\

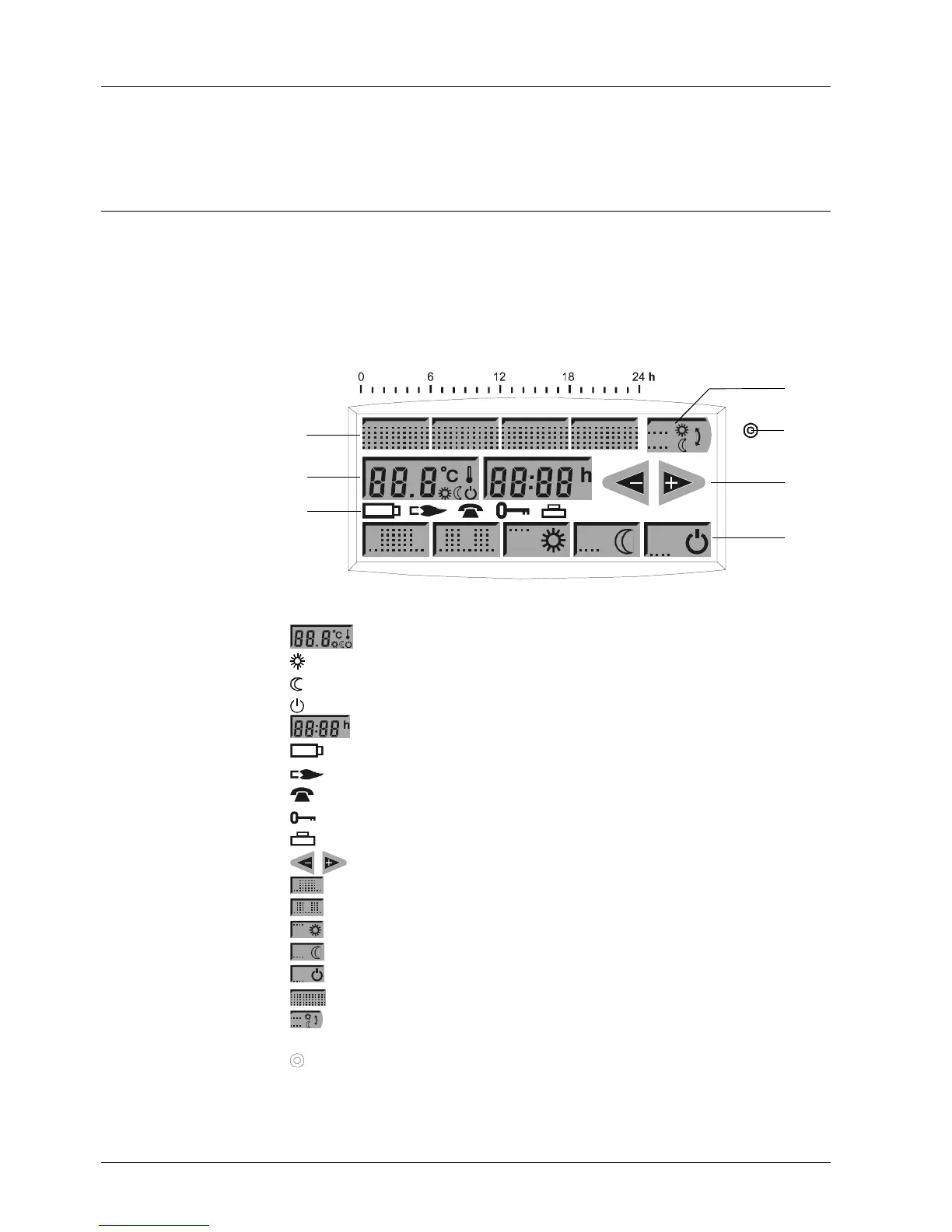

'LVSOD\DQGRSHUDWLQJ
HOHPHQWV
1 Display buttons
2 Symbols
3 Arrow buttons
4 Operating mode buttons
5 Switching time buttons
6 Level button
7 Locking ,reset
