Siemens REV23 Operating Instructions

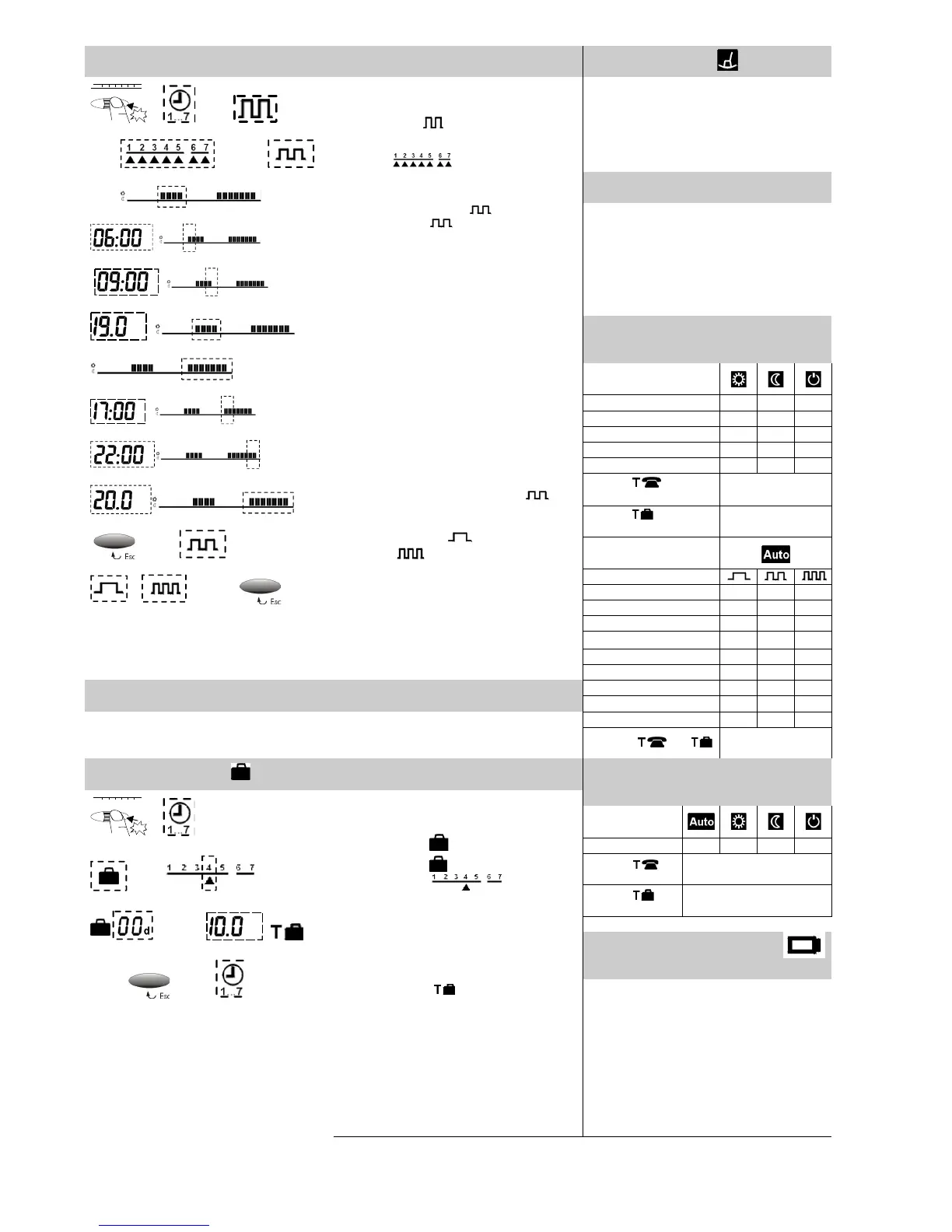

Settings for automatic operation with 2 heating periods
24-hour operation
24-hour operation with only one heating period (the
heating period will automatically be generated from
the current 24-hour program).
Start of the first heating period, end of the second
heating period, plus the currently adjusted comfort
temperature setpoint.
Retrieving the default values
Press the button behind the small opening for at
least one second, thus resetting the user-specific
settings to their default values (the heating engineer
settings will remain unchanged).
The clock starts at 12:00.
When making a reset, all display fields will light up.
Default values
Factory settings for heating
Operating mode
Start of continuous operation
00:00 00:00 00:00
End of continuous operations
24:00 24:00 24:00
Setpoint of comfort mode
19 °C
Setpoint of economy mode
16 °C
Setpoint frost protection
5 °C
Setpoint
remote operation
10 °C
Setpoint
absence
12 °C
Operating mode
Selected periods
Start of period 1
07:00 06:00 06:00
End of period 1
23:00 08:00 08:00
Start of period 2 17:00 11:00
End of period 2 22:00 13:00
Start of period 3 17:00
CLICK
ð
ð ð
ð ð
h
ð
h
ð
° C
ð
ð
h
ð
h
ð
° C
ð
ð ð
/
ð
If no button is pressed for 10 seconds, the setting
displayed will be accepted and the initial display
restored.
1. Press: You access the menu level;
the
clock flashes.
2. Roll: Twice toward the display;
menu
flashes.
3. Press: You accept the menu;
the day selection symbol
flashes.
4. Roll: Select the days, the working days, the
weekend or the week.
5. Press: You save the selection made;
heating period flashes.
6. Press: Accept
; heating period 1 flashes.
7. Press: You accept
heating period 1;
start time of heating period 1 flashes.
8. Roll: Set the
start time of heating period 1.
9. Press: You save the input;
end time of heating period 1 flashes.
10. Roll: Set the
end time of heating period 1.
11. Press: You save the input;
setpoint of heating period 1 flashes.
12. Roll: Set the
setpoint of heating period 1.
13. Press: You save the input;
heating period 2 flashes.
14. Press: You accept
heating period 2;
start time of heating period 2 flashes.
15. Roll: Set the
start time of heating period 2.
16. Press: You save the input;
end time of heating period 2 flashes.
17. Roll: Set the
end time of heating period 2.
18. Press: You save the input;
setpoint of heating period 2 flashes.
19. Roll: Set the
setpoint of heating period 2.
20. Press the Esc button to return to the
heating
periods
menu:
Menu item
heating periods
flashes.
21. Roll: Toward the display or away from it to
menu item
or heating periods
(Change not necessarily required; press
the Esc button several times to leave
the menu level in several steps, thus
returning to the initial display.)
End of period 3 22:00
Setpoint of period 1
19 °C 19 °C 19 °C
Settings for automatic operation with 1 or 3 heating periods
Setpoint of period 2 20 °C 20 °C
Setpoint of period 3 21 °C
The procedure to be followed is the same as that for automatic operation with 2 heating periods the only
difference being that, in addition, a setpoint for heating period 3 can be entered (standard setting 21 °C).
Setpoints and
See above
Absence / holidays
Default values
Factory settings for cooling
Operating mode
Setpoint 23 °C 23 °C 29 °C 35 °C
Setpoint
remote operation
30 °C
Setpoint
absence
30 °C
Changing the batteries
2 Alkaline batteries type AA 1.5 V
1. Press: You access the menu level;
the
clock flashes.
2. Roll: Away from the display,
menu
flashes.
3. Press: Accept
;
symbol
flashes.
4. Roll: Set the start (weekday) of your
absence.
5. Press: You save the input;
the number of days flash.
6. Roll: Set the duration of your absence;
number of days (max. 99)
7. Press: You save the input;
setpoint
flashes.
8. Roll: Set the temperature.
9. Press the Esc button to return to the menu level;
the
clock flashes.
(Change not necessarily required; press
the Esc button again to return to the
initial display.)
When this symbol appears, the batteries must be
replaced within 3 months.
1. Remove controller from its base.
2. Open battery compartment at the rear and
replace the batteries.
3. Close battery compartment and replace the
controller.
Note:
When changing the batteries, the current data are
maintained for a maximum of one minute.
CLICK
ð
ð ð
ð
° C
ð ð
If no button is pressed for 10 seconds, the setting
displayed will be accepted and the initial display will
appear again.
Siemens SBT / HVAC Products CE1B2264en 12.03.2002
