Introduction
1.2Description
• 20 AWG Galvanized Steel
• DIN or panel mounting options provide secure mechanical reliability
• [Optional] Conformal coated printed circuit boards
Power Supply
• Fully integrated power supply
• Universal high-voltage range:
• 125-250 VDC or 100-240 VAC (Hazardous Environments)
• 88-300 VDC or 85-264 VAC (Non-Hazardous Environments)
• Dual LO DC inputs: 24 or 48 VDC
• Terminal blocks for reliable maintenance free connections
• CSA/UL 62368-1 safety approved to 85 °C (185 °F)
1.2 Description

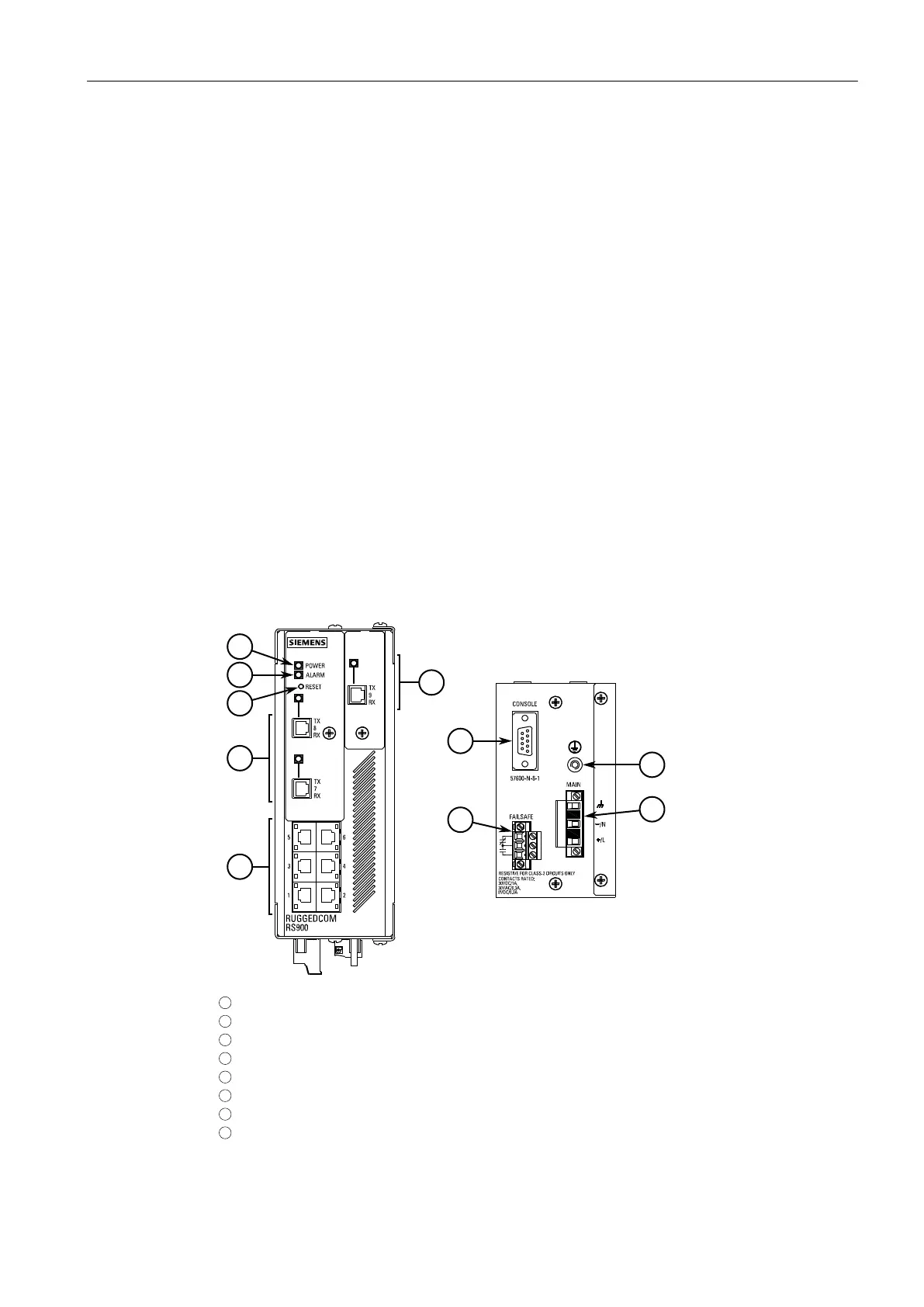

The RUGGEDCOM RS900 features various ports, controls and indicator LEDs on the
front panel for connecting, configuring and troubleshooting the device.
6
2
3
1
5
4
4
7
8
9
1
POWER LED
2
ALARM LED
3
RESET Button
4
[Optional] Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports
5
Copper (10/100Base-TX) Ethernet Ports
6
RS232 Console Port (Serial)
7
Failsafe Alarm Relay
8
Chassis Ground Connection
2
RUGGEDCOM RS900
Installation Manual, 12/2020, C79000-G8976-1024-12
