Siemens RUGGEDCOM RS900G Installation Guide

RUGGEDCOM RS900G
Installation Guide
Chapter 2
Installing the Device
Mounting the Device to a Panel 7
2
1
2
1

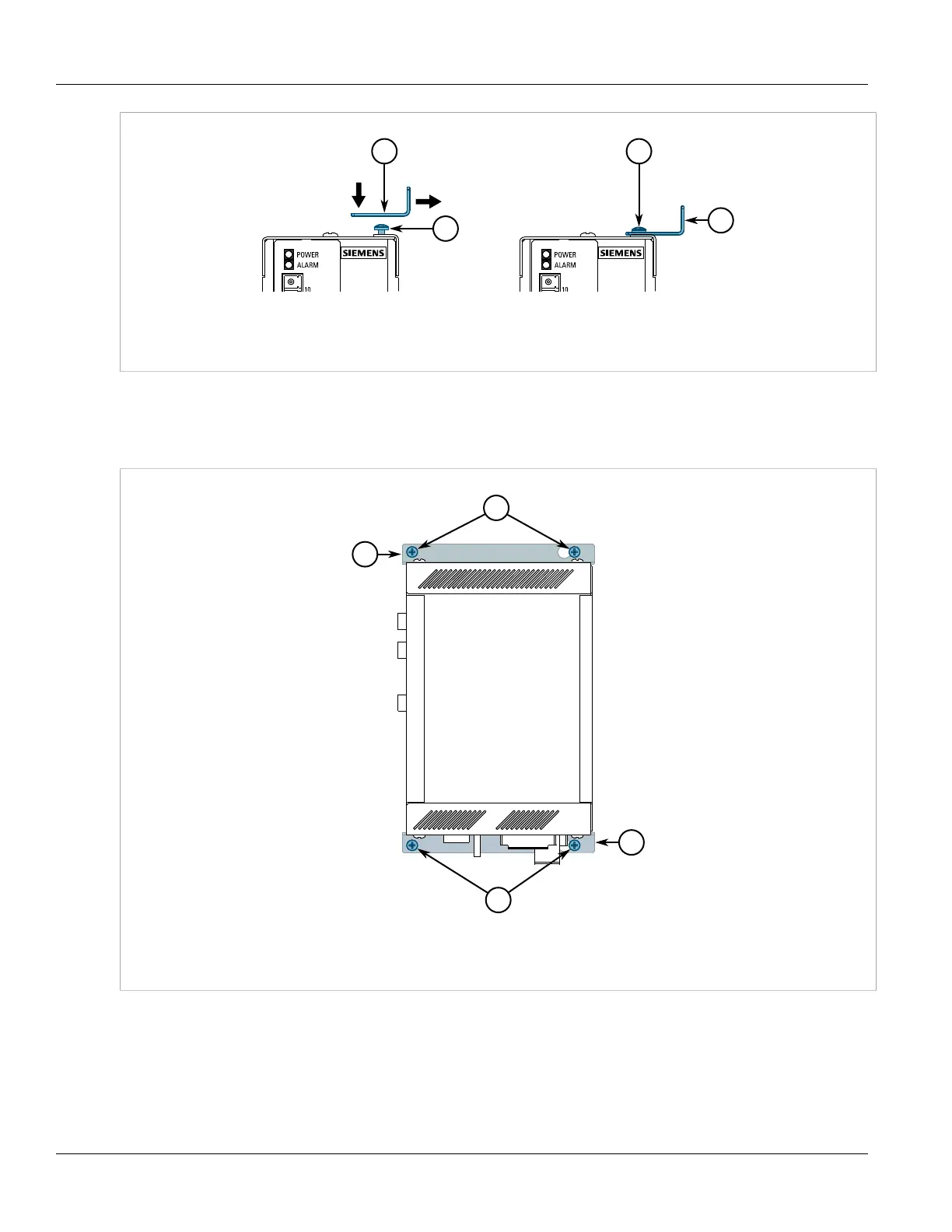

Figure 3: Installing the Panel Adapters
1. Panel Adapter 2. Screw
2. For both adapters, align the slots with the screws and then slide the adapters onto the device.
3. Tighten the screws to secure the adapters.
4. Place the device against the panel and align the adapters with the mounting holes.
1
2
2
1
Figure 4: Panel Mounting
1. Screw 2. Panel Adapter
5. Using two #6-32 screws for each adapter, secure the device to the panel.
