RUGGEDCOM RS900G
Installation Guide
Chapter 3
Communication Ports
Fiber Optic Ethernet Ports 15
Name
Pin
10/100Base-TX 1000Base-TX
Description
6 TX- BI_DA- Transmit Data-
or Bi-Directional
7 Reserved (Do Not Connect)
8 Reserved (Do Not Connect)
96
5
1

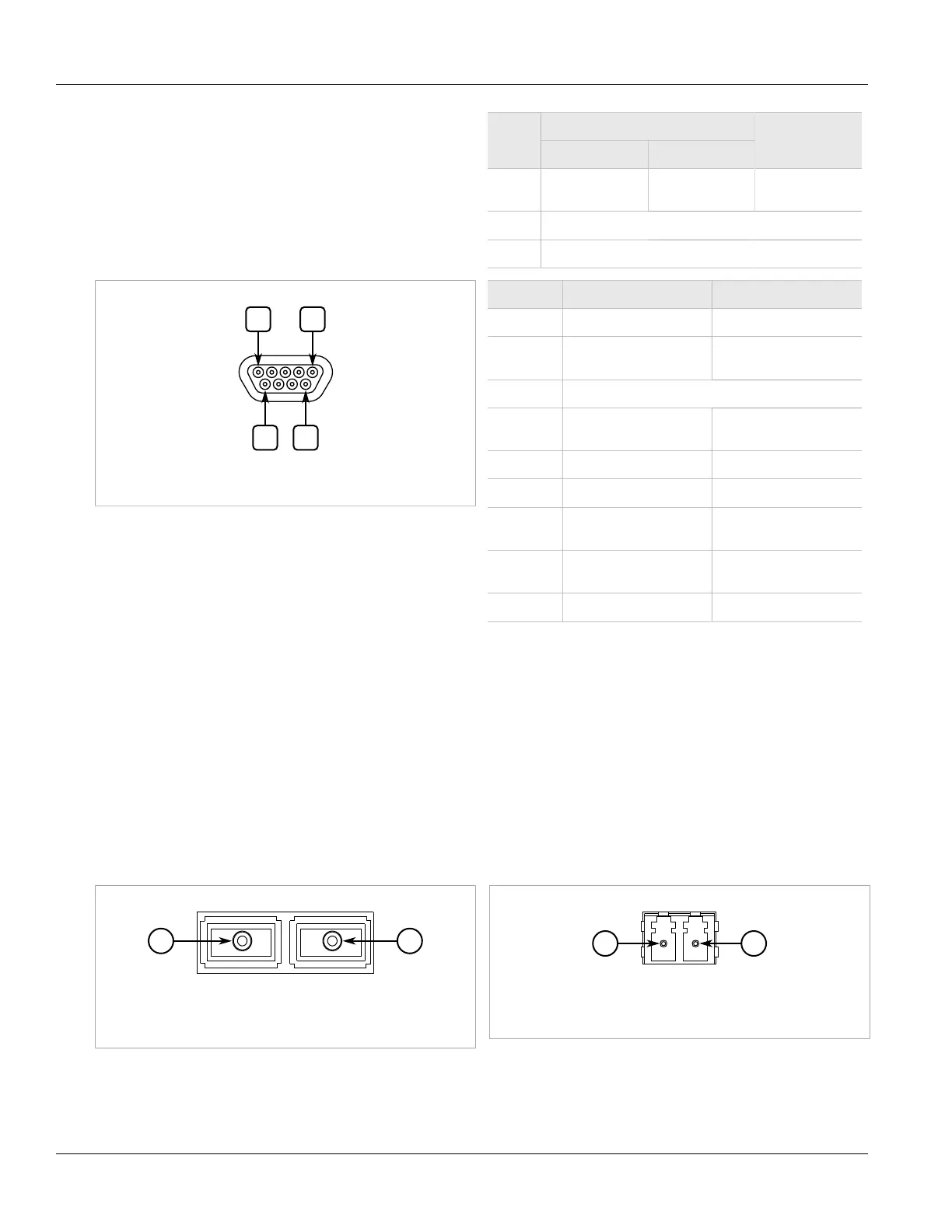

Figure 14: Micro-D Port Pin Configuration
Pin 10/100Base-TX 1000Base-TX
1 RX+ A+
2 Reserved (Do
Not Connect)
C+
3 Reserved (Do Not Connect)
4 Reserved (Do
Not Connect)
D+
5 TX+ B+
6 RX- A-
7 Reserved (Do
Not Connect)
C-
8 Reserved (Do
Not Connect)
D-
9 TX- B-
Specifications
For further specifications, refer to Section 4.3, “Copper Ethernet Port Specifications”.
Section 3.3
Fiber Optic Ethernet Ports
Optional 100Base-FX, 1000Base-SX and 1000Base-LX fiber optic Ethernet ports are available for ports 9 and 10
with either LC (Lucent Connector), SC (Standard or Subscriber Connector) connectors. Make sure the Transmit
(Tx) and Receive (Rx) connections of each port are properly connected and matched to establish a proper link.
21
Figure 15: SC Connector
1. Tx Connector 2. Rx Connector
21
Figure 16: LC Connector
1. Tx Connector 2. Rx Connector
For further specifications, refer to Section 4.4, “Fiber Optic Ethernet Port Specifications”.
