Chapter 2
Installing the Device
RUGGEDCOM RX1500
Installation Guide
8 Mounting the Device to a Panel
2. Install one of the supplied screws on either side of the device to secure the adapters to the DIN rails.
Section 2.1.3
Mounting the Device to a Panel
For panel installations, the RX1500 can be equipped with panel/DIN rail adapters pre-installed on each side of
the chassis. The adapters allow the device to be attached to a panel using screws.
To mount the device to a panel, do the following:
1. Place the device against the panel and align the adapters with the mounting holes.

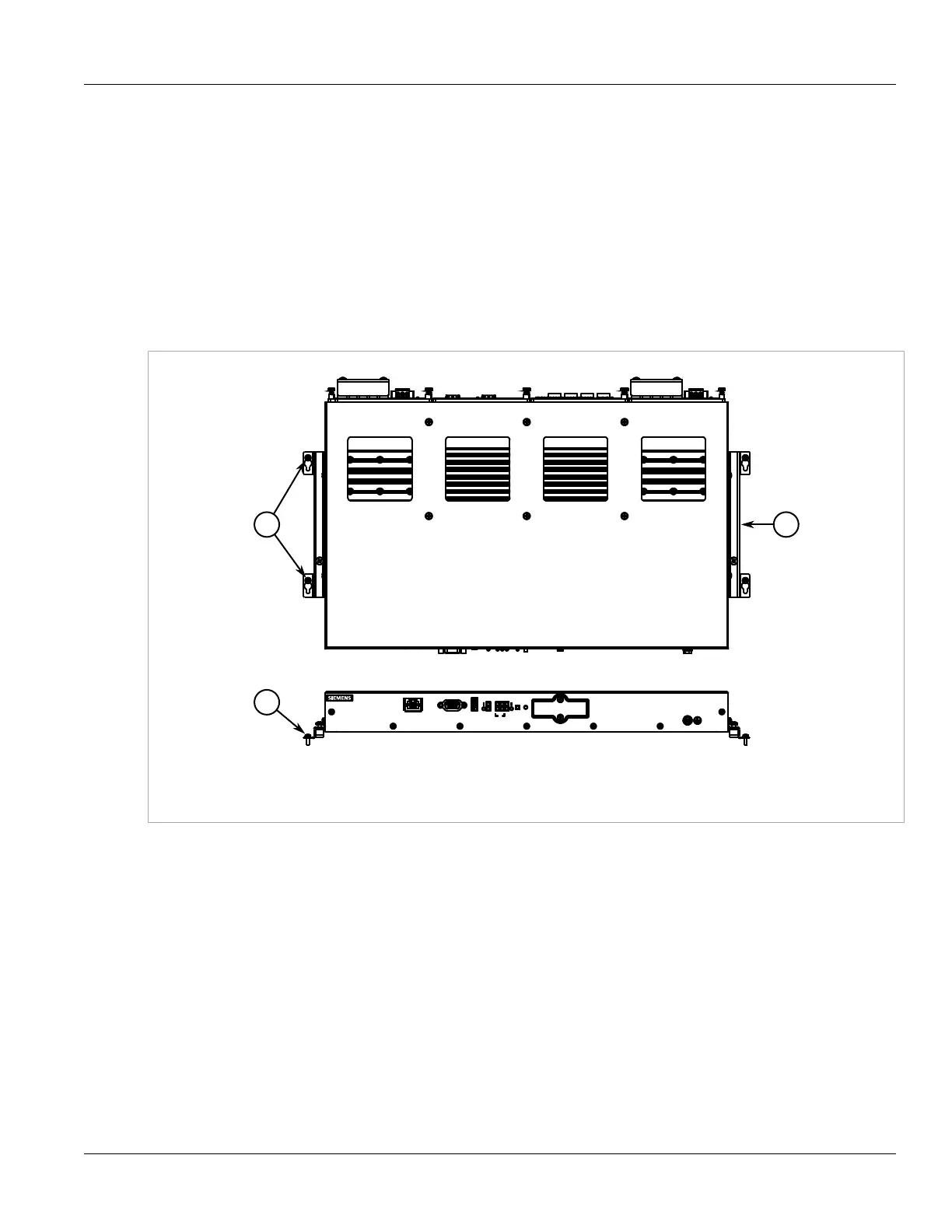

Figure 4: Panel Mounting
1. Screw 2. Panel/DIN Rail Adapter
2. Install the supplied screws to secure the adapters to the panel.
Section 2.2
Connecting Power
The RX1500 supports dual redundant high AC, high DC and/or low DC power supplies that can be installed in
any combination. The use of two power modules is recommended to provide redundancy and load balancing.
The RX1500 can be equipped with either a screw-type or pluggable terminal block. The screw-type terminal
block is installed using Phillips screws and compression plates, allowing either bare wire connections or crimped
terminal lugs. Use #6 size ring lugs for secure, reliable connections under severe shock or vibration.
