Siemens RUGGEDCOM RX1512 User Manual

RUGGEDCOM RX1500
Installation Guide
Chapter 3
Communication Ports
Installing/Removing Modules 35
Section 3.9
Installing/Removing Modules
The following sections describe how to install and remove modules:
• Section 3.9.1, “Installing a Module”
• Section 3.9.2, “Removing a Module”
Section 3.9.1
Installing a Module
Upon installing a new module in the device, all the features associated to the module are available in the
operating system. For more information, refer to the ROX II User Guide for the RX1500.
To install a module, do the following:
1. Make sure power to the device has been disconnected and wait approximately two minutes for any
remaining energy to dissipate.
2. If the device is installed in a rack, remove it from the rack.
3. Remove the current module from the slot. For more information, refer to Section 3.9.2, “Removing a Module”.
4. Insert the new module into the slot.
1
2
3

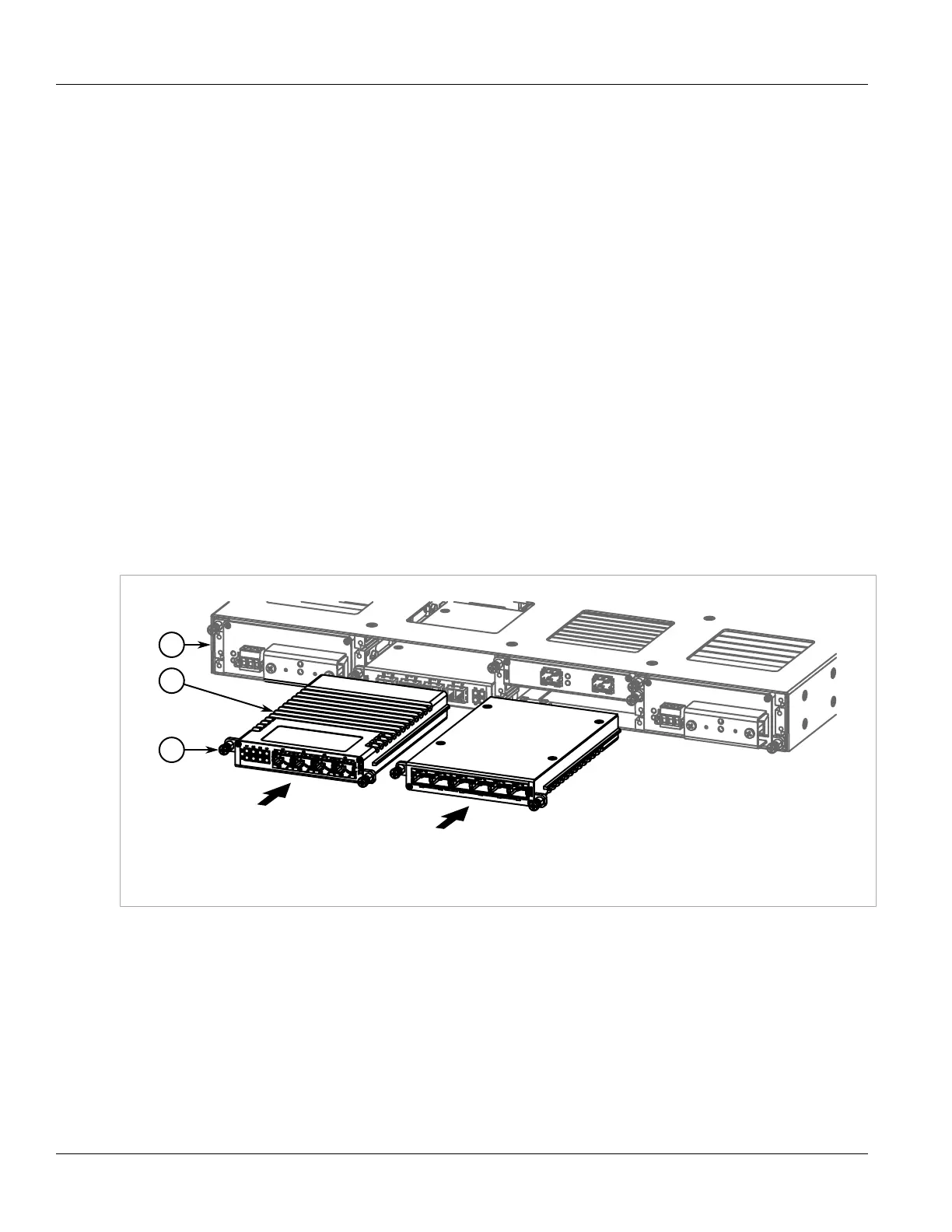

Figure 51: Installing a Module
1. Module 2. Chassis 3. Screw
5. Tighten the screws to secure the module.
6. If necessary, install the device in the rack.
7. Connect power to the device.
