Siemens RUGGEDCOM WIN5123 Installation Guide

RUGGEDCOM WIN5214
Installation Guide
Chapter 1
Introduction
Description 3
RSSI
W.LINK PWR
2
1
3
ETH/PWR
RSSI
W.LINK PWR
4
5

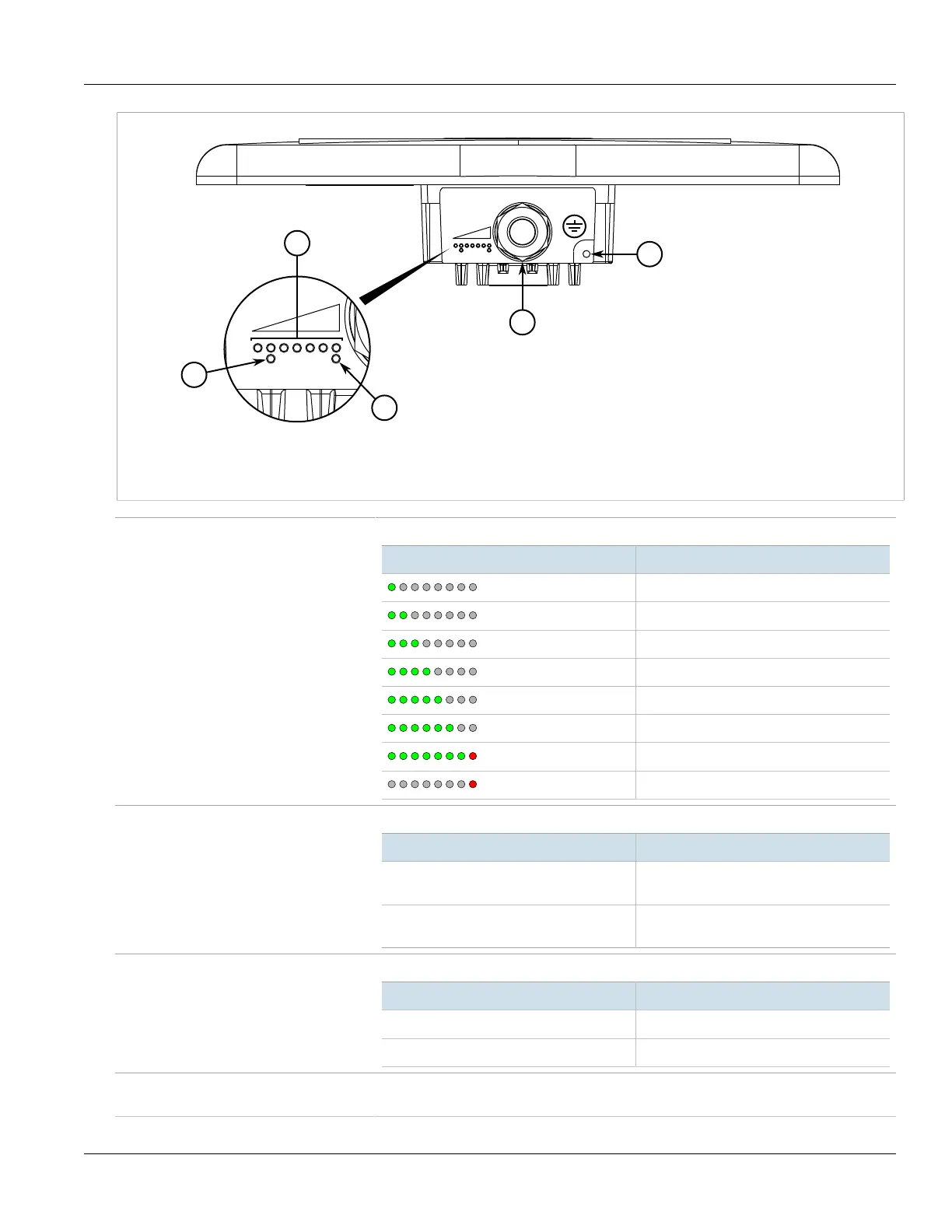

Figure1:RUGGEDCOM WIN5214
1.RSSI LEDs 2.W.LINK LED 3.PWR LED 4.ETH/PWR Port 5.Chassis Ground
RSSI LEDs Indicates the received signal strength.
LED RSSI Level
< -90
-85 to -90
-80 to -85
-75 to -80
-70 to -75
-65 to -70
-20 to -60
> -20
W.LINK LED Indicates when the subscriber unit is connected with a base station.
State Description
Green (Solid) Subscriber unit is connected to the base
station and receiving services.
Green (Blinking) Link between the subscriber unit and the
base station is down.
PWR LED Indicates when power is supplied to the subscriber unit.
State Description
Green Power is on.
Off Power is off.
ETH/PWR Port A copper RJ45 PoE port for data and power. For more information about connecting data and
power, refer to Section2.7, “Connecting Power and Data”.
