Siemens RWB27 Timeswitch User Manual

How do I copy the
ON/OFF times?

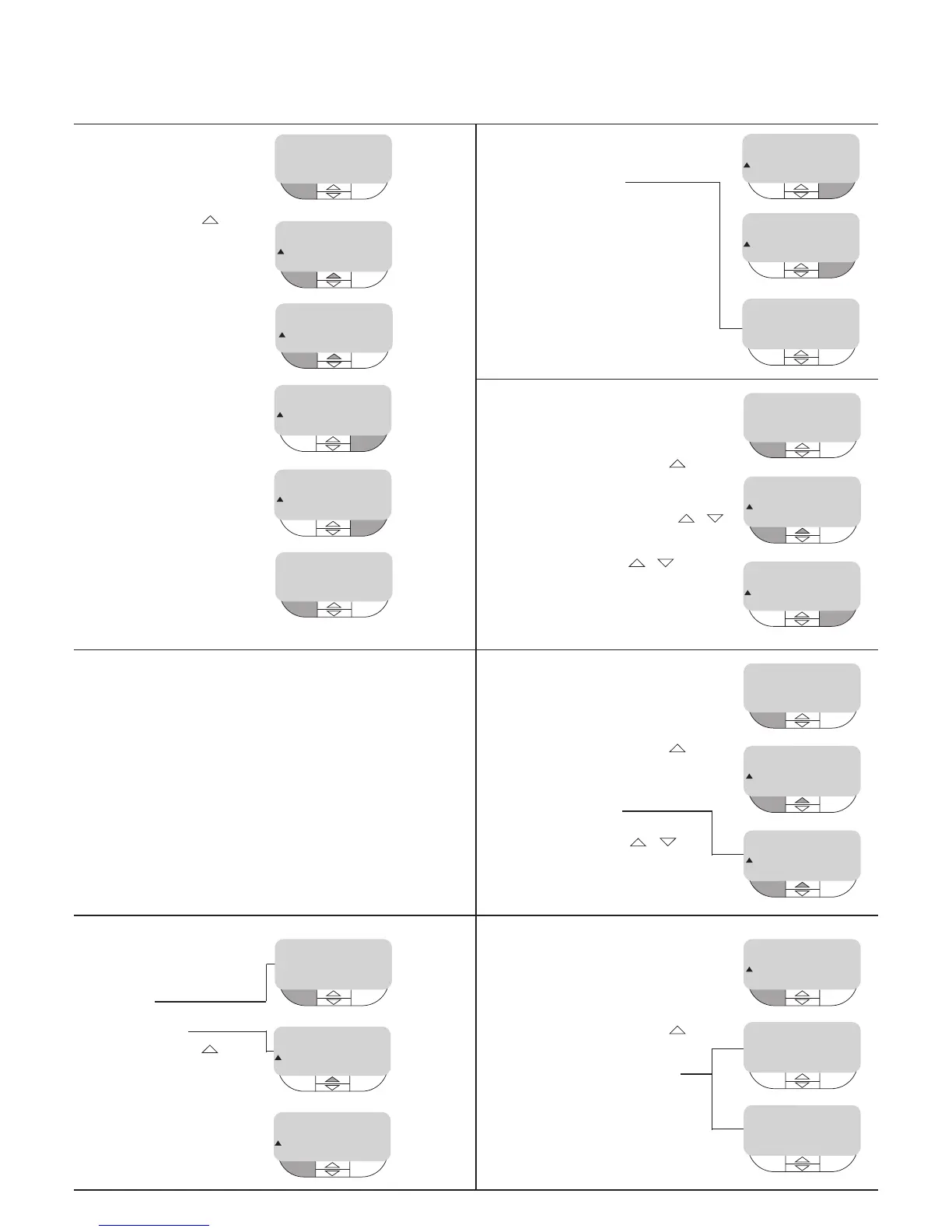

To copy times from one day to the next...
• Press left hand button MENU
• Press top middle button
until SET PROGRAM is shown
• Press left hand button SELECT,
SET MONDAY will be shown, press
top middle button until the day you
want to copy is shown, then press
bottom middle button display will
show COPY MON
➞ with TUE
flashing,
MENU
3:37 PM
CH
OFF
MAN
SET PROGRAM
SELECT EXIT
CH
OFF
MAN
3:37 PM
COPY MON➞TUE
SELECT BACK
• Press SELECT, continue pressing
SELECT until all days you want to
copy are entered
• Press right hand button BACK
• Press right hand button EXIT to
return to MENU
The copy option can be used after
completion of any days programming
COPY SAT➞SUN
SELECT BACK
COPY TUE➞WED
SELECT BACK
MENU
3:37 PM
CH
OFF
MAN
What do the switching options mean?
AUTO
This means that the RWB27 will switch ON and OFF according to
the programmed times
MANUAL OFF
This means that the RWB27 will be permanently OFF
MANUAL ON
This means that the RWB27 will be permanently ON
ONCE
This means that the RWB27 will switch ON at the first ON time and
switch OFF at the last OFF time you have programmed ignoring
any ON/OFF times in between. This is also referred to as All Day.
How do I select my four
switching options?
• Press left hand button MENU
Display shows
• Press left hand button SELECT
twice, Display shows
• Press top middle button until
your switching option is displayed
AUTO*
MANUAL OFF*
MANUAL ON*
ONCE*
*see previous sections for details
• Choose desired option by pressing
ENTER
(continued on top of next column)
AUTO
ENTER BACK
MANUAL OFF
ENTER BACK
SET STATUS
SELECT EXIT
CH
OFF
MAN
3:37 PM
• Press right hand button BACK
• Press right hand button EXIT
Display shows
AUTO
ENTER BACK
SET STATUS
SELECT EXIT
MENU
CH
OFF AUTO
UNTIL
3:37 PM
10:30
AM
How do I change winter and
summer times?
• Press left hand button MENU
• Press top middle button
until SET DAY/TIME is shown
• Press left hand button SELECT
• Set day of the week using +/-
buttons, when correct day is shown
press left hand button ENTER
• Alter time using +/- buttons,
when correct time is shown press
left hand button ENTER, press right
hand button BACK then press right
hand button again EXIT to return to
MENU display
SET DAY/TIME
SELECT EXIT
MENU
3:37 PM
CH
OFF
MAN
3:37 PM
SET THE TIME
SELECT EXIT
4:37 PM
How do I set my holiday
program?
• Press left hand button MENU
• Press top middle button
until SET HOLIDAY is shown
• Press left hand button SELECT
display shows
number of holiday days will
flash, change amount of days
(1-99) by using +/- , when
desired amount of days is in the
display press left hand button
ENTER, then right hand button
EXIT to return to MENU
SET HOLIDAY
SELECT EXIT
ADJUST DAYS
ENTER +/- BACK
MENU
3:37 PM
CH
OFF
MAN
3:37 PM
20
CH
OFF
MAN
How do I activate my holiday
program?
• Press left hand button MENU
SET STATUS is shown,
press SELECT
• Press top middle button
until HOLIDAY is shown
• Press left hand button SELECT
display will flash as shown
your system is now in HOLIDAY
mode (OFF) and will countdown
the amount of days you have set
it for, at the end of which it will
automatically go back to your
normal set program.
You can also press CANCEL to
return to normal program mode.
HOLIDAY
SELECT BACK
HOLIDAY MODE
MENU CANCEL
3:37 PM
3:37 PM
RE 20 DAYS
MENU CANCEL
CH
OFF
MAN
3:37 PM

Siemens RWB27 Timeswitch Specifications

General

Type	Timeswitch
Model	RWB27
Brand	Siemens
Voltage	230V AC
Frequency	50Hz
Switching Current	16A
Number of Channels	1
Battery Backup	Yes
Protection Class	IP30
Programming	7-day
