Dis-assembling the S45/ME45
A case opener is needed to disengage the latch of the S45/ME45 casing. This case opener
is exactly the same as the P35 Series.

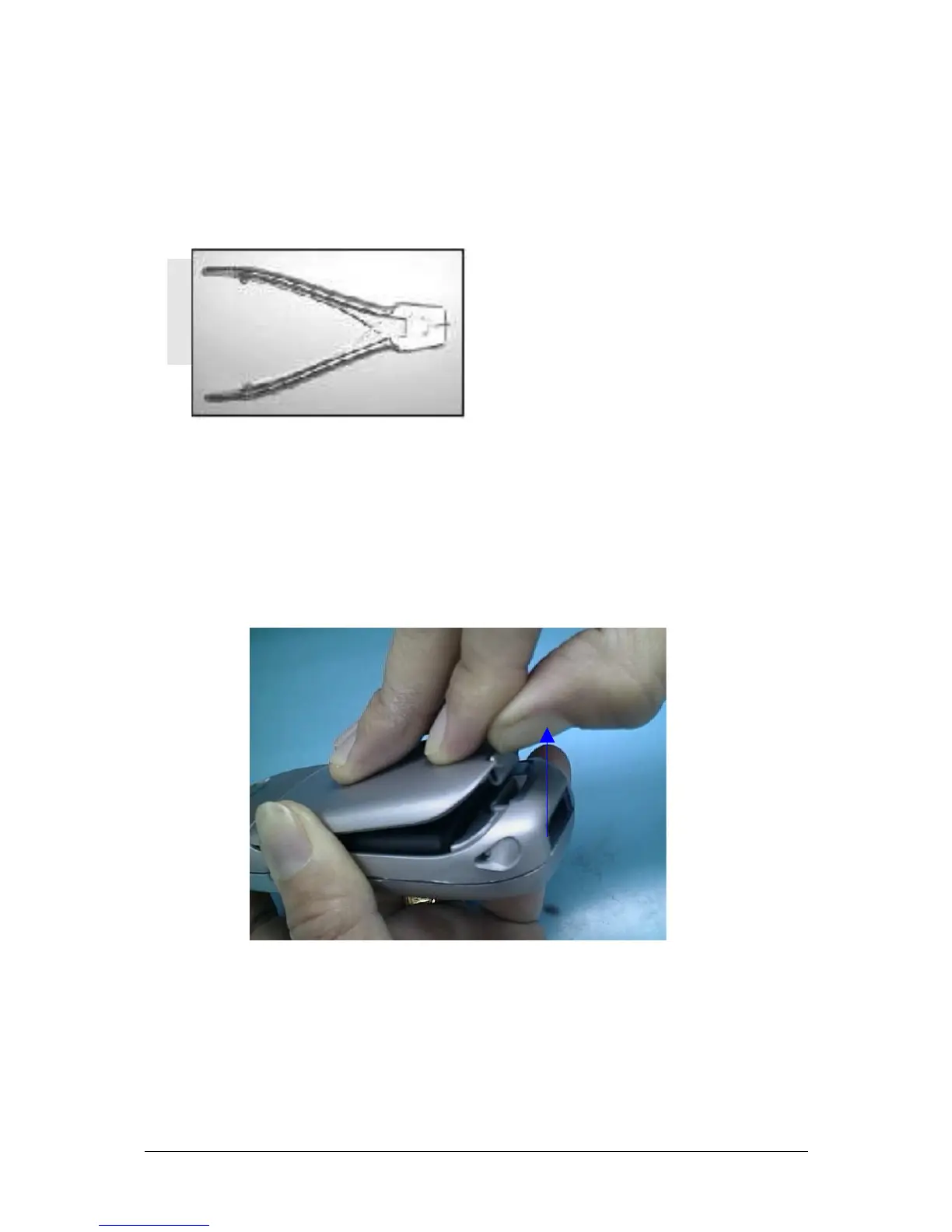

PHOTO 2.2 S4/ME45 CASE OPENER
The part number for this mandatory tool is F30032-P46-A1
Refer to ANNEX B of Chapter 3 for Service Equipment List.
STEP 1:
Photo 2.3 Battery cover removing
Remove the battery cover as shown in PHOTO 2.3.
STEP 2:
