STEP 6:

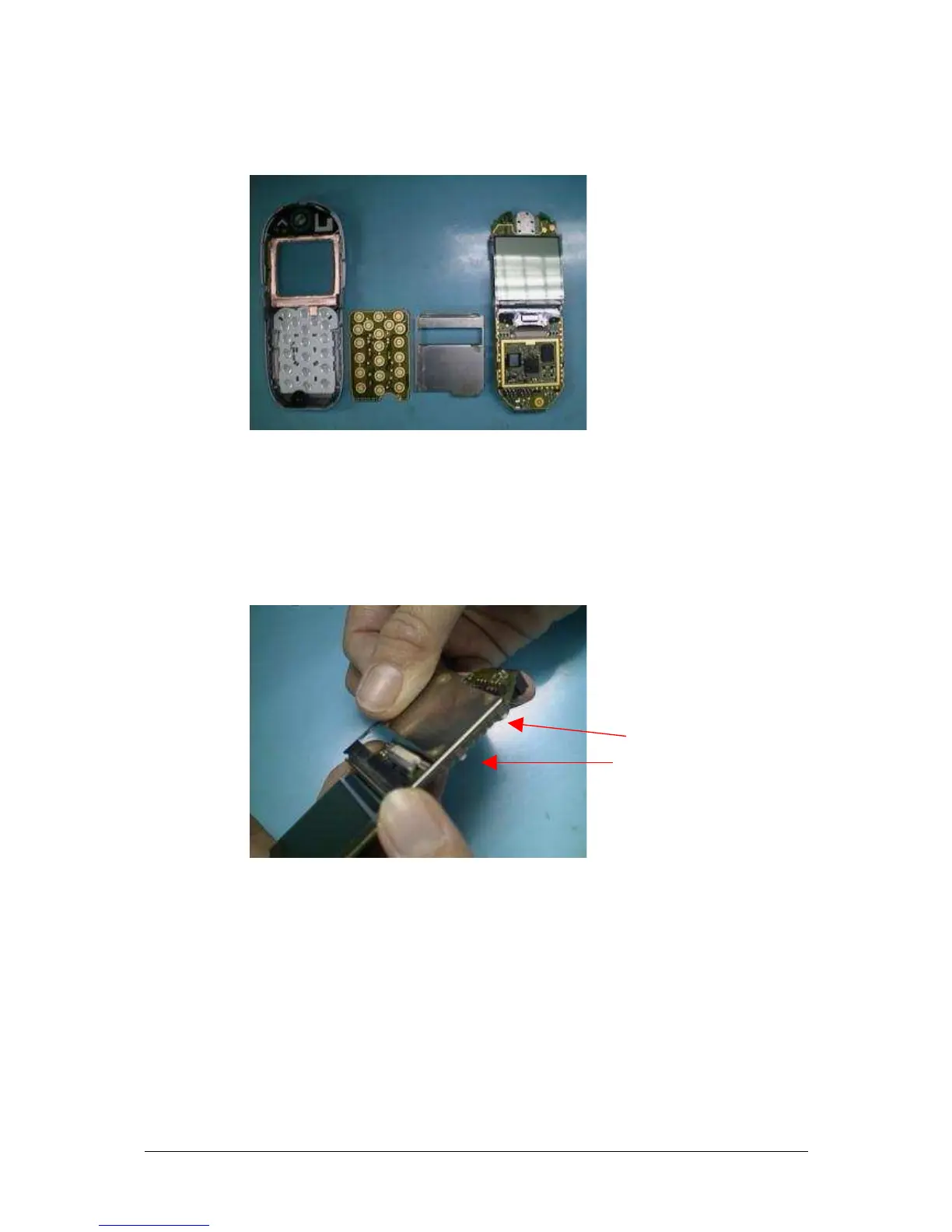

Photo 2.10 Keypad PCB and Shield removing
Remove the Keypad PCB from the Upper casing and the shielding from the RF Board as
illustrated in PHOTO 2.10
STEP 7
Photo 2.11 Shielding removing
The latch at the side of the shield can be separated from the RF board using a tweezer or finger
as illustrated in PHOTO 2.11
