50
Internal Accessories
Remote Close Assembly

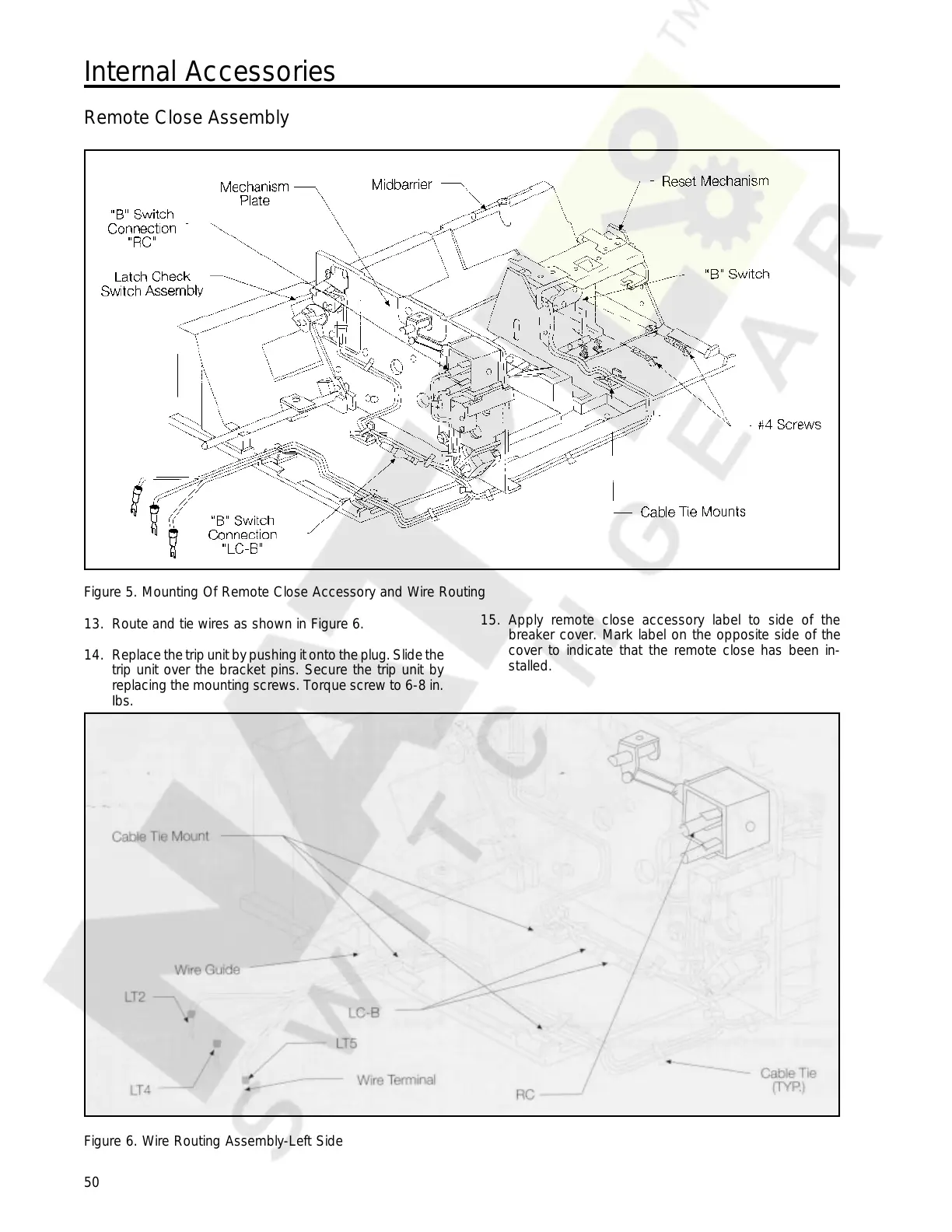

Figure 5. Mounting Of Remote Close Accessory and Wire Routing
13. Route and tie wires as shown in Figure 6.
14. Replace the trip unit by pushing it onto the plug. Slide the
trip unit over the bracket pins. Secure the trip unit by
replacing the mounting screws. Torque screw to 6-8 in.
Ibs.
15. Apply remote close accessory label to side of the
breaker cover. Mark label on the opposite side of the
cover to indicate that the remote close has been in-
stalled.
Figure 6. Wire Routing Assembly-Left Side
Courtesy of NationalSwitchgear.com
