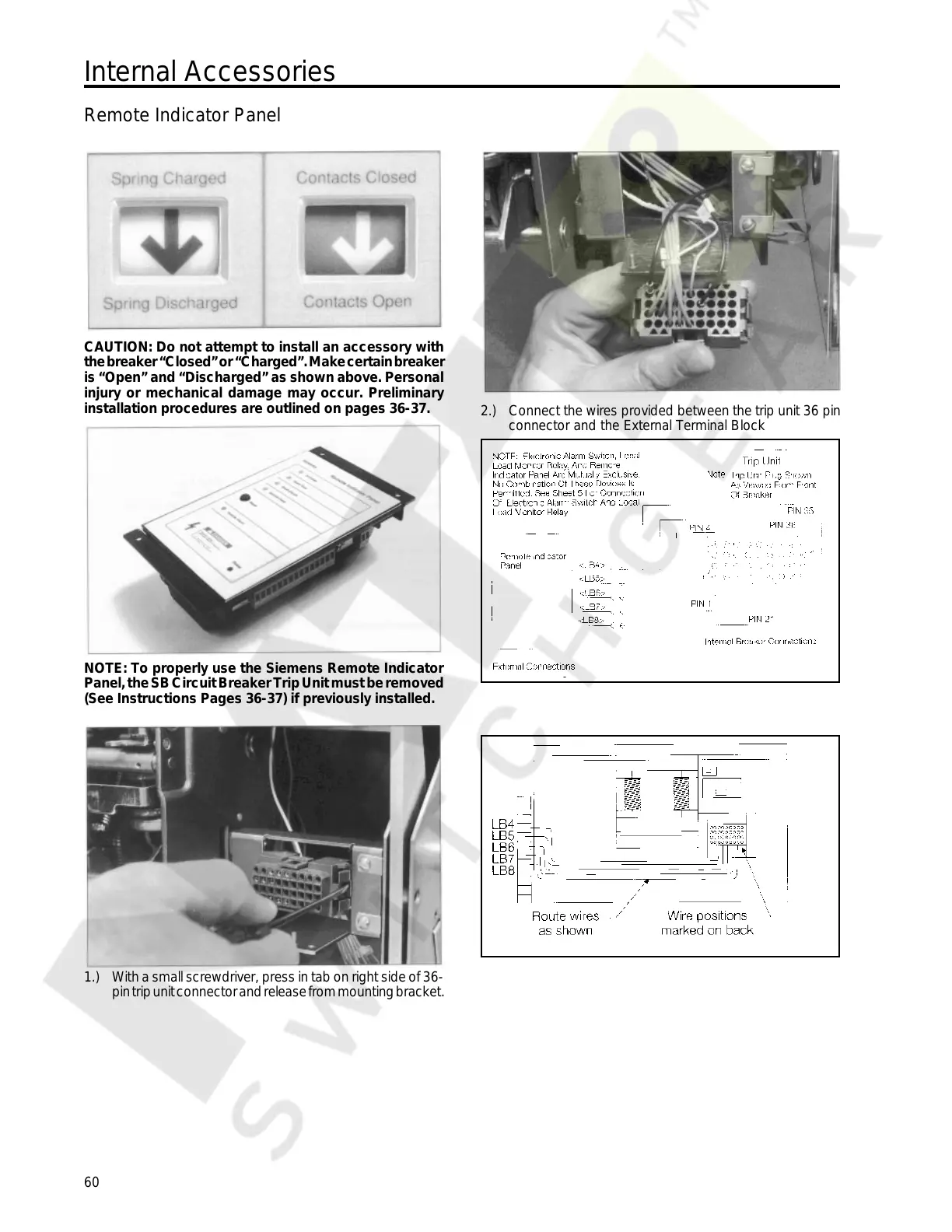

Internal Accessories
Remote Indicator Panel
CAUTION: Do not attempt to install an accessory with
the breaker “Closed” or “Charged”. Make certain breaker
is “Open” and “Discharged” as shown above. Personal
injury or mechanical damage may occur. Preliminary
installation procedures are outlined on pages 36-37.
NOTE: To properly use the Siemens Remote Indicator
Panel, the SB Circuit Breaker Trip Unit must be removed
(See Instructions Pages 36-37) if previously installed.
1.) With a small screwdriver, press in tab on right side of 36-
pin trip unit connector and release from mounting bracket.
2.) Connect the wires provided between the trip unit 36 pin
connector and the External Terminal Block
