5.4 Antenna connector

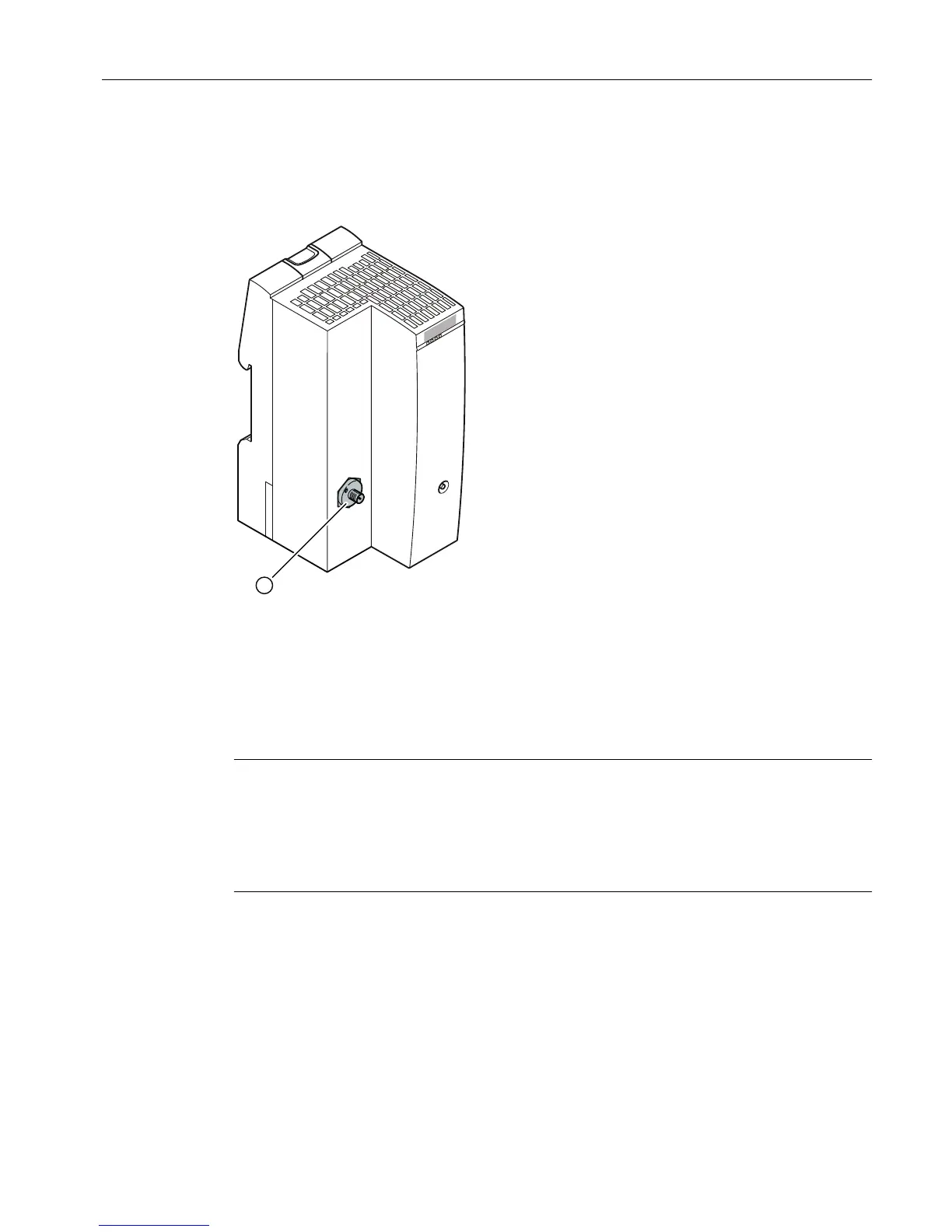

The SCALANCE W760/W720 has an antenna connector R1 A1 of the type R-SMA located on
the front of the device (position ①).
Procedure
Follow the steps below to connect a cable for an external antenna to a SCALANCE W760/720:
1. Insert the connector on the antenna cable into the R-SMA socket R1 A1 (position ①) and
tighten the retainer nut on the socket (key size SW8, tightening torque 1 Nm).
Note
Cabinet installation
When installing the SCALANCE W760/720 in a cabinet, you need to use a detached antenna.
Suitable flexible connecting cables for a connection between SCALANCE W760/720 and a
detached antenna are available from SIMATIC NET. You will find detailed information in the
following section.
Connection
5.4 Antenna connector
SCALANCE W760/W720
Operating Instructions, 09/2017, C79000-G8976-C322-08 35
