Description of the device
4.3 Components of the product
SCALANCE W774-1 / W734-1
Operating Instructions, 03/2022, C79000-G8976-C325-15
21

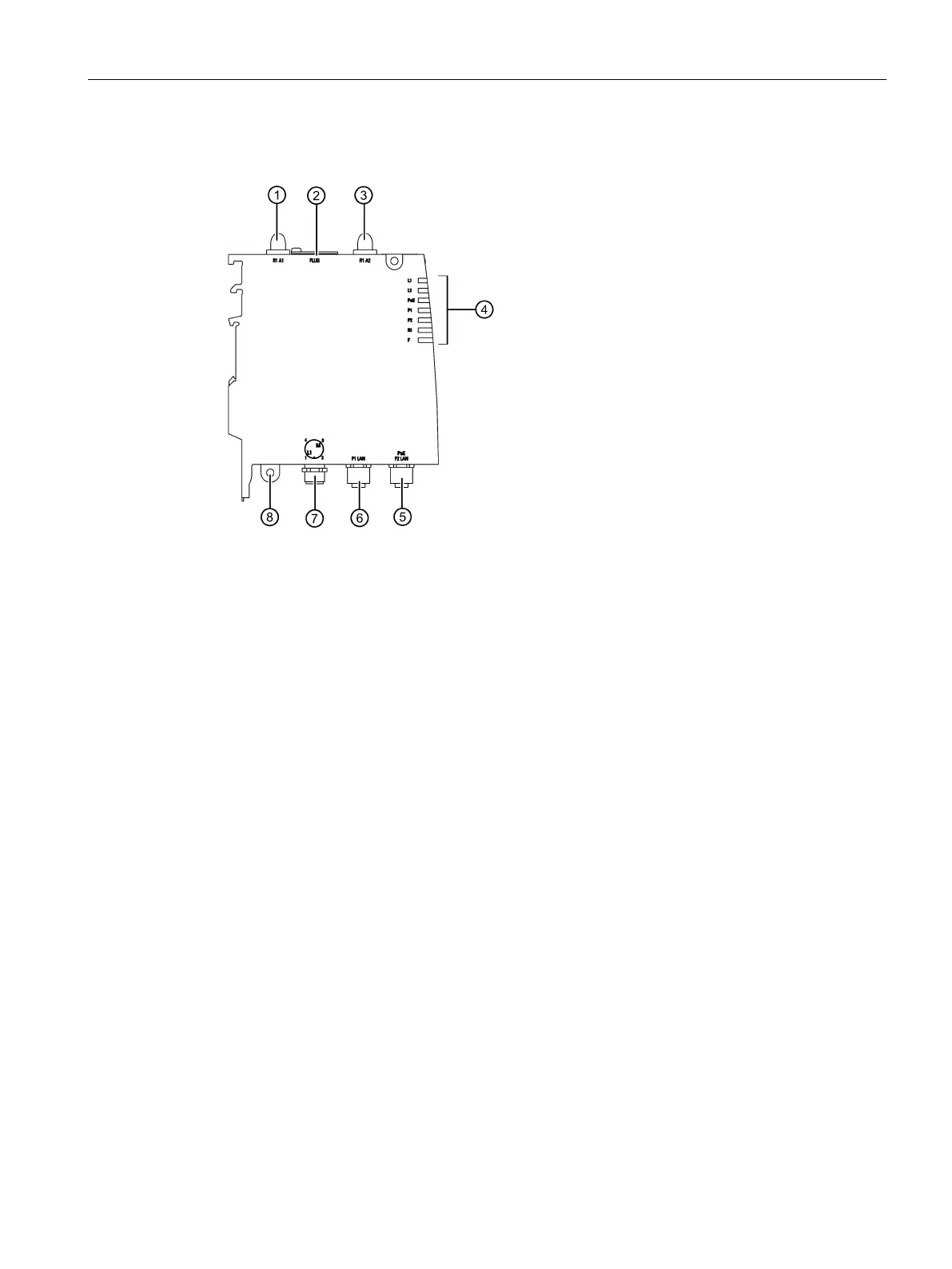

4.2.2 SCALANCE W774-1 M12
①
Antenna connector R1A1
②
PLUG slot and Reset button
③
Antenna connector R1A2
④
LED display
⑤
Ethernet connector P2 (PoE capability)
⑥
Ethernet connector P1
⑦
Connector for power supply
⑧
Eye for grounding (diameter 4.5 mm) and wall mounting
4.3 Components of the product
The following components are supplied with the product:
• One SCALANCE W device
• Two protective caps for the antenna sockets
• One screw for mounting on an S7-300 standard rail or S7-1500 standard rail
• One product DVD
In addition with the M12 device version
• Three protective caps for the M12 sockets
In addition with the RJ45 device version:
• One 4-pin terminal block for the power supply
Please check that the consignment you have received is complete. If the consignment is
incomplete, contact your supplier or your local Siemens office.
