Connection
6.4 Antenna connectors
SCALANCE W774-1 / W734-1
54 Operating Instructions, 03/2022, C79000-G8976-C325-15
6.4 Antenna connectors

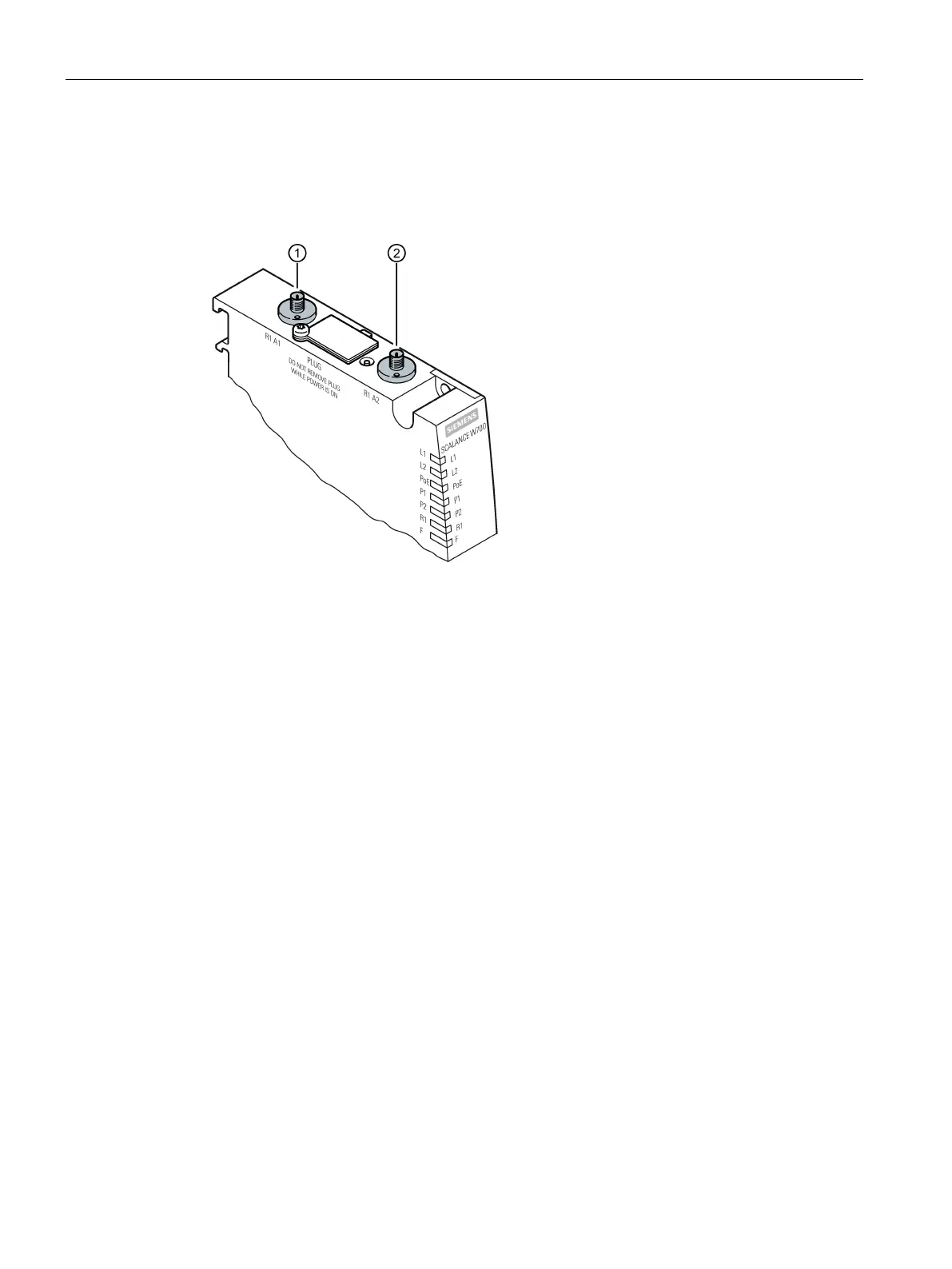

The SCALANCE W774/W734 has two antenna connectors of the type R-SMA located on
the top of the device.
①
Antenna connector R1 A1
②
Antenna connector R1 A2
