11.1 Dimension drawing
SCALANCE X-300
282 Operating Instructions, 02/2012, A5E01113043-12
Large design

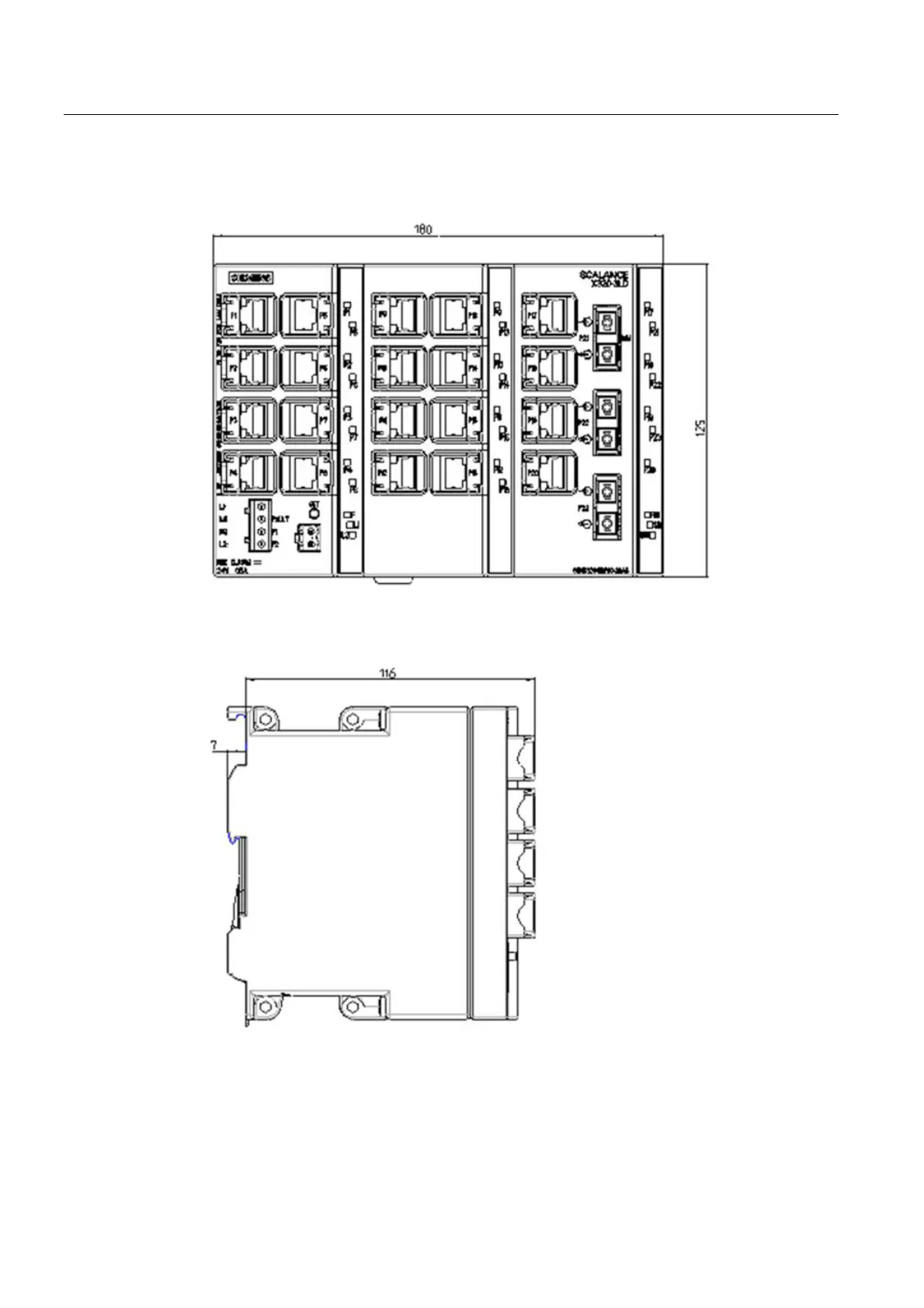

Figure 11-5 Large design dimension drawing Part 1 (example used here SCALANCE X320-3LD FE)
Figure 11-6 Large design dimension drawing Part 2 (example used here SCALANCE X320-3LD FE)
