11.9 XR-300M PoE dimension drawings
SCALANCE X-300
304 Operating Instructions, 02/2012, A5E01113043-12
11.9 XR-300M PoE dimension drawings
All dimensions in the drawings are in millimeters.

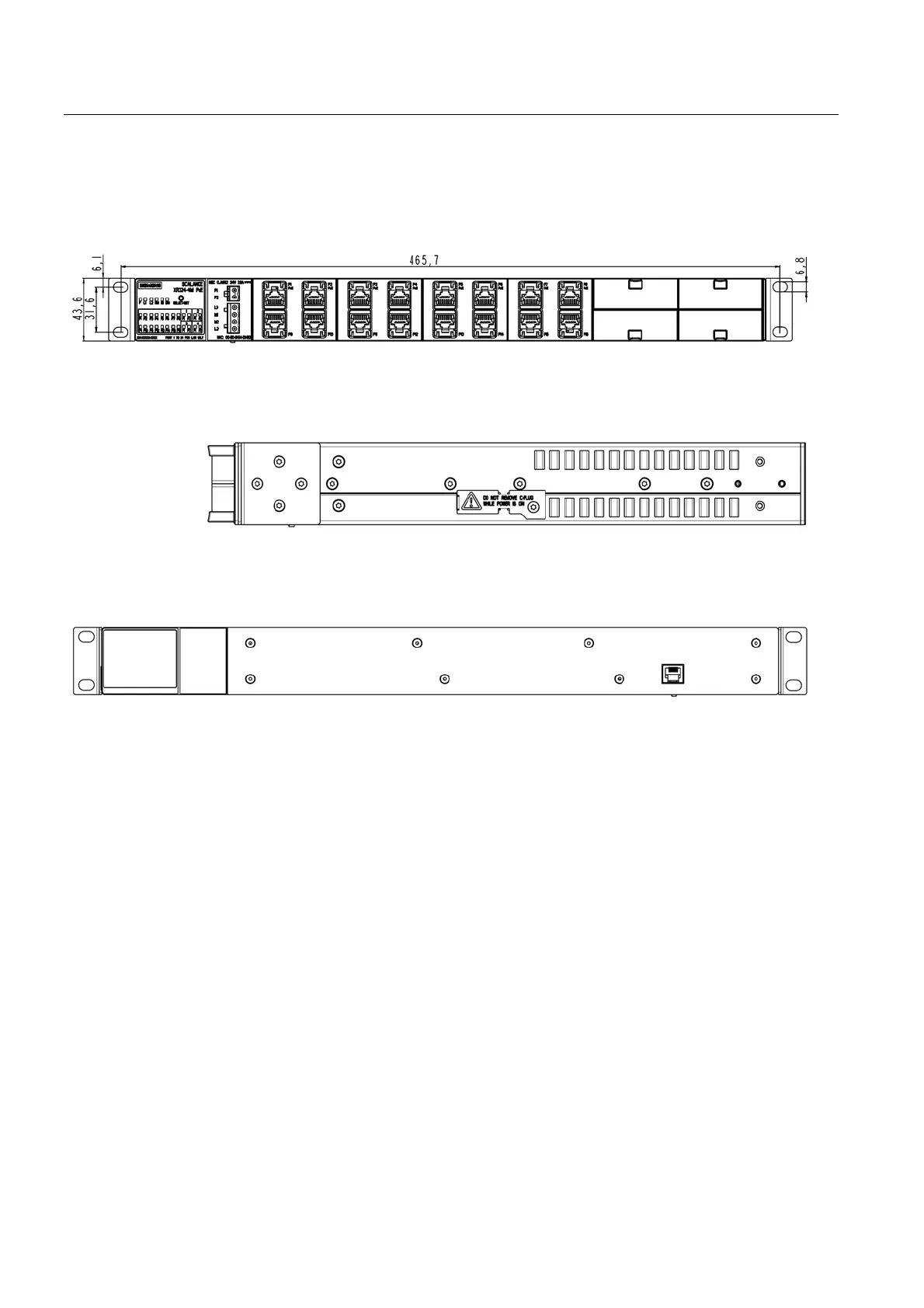

Figure 11-32 XR324-4M PoE: Front view
Figure 11-33 XR324-4M PoE: Side view
Figure 11-34 XR324-4M PoE: Rear
