11.3 XR-300M dimension drawings
SCALANCE X-300
286 Operating Instructions, 02/2012, A5E01113043-12
11.3 XR-300M dimension drawings
Note
The followi
ng dimension drawings are available for the XR-300M product group.

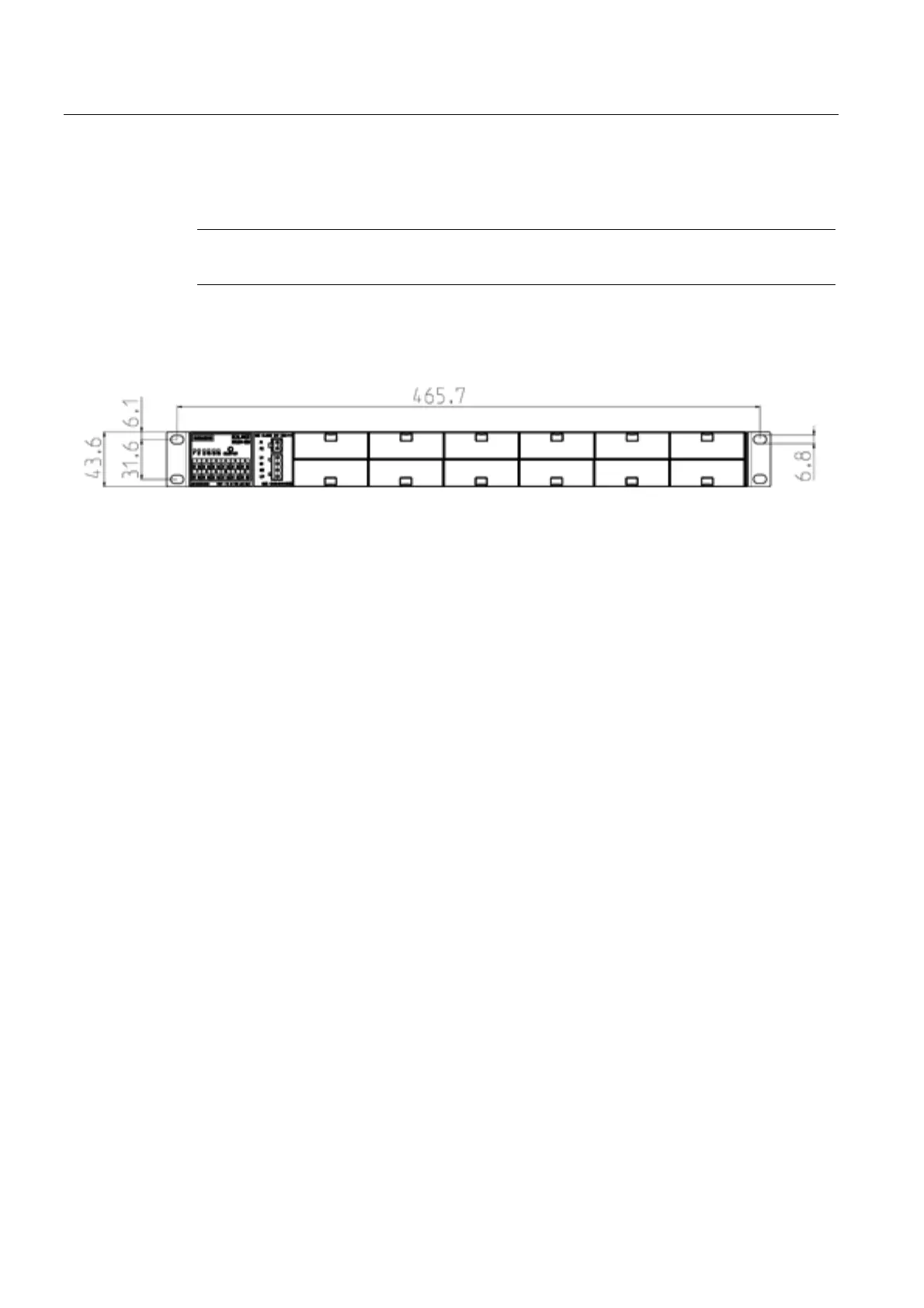

Figure 11-10 Front view of the XR324-12M
