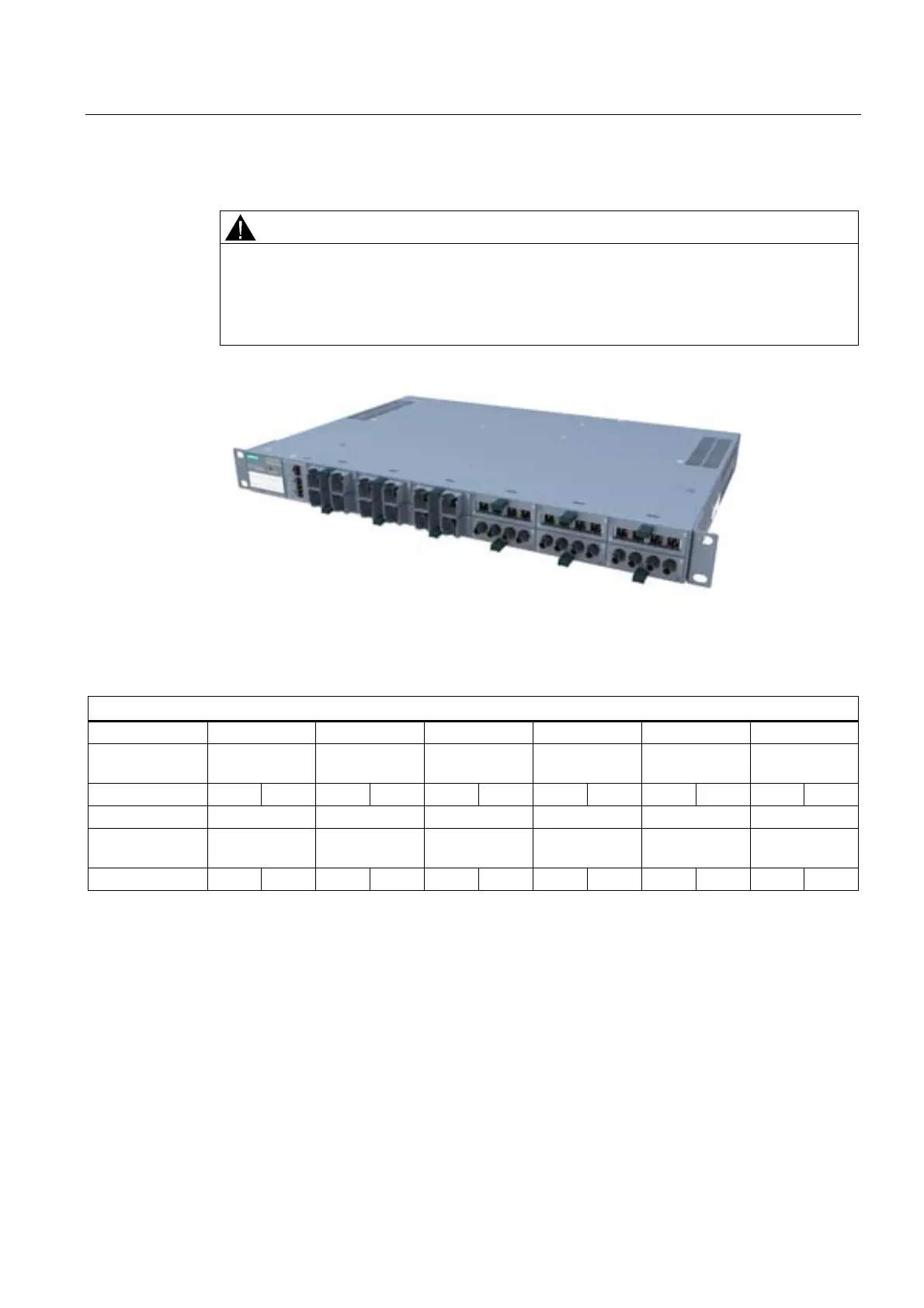

Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
63
Example of a configuration
CAUTION
Use only approved media modules in the module slots
The connection of end devices or other network segments does not depend on the module
slot, but rather on the selected media module.
Refer to the section Media module installation in slot.
Figure 4-16 SCALANCE XR324-12M with MM900
Slot number S1 S2 S3 S4 S5 S6
Media
modules used
MM992-2CUC MM992-2CUC MM992-2CUC MM991-2 (SC) MM991-2 (SC) MM991-2 (SC)
Port number P1 P2 P1 P2 P1 P2 P1 P2 P1 P2 P1 P2
Slot number S7 S8 S9 S10 S11 S12
Media
modules used
MM992-2CUC MM992-2CUC MM992-2CUC MM991-2 MM991-2 MM991-2
Port number P1 P2 P1 P2 P1 P2 P1 P2 P1 P2 P1 P2
