Connecting
5.6 Out-of-band interface
SCALANCE XR-500
Operating Instructions, 05/2017, A5E03275845-11
69
Position

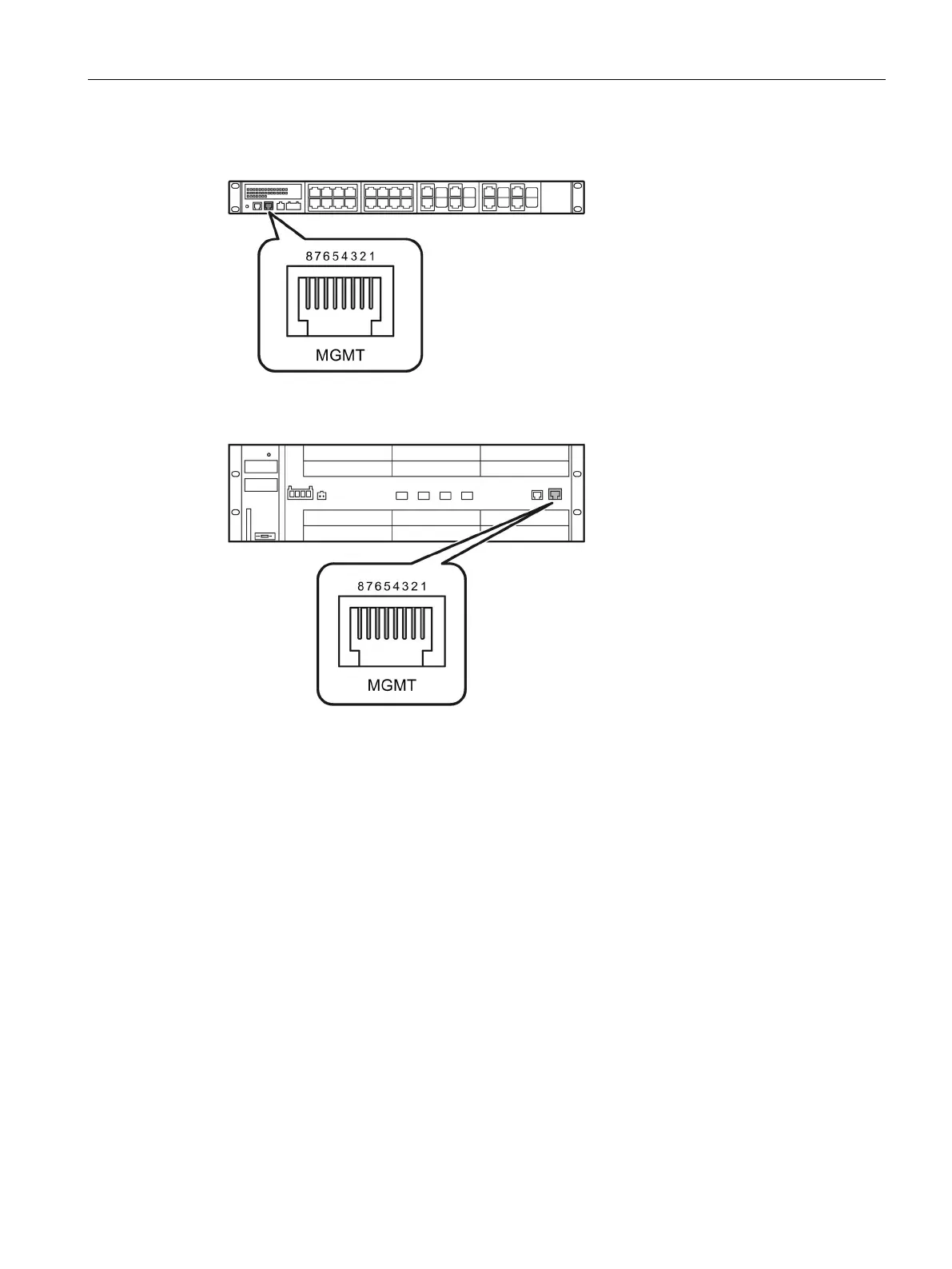

Figure 5-14 Position of the out-of-band interface on a SCALANCE XR524-8C SCALANCE XR526-8C
is analogous.
Figure 5-15 Position of the out-of-band interface on a SCALANCE XR552-12M. SCALANCE XR528-
6M is analogous.
