Dimension drawings
9.4 Mounting brackets for use on ships
SCALANCE XR-500
Operating Instructions, 05/2017, A5E03275845-11
99

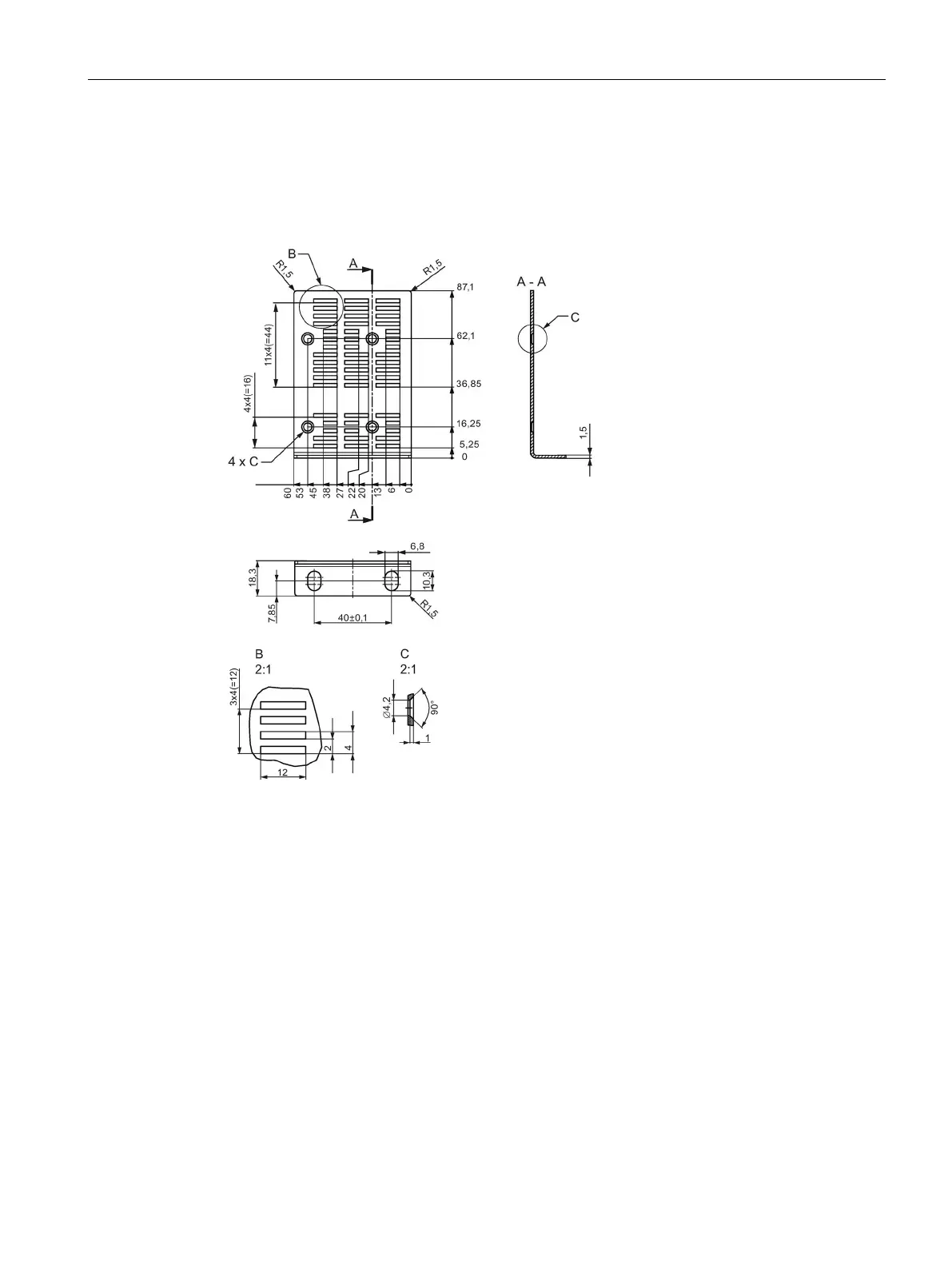

Mounting bracket for a SCALANCE XR528-6M
Mounting bracket left
View from the front, top, and side (left)
Dimensions are specified in mm.
