Siemens SED2-4/35B - Tightening Torque for Connection Terminals; Cross-Sections for Power and Motor Cables

34/126
Siemens Building Technologies SED2 variable speed drives CM1U5192en
HVAC Products Electrical installation 01.2002
PE L1 L2 L3
L1
DC+
B
DC+
B
UV
L2 L3 W
DC- B- DC+
R+
View without cable entry guide
and without lower terminal connection plate
Mains voltage inputs
EMC filter
5192Z09en
4.3.6 Tightening torque for connection terminals
Frame size
ABCD E F
Tightening torque
Nm 1.1 1.5 2.25 10 (max.) 10 (max.) 50
4.3.7 Cross-sections for power and motor cables
Input voltage range 200 V – 240 VAC, 3-phase
Output
rating
kW (hp)
Min. cross-
section of
supply cable
mm
2
(AWG)
Max. cross-
section of supply
cable
mm
2
(AWG)
Min. cross-
section of motor
cable
mm
2
(AWG)
Max. cross-
section of motor
cable
mm
2
(AWG)
0.37 (0.5) 1 (17) 2.5 (13) 1 (17) 2.5 (13)
0.55 (0.75)
1 (17) 2.5 (13) 1 (17) 2.5 (13)
0.75 (1) 1 (17) 2.5 (13) 1 (17) 2.5 (13)
1.1 (1.5) 1 (17) 6 (9) 1 (17) 6 (9)
1.5 (2)
1.5 (15) 6 (9) 1 (17) 6 (9)
2.2 (3) 2.5 (13) 6 (9) 1 (17) 6 (9)
3 (4) 4 (11) 10 (7) 1.5 (15) 10 (7)
4(5)
4 (11) 10 (7) 4 (11) 10 (7)
5.5 (7.5) 4 (11) 10 (7) 4 (11) 10 (7)
7.5 (10) 10 (7) 35 (2) 10 (7) 35 (2)

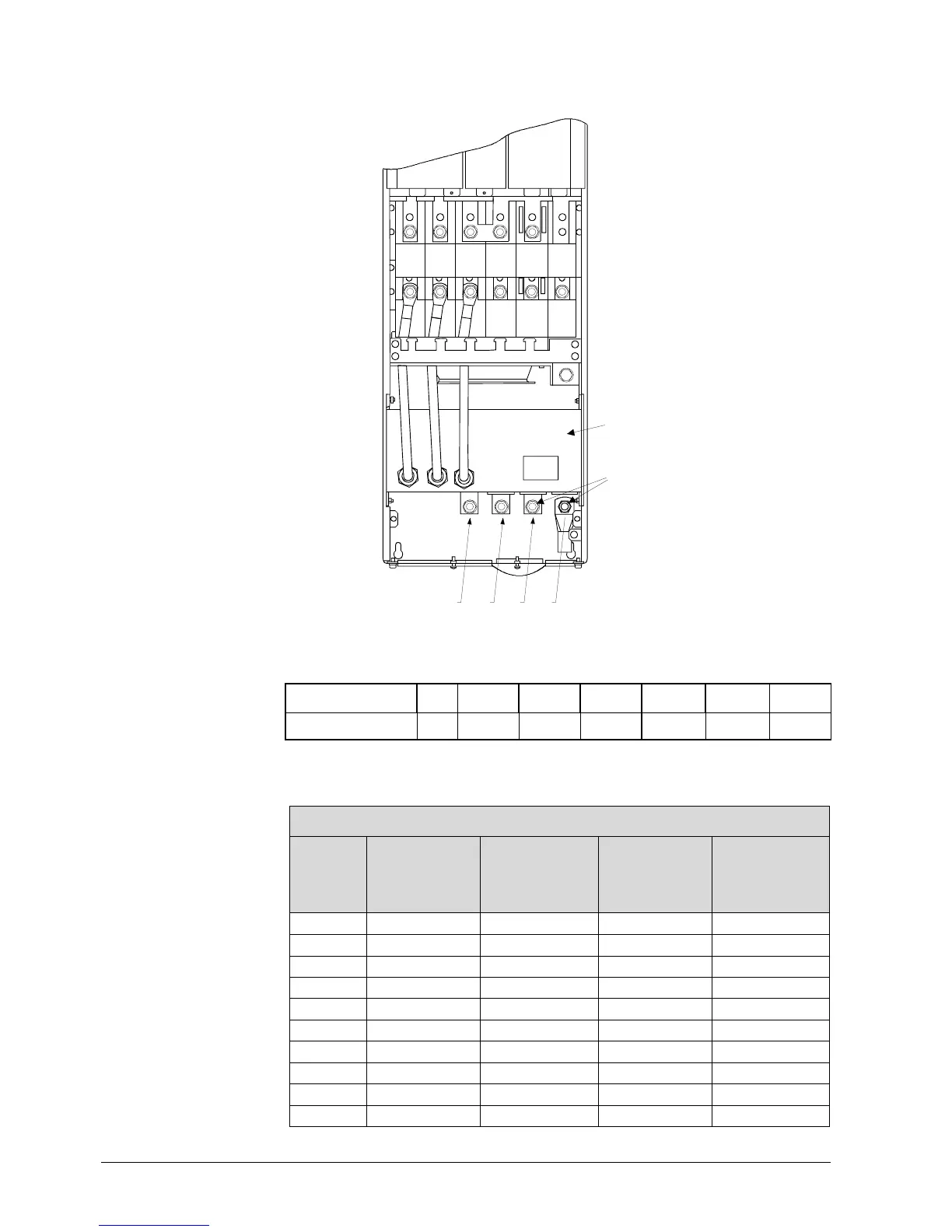

Connection terminals of
SED2 frame size F, IP20,
with built-in EMC filter
