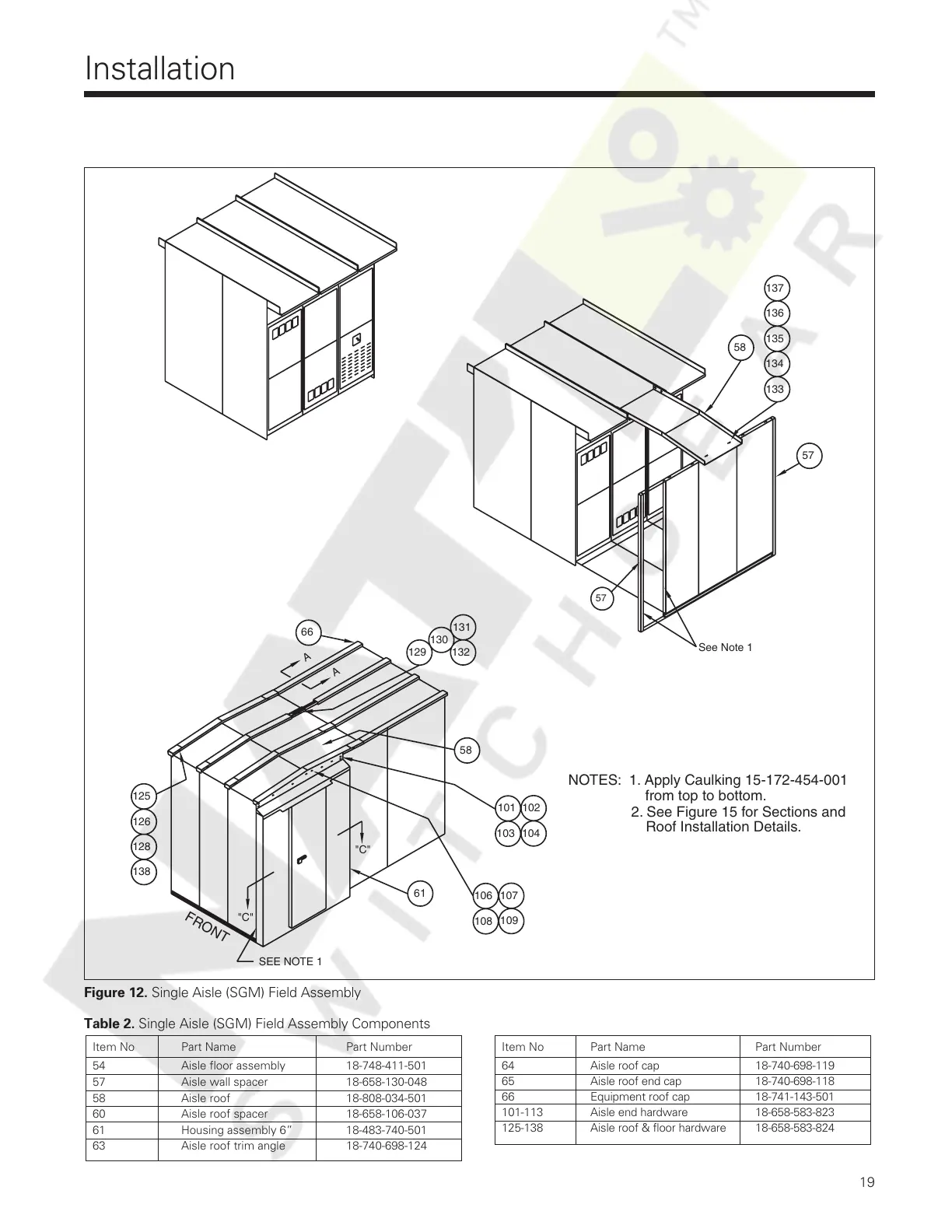

Figure 12. Single Aisle (SGM) Field Assembly
Table 2. Single Aisle (SGM) Field Assembly Components
Item No Part Name Part Number
64 Aisle roof cap 18-740-698-119
65 Aisle roof end cap 18-740-698-118
66 Equipment roof cap 18-741-143-501
101-113 Aisle end hardware 18-658-583-823
125-138 Aisle roof & floor hardware 18-658-583-824
Item No Part Name Part Number
54 Aisle floor assembly 18-748-411-501
57 Aisle wall spacer 18-658-130-048
58 Aisle roof 18-808-034-501
60 Aisle roof spacer 18-658-106-037
61 Housing assembly 6” 18-483-740-501
63 Aisle roof trim angle 18-740-698-124
See Note 1
NOTES: 1. Appl
y
Caulkin
g
15-172-454-001
A
A
"C"
"C"
FRONT
SEE NOTE 1
58
133
134
135
136
137
57
57
129
130
131
132
125
126
128
138
66
61
58
106
107
109
108
104
102
101
103
Installation
19
NOTES: 1. Apply Caulking 15-172-454-001
from top to bottom.
2. See Figure 15 for Sections and
Roof Installation Details.
